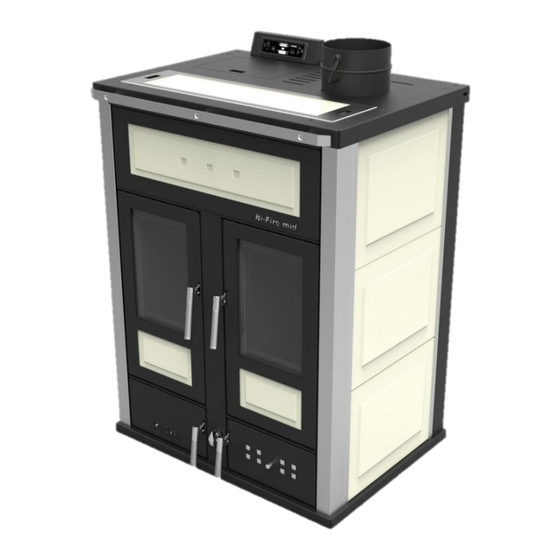

- Page 1 BI-FIRE MID ENGLISH Pellet and Wood boiler stove INSTALLATION, USE AND MAINTENANCE, USEFUL TIPS...
- Page 3 DoP/KLOVER-021 Identification number : BFM Model and/or lot no. and/or serial no. (Art.11-4) : BI-FIRE MID Home heating appliance fed with wood pellets Intended use of the product according to the relevant and wood logs which can also produce domestic...
-
Page 4: Table Of Contents
CONTENTS CONTENTS ..................................3 INTRODUCTION ................................. 1 ..........................1 MPORTANT SECURITY INSTRUCTIONS ................................ 1 RECAUTIONS ............................... 1 ESTINATION OF USE ............................2 NSTALLATION EGULATIONS ................................ 2 EALTH AND AFETY THE THERMO STOVE, THE PELLETS AND WOOD ......................2 ............................2 HERMO STOVE OMPONENTS .................................. - Page 5 WARRANTY CONDITIONS .............................. 38 Dear Customer, First of all we would like to thank you for choosing a “KLOVER” product and we hope you will be satisfied with this product. Please read the warranty certificate carefully. This is found on the last page of this User Guide. Please contact the authorised Technical Assistance Centre (TAC) for the initial start-up of your stove and to validate the warranty.
-
Page 6: Introduction
Safety Standards in force. They will be responsible for the definitive installation of the machinery and its consequent proper functioning. KLOVER Srl will not be held responsible if these precautions are not respected. - During installation of the appliance all local regulations, included those referring to National and European Standards, must be followed. -
Page 7: Installation Regulations
Approved Document J. Health and Safety Care must be taken when installing a Klover pellet stove to ensure that the requirements of the Health and Safety at Work Act are met. Handling Adequate facilities must be available for loading, unloading and site handling the appliance bearing in mind the weight of the appliance. -
Page 8: Contents
BI-FIRE MID PELLET AND WOOD BOILER STOVE EN - Rev. 1.8 LEFT UPPER VIEW INSPECTION LID HEATING SYSTEM OPENING KNOB LOADING COCK SICURO TOP PALLET SIDE FLUE GAS PASS CLEANING KNOB BOILER BODY LOADING COCK WOOD SIDE COMBUSTION REGULATOR MASTER SWITCH, POWER... - Page 9 BI-FIRE MID PELLET AND WOOD BOILER STOVE EN - Rev. 1.8 DOMESTIC HOT WATER DOMESTIC COLD WATER FLOW CONNECTION BOILING OUTLET (ONLY ON MOD. INLET (ONLY ON MOD. WITH DISCHARGE WITH SET-UP) WITH SET-UP) CHECK VALVE CONNECTION + SYSTEM LOAD AND...
-
Page 10: Clearance
BI-FIRE MID PELLET AND WOOD BOILER STOVE EN - Rev. 1.8 Clearance... -
Page 11: Connections Data Sheet
BI-FIRE MID PELLET AND WOOD BOILER STOVE EN - Rev. 1.8 Connections data sheet REAR VIEW M = Ø 3/4" F SYSTEM DELIVERY R = Ø 3/4" M SYSTEM RETURN C = Ø 14 mm DOMESTIC HOT WATER OUTLET (on prepared models only) F = Ø... -
Page 12: Technical Features
BI-FIRE MID PELLET AND WOOD BOILER STOVE EN - Rev. 1.8 Technical features Total nominal heat input kW (Kcal/h) 33,2 (28.600) Pellet nominal heat input kW (Kcal/h) 16,5 (14.200) Wood nominal heat input kW (Kcal/h) 16,7 (14.400) Total nominal thermal output kW (Kcal/h) 27,7 (23.800) -
Page 13: Wood Features
BI-FIRE MID PELLET AND WOOD BOILER STOVE EN - Rev. 1.8 - If the pellet is poured into a container of water it will tend to sink if it is a quality pellet, while if it is not, it will tend to float;... -
Page 14: Requirements Of The Place Of Installation
BI-FIRE MID PELLET AND WOOD BOILER STOVE EN - Rev. 1.8 REQUIREMENTS OF THE PLACE OF INSTALLATION Positioning The initial phase for better installation of the thermo stove is that of identifying its best location. Evaluate the following elements to do this: Possibility of creating an external air vent;... -
Page 15: Flue And Connection To The Same
BI-FIRE MID PELLET AND WOOD BOILER STOVE EN - Rev. 1.8 If it not possible to realise the external air vent in the same room where the thermo stove is installed, this hole can be made in an adjoining room as long as this room communicates permanently, by means of a transit hole (20cm minimum diameter). -
Page 16: Chimney
BI-FIRE MID PELLET AND WOOD BOILER STOVE EN - Rev. 1.8 For the assembly of the flue gas pipes (which go from the appliance to the flue inlet) elements of non- combustible material must be used, which are suitable for resisting combustion products and their condensation;... -
Page 17: Connections
During the final wiring of the circuit, only use components with a suitable electric protection rating. KLOVER srl declines all responsibility for injury to persons, animals or damage to objects deriving from the failure to connect the network to earth and failure to comply with the IEC Standards. -
Page 18: Control Of Any 3-Way Valve For The Dhw Circuit
BI-FIRE MID PELLET AND WOOD BOILER STOVE EN - Rev. 1.8 coupled boiler when the thermo stove heating pump starts. In this way, there will never be two boilers functioning simultaneously in the same system. The coupled boiler will always be able to be used for the production of domestic hot water. -
Page 19: Hydraulic Connection
BI-FIRE MID PELLET AND WOOD BOILER STOVE EN - Rev. 1.8 Hydraulic connection The hydraulic connections must be made in a rational way using the connections on the thermo stove template. To ease connection of the pipes, we have prepared all hydraulic connections on the rear, leaving space to make the connections easily. -
Page 20: Pellet Loading And Connection To The Electric Network
BI-FIRE MID PELLET AND WOOD BOILER STOVE EN - Rev. 1.8 Pellet loading and connection to the electric network Perform the following operations: - Fill the pellet tank; for commissioning it is recommended to pour a handful of pellets into the brazier in order to prevent the time necessary for filling the entire screw feed channel (this operation must be performed every time the thermo stove remains without pellets);... -
Page 21: The Buttons
BI-FIRE MID PELLET AND WOOD BOILER STOVE EN - Rev. 1.8 Resistance LED State/power display Accesa ON Parameter name Data receipt LED Thermostat LED remote control Open environment Increase Chrono LED Screw feed Increase of the temperature LED ON power °C... -
Page 22: Display During The Work Phase
BI-FIRE MID PELLET AND WOOD BOILER STOVE EN - Rev. 1.8 Chrono active LED The LED is on when the UT1 parameter inside the menu is different to OFF, thus setting the weekly and daily programming; Room Thermostat LED The LED is on when the relative inlet is open;... -
Page 23: Ignition Of The Thermo Stove (Wood Side)
BI-FIRE MID PELLET AND WOOD BOILER STOVE EN - Rev. 1.8 - it switches on with the chrono-thermostat. ATTENTION: To set “Pell on” or “Pell off” press keys 5 or 6 and then choose the desired function with key 4, with the flashing words in the lower display . -
Page 24: Boiling
BI-FIRE MID PELLET AND WOOD BOILER STOVE EN - Rev. 1.8 Boiling If for any reason (power cut, pump fault, too much wood etc...), the water content in the thermo stove should reach boiling point, immediately follow the operations below: - Open a domestic hot water cock and leave the water to run until the temperature of the thermo stove lowers (only mod. -
Page 25: Thermo Stove Working Mode (Pellet Side)
BI-FIRE MID PELLET AND WOOD BOILER STOVE EN - Rev. 1.8 Pressing button 4 (ON/OFF) for a few seconds allows to start the thermo stove ignition cycle. After a few seconds the display shows “Fun ASP”, the flue gas intake device switches on and, after 10 seconds, the ignition resistance switches on along with the motor reducer that loads the pellets. -
Page 26: Modifying Set Temperature
BI-FIRE MID PELLET AND WOOD BOILER STOVE EN - Rev. 1.8 Modifying set temperature The value of the maximum temperature in the boiler can be varied at any time by the user. To modify it enter in SET temperature by pressing button 3 (SET and then with buttons 1 and 2 select the desired value (do this when the stove works at a power from 1 to 5). - Page 27 BI-FIRE MID PELLET AND WOOD BOILER STOVE EN - Rev. 1.8 Find all of the parameters in detail below: UT01 The parameter allows to set the current day of the week, select functioning day by day (weekly mode) or disconnect programming.
-
Page 28: Safety Devices
BI-FIRE MID PELLET AND WOOD BOILER STOVE EN - Rev. 1.8 UT11 - UT12 Parameters to respectively set the switch-on and switch-off time of PROGRAM 3. Their setting is active whenever the UT01 parameter is set in weekly mode. UT13 This parameter is active and assumes meaning when the UT01 parameter is set in weekly mode. -
Page 29: Useful Info
BI-FIRE MID PELLET AND WOOD BOILER STOVE EN - Rev. 1.8 The manual-rearm thermostat directly removes the power supply from the motor reducer making the thermo stove switch-off. In the event of over-temperature, the thermostat rearm is manual. 280°C FUMES OVER-TEMPERATURE SAFETY The thermo stove is equipped with a fumes probe inserted near to the fumes intake (left side), which detects the temperature of the outlet fumes. -
Page 30: Cleaning And Maintenance
BI-FIRE MID PELLET AND WOOD BOILER STOVE EN - Rev. 1.8 - It is normal for the appliance to emit a smell of paint during its first few days of operation. We recommend ventilating the installation room during the initial start-up. For the first few days of operation we also recommend that you set the appliance to near-maximum level. - Page 31 BI-FIRE MID PELLET AND WOOD BOILER STOVE EN - Rev. 1.8 Clean the brazier from combustion residues, by removing it from its seat. Use a suction device to remove the ash that is deposited under the brazier. Empty the ash drawer.
- Page 32 BI-FIRE MID PELLET AND WOOD BOILER STOVE EN - Rev. 1.8 Remove the flame trap inside the combustion chamber. Scrape the flame trap and release any blocked holes. It is also recommended to scrape the internal walls of the combustion chamber using a small spatula, to remove any deposits.
-
Page 33: Routine Cleaning (Wood Side)
BI-FIRE MID PELLET AND WOOD BOILER STOVE EN - Rev. 1.8 Routine cleaning (WOOD SIDE) It is necessary to empty the wood side ash box periodically. Open the hatch under the wood side, extract the ash drawer and then empty it. - Page 34 BI-FIRE MID PELLET AND WOOD BOILER STOVE EN - Rev. 1.8 Do not force the flue gas extractor flaps with the ash vacuum device hose. Use a suitable suction device to remove the internal deposits and then re-position the base and the ash drawer.
-
Page 35: Extraordinary Cleaning (Wood Side)
BI-FIRE MID PELLET AND WOOD BOILER STOVE EN - Rev. 1.8 Extraordinary cleaning (WOOD SIDE) To be performed at least twice a season. Carry out routine cleaning; With the supplied brush clean the elements on the combustion chamber. These can be accessed through the combustion chamber. - Page 36 BI-FIRE MID PELLET AND WOOD BOILER STOVE EN - Rev. 1.8 After having removed the upper left angle, slide the three lateral majolicas upwards (or the painted steel side). Unscrews the stainless steel TEE inspection cap. Thoroughly clean the entire stainless steel pipe behind the thermo stove using the brush and re-mount the stainless...
-
Page 37: Cleaning The Ceramic Glass
BI-FIRE MID PELLET AND WOOD BOILER STOVE EN - Rev. 1.8 After having loosened the two bolts, remove the lateral flue gas pass inspection outlet (pellet side). Clean any obstructions in the lateral fumes passage and re-mount the inspection outlet. -
Page 38: Maintenance Of The Boiler Unit
ATTENTION!!! NON-USE AND OR AN INCORRECT DOSAGE OF LONG LIFE WILL INVALIDATE THE WARRANTY ON THE BOILER UNIT. LONG LIFE gas been designed and tested on SICURO TOP products; KLOVER declines all liability arising from the use of LONG LIFE in products or applications other than those indicated. -
Page 39: Pcb Parameters
The following parameters are already stored during the testing of the appliance directly in the factory; these parameters are the result of special tests using several types of pellets and must not be changed without the authorisation of Klover srl so as not to impair the operation of the appliance. -
Page 40: Main Wording On The Display
BI-FIRE MID PELLET AND WOOD BOILER STOVE EN - Rev. 1.8 MAIN WORDING ON THE DISPLAY DISPLAY DESCRIPTION ROOM THERMOSTAT CONTACT OPEN toFF FLUE GAS TEMPERATURE TOO HIGH Fumi The thermo stove automatically slows the power until the flue gas temperature is lowered. Clean the internal “flue gas pass”... -
Page 41: Wiring Diagram
BI-FIRE MID PELLET AND WOOD BOILER STOVE EN - Rev. 1.8 WIRING DIAGRAM EXPANSION BOARD I055 New serial connection FOR 3-WAY VALVE (OPTIONAL) EXPANSION BOARD I055 CONNECTED TO I023 WITH CONNECTORS CN10 AND CN12 RECIRCULATION PUMP connector to CN13 EARTH... -
Page 42: What Happens If
BI-FIRE MID PELLET AND WOOD BOILER STOVE EN - Rev. 1.8 WHAT HAPPENS IF..the thermo stove does not switch on In case of no ignition, the “NO FIRE” alarm is displayed. Hold button 4 (switch on/off) for a few seconds to restore the thermo stove to standard conditions (remove the alarm). -
Page 43: Warranty Conditions
- A copy of the initial start-up report issued by the Authorised Technical Assistance Centre must be preserved along with the proof of purchase receipt. - KLOVER s.r.l. disclaims any liability for accidents resulting from failure to comply with the instructions contained the user and maintenance manual attached to the appliance. - Page 44 Cod. CS.IST.BFM-EN KLOVER Srl Via A. Volta, 8 37047 San Bonifacio (VR) P.IVA 02324280235 www.klover.it...
