Page 1

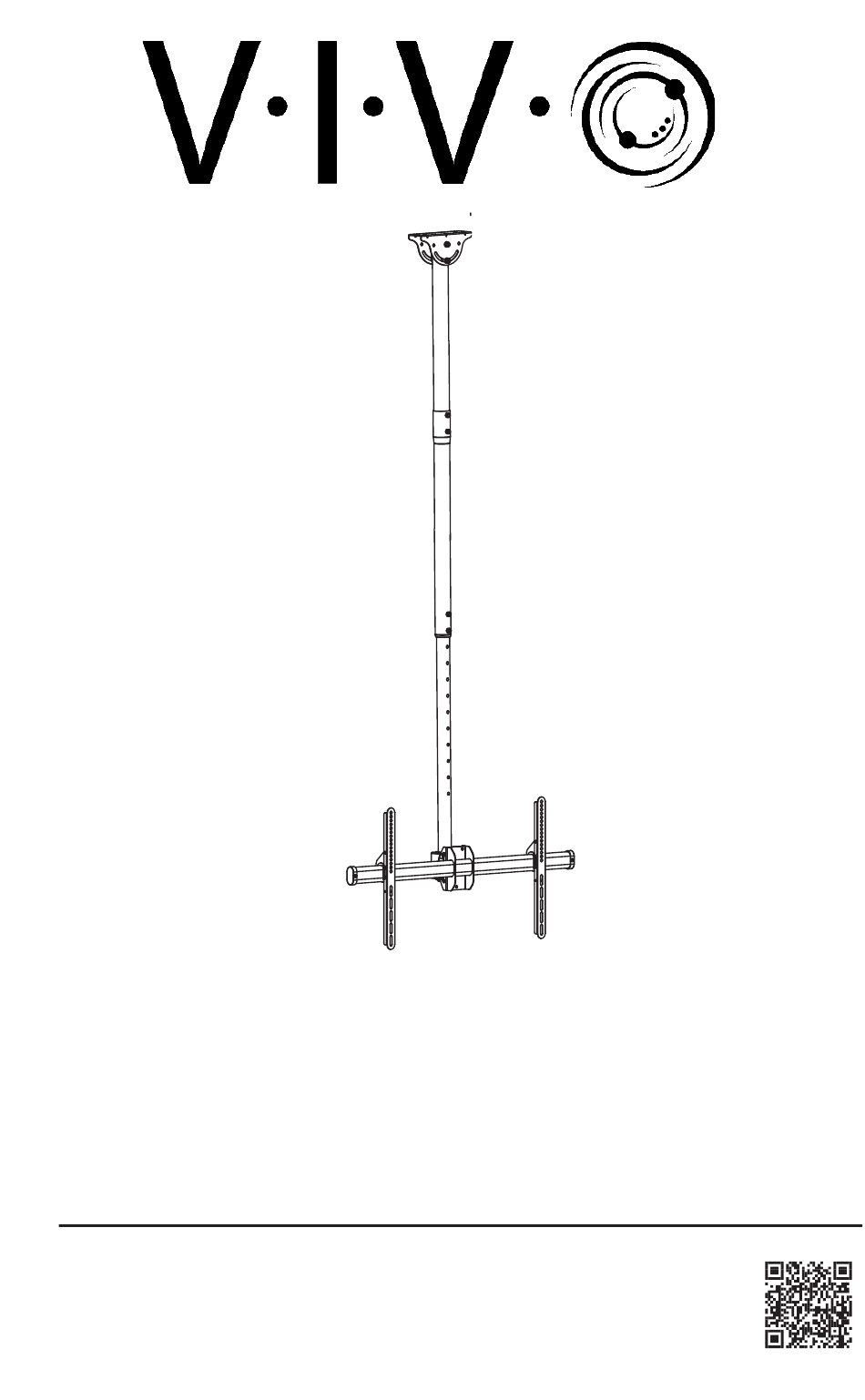

Large TV Ceiling Mount with 10ft Pole SKU: MOUNT-VC90-10 Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/mount-vc90-10...
Page 2
If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
Package Contents A (x1) B (x1) C (x2) D (x2) Mounting Pole* Middle Pole* Lower Pole* VESA Bracket *NOTE: Parts are NOT shown to scale. E (x1) F (x1) G (x1) VESA Support Mounting Template Adapter Included Hardware & Tools S-A (x2) S-B (x2) S-C (x4)
ASSEMBLY STEPS STEP 1a Option A | Wood Joist Installation Use a stud finder to locate your desired mount position, then hold Mounting Template (G) against ceiling and mark the hole positions using a pencil . Note: When mounting to a flat ceiling, it is recommended the 3/16”...
Page 5
[STEP 1a - Cont’d ] Adjust the angle of Pole (A) so that it is vertical, then tighten the nuts and bolts on Mounting Plate the Mounting Plate using the 6mm Allen Wrench (T-B) and Wrench (T-A). STEP 1b Option B | Concrete Installation Hold Mounting Template (G) up to your desired mounting location and mark hole positions using a marker.
Page 6
[STEP 1b - Cont’d ] Remove the Washers and Nust from Concrete Anchors (W-B). Insert Concrete Anchors into the pre-drilled holes. Then secure Mounting Pole (A) to the ceiling using the previously removed Washers and Nuts. Tighten the nuts on Concrete Anchors () using a torque wrench with a 14mm socket set to 40ft-lbs (54 N-m).
Page 7
STEP 2 Slide Mounting Adapter (F) on to Lower Pole (C). Route cables through all of the Poles (A,B,C) Connect Mounting Pole (A) and Middle Pole (B) together using M8x60mm Screws (S-B), M8 Nuts (S-C), and 5mm Allen Wrench (T-B). Slide Lower Pole (C) into Middle Pole (B) and place at your desired height.
Page 8
STEP 3 Use Wrench (T-A) to remove the single Lower Nut from VESA Support (E) Lower Slide VESA Support (E) onto the front of Mounting Adapter (F) and reinstall the previously removed Lower Nut using Wrench (T-A). PLEASE NOTE: Parts are NOT shown to scale.
Page 9
STEP 4 Install the VESA Brackets (D) onto the back of your screen using appropriate combination of Screws (M-A through M-D), M8 Washers (M-E), and Spacers (M-F, M-G) for your VESA pattern. Tighten screws using a Phillips screwdriver. Example combinations are shown below.
Page 10
STEP 5 Hang your TV with VESA Brackets (D) onto the VESA Support Bar (E).
Page 11
STEP 6 Secure VESA Brackets (D) in place using the previously removed Collar Screws and a Phillips screwdriver. Make tilt and angle adjustment as desired, then tighten the nuts on the side of Mounting Adapter (F). Lock the rotation in place by tightening the preinstalled screw on the back of Mounting Adapter using a 5mm Allen Wrench (T-B).
LAST UPDATED: 10/26/23 REV1 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
