- Page 1 Electric Cotton Candy Machine USER MANUAL...
-
Page 2: Welding Table
Have product questions? Need technical support? Please feel free to contact us: CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. - Page 3 Product Parameters MHTJJPZY01，MHTJLJ01L， MHTJXM01F，MHTJXM01H， MHTJJPHC01，MHTJHC01H， Model MHTJLJ01H，MHTJLJ01F MHTJXM01L，MHTJXM01Y MHTJHC01F，MHTJHC01L Dimension(mm) 518*518*485 503×503×435 518*820*1050 Heating Plate 1000W 1000W 1000W Power Motor Power 18.6W 18.6W 18.6W Voltage 120V～ 120V～ 120V～ Frequency 60Hz 60Hz 60Hz Spare Parts List Item Part name Picture Cotton Candy Machine...
- Page 4 Mounting Kit Accessories List Note: Only the car model contains the installation kit Item Part name Picture Wheel 2 PCS Table 1 PCS Handle 1 PCS 2 PCS Long Bracket Short Bracket (Wheel Mounting) 2 PCS Transverse Fixing Bracket 3 PCS 2 PCS Plastic pad 2 PCS...
-
Page 5: Product Presentation

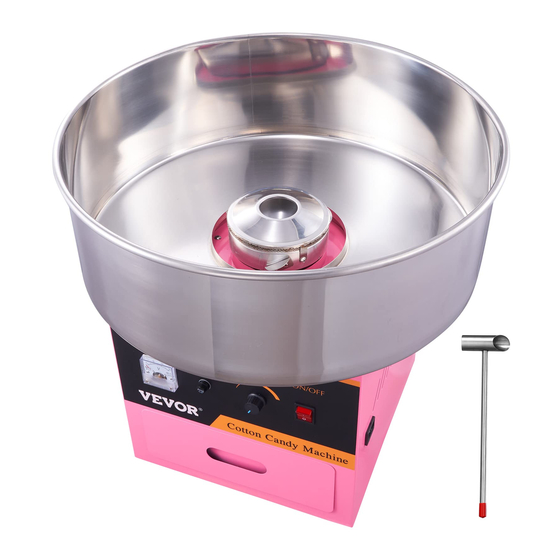

Product Presentation ① Meet Your Commercial Needs: Our commercial cotton candy machine’ s power is 1000W, which only requires 2-minute preheat time, ensuring rapid cotton candy production; The spinning head, with 3000RPM rotating speed, can store 0.5 oz / 15g sugar at one time and product 120 cotton candy per hour, satisfy your large output demands. - Page 6 Product Composition Diagram spinning head spinning head Bowl Bowl voltmeter voltmeter Fuse Heating Switch Power Switch Power Plug Power Plug Heating Switch Fuse Drawer Power Swtich Cotton Candy Machine Cotton Candy Machine (Countertop Type with Cabinet) (Countertop Type) Cotton Candy Machine(Car Type)
- Page 7 Please install the wheels in the following order for the model with the car Use round-head screws (M5*12) and round-head screws (M5*35) to install the bracket as shown in the figure, and the left and right installation methods are the same. Round-head screws (M5*12) Round-head screws...
- Page 8 2.Install two wheels under the frame with two M8 Bolts. wheel bolt 3.Install the Table on the left side of the main body. Install the Push handle On the right side of the main body, use 8pcs M5*12 screws and 8pcs washers.
- Page 9 Table Push handle...
- Page 10 7.Place the stainless steel pan on top of the box and buckle it.4 buckles on the left and right...
- Page 11 8.After all assembly is completed, it is ready to use.Please keep other components not assembled, which will be used during use or maintenance...
-
Page 12: Operation Precautions
Operation Precautions 1. Please read this manual carefully before use. Understand the structure and function of the machine, and be familiar with the main parts of the machine and related safety operations. In order to give full play to its advantages and achieve satisfactory results. - Page 13 Cleaning 1.The machine needs to be cleaned after the marshmallow is made, otherwise the spinning head may be blocked. Keep the machine running during the cleaning process, pour a small amount of water into the rotor, then slowly the rotor will shake off the water, turn off the machine and clean it with a dry soft cloth.
-
Page 14: Circuit Diagram
Circuit diagram Troubleshooting Fault: no sugar filaments 1.Check whether the sugar head does not rotate, and stop the machine to sense whether the sugar head is hot; 2.If not rotate: check whether the machine is powered on and whether the motor is broken 3.If it is not hot: check whether the machine is powered on, whether the sugar head is ring, and whether the voltage is increased... - Page 15 Manufacturers: Elecpro Group Holding Co., Ltd Add: Gongye Ave west,Songxia Industrial Park,Songgang,Nanhai,Foshan,Guangdong,China...
