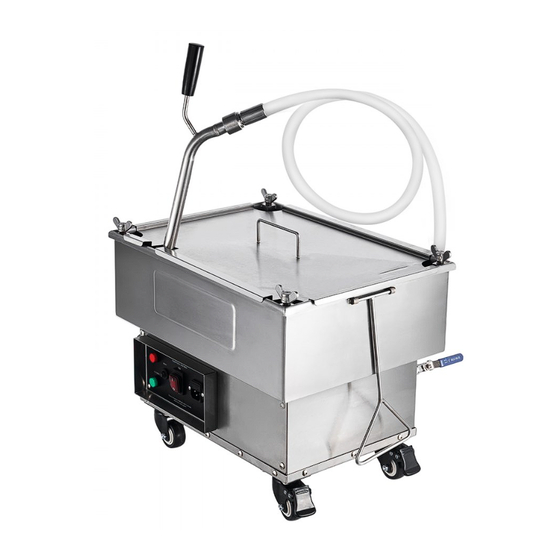

OIL FRYER FILTER
MODEL: LYC-18L、LYC-18L-EU、LYC-38L
LYC-38L-EU、LYC-55L、LYC-55L-EU
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VEVOR LYC-18L
Summary of Contents for VEVOR LYC-18L
- Page 1 Technical Support and E-Warranty Certificate www. vevor. com/support OIL FRYER FILTER MODEL: LYC-18L、LYC-18L-EU、LYC-38L LYC-38L-EU、LYC-55L、LYC-55L-EU We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us.
- Page 2 This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
-
Page 3: Important Safeguards
Warning-To reduce the risk of injury, user must read instructions manual carefully. Compliance is a EC security certification. CORRECT DISPOSAL This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. - Page 4 equipment. CAUTION：This equipment is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the equipment by a person responsible for their safety.
-
Page 5: Product Parameters
VEVOR will not accept liability for product failures in the event that: • The instructions in this manual have not been followed correctly. • Unqualified personnel have adjusted the Fryer Frame. • Non-original spare parts are used. SAVE THESE INSTRUCTIONS... - Page 6 Oil Filter on the floor to ready for assembly. You will need an Allen key to assist in the assembly process. For Model LYC-18L、LYC-18L-EU： STEP 1: Assemble the oil gun to the main housing correctly as shown on the picture .
- Page 7 STEP 2: Put the filter paper,silicon seal ring into the pan,then the rectangular stainless steel frame to cover the silicone seal ring,then filter net and tighten the screws. Caution:It must be installed in the order shown in the figure, and the filter paper （A-2）must be installed on top of the filter(A-1), otherwise the machine may not work and empty.
- Page 8 For Model LYC-38L、LYC-38L-EU、LYC-55L、LYC-55L-EU： STEP 1: Assemble the oil gun to the main housing correctly , as shown in the picture above. - 7 -...
- Page 9 STEP 2: Put the filter paper,silicon seal ring into the pan,then the rectangular stainless steel frame to cover the silicone seal ring,then filter net and tighten the screws. Caution:It must be installed in the order shown in the figure, and the filter paper （A-2）must be installed on top of the filter(A-1), otherwise the machine may not work and empty.
-
Page 10: Use Caution
USE CAUTION 1. Ensure that the filter paper is fresh and in place properly. Refer to instructions if you need to replace or install the filter paper. 2. Ensure that you have the filter machine plugged in and turned OFF,oil draining valve on the oil gun and main housing(Model LYC-38L LYC-38L-EU、LYC-55L、LYC-55L-EU) is in “OFF”... -
Page 11: Cleaning And Maintenance
CLEANING & MAINTENANCE WARNING:SERIOUS INJURY OR PROPERTY DAMAGE CAN OCCUR IF PROPER PRECAUTIONS ARE NOT FOLLOWED • The power supply must be disconnected before servicing, maintaining, or cleaning this machine. • DO NOT pump water through the filter pump system. The pump functions using oil lubrication, and water will damage the pump. -
Page 12: Daily Cleaning
DAILY CLEANING 1. Disconnect filter hose wand and drain. 2. Disconnect filter tube and turn pump on for 3-5 seconds to force shortening from pump. Failure to do this will cause pump or hose to clog with shortening. 3. Unplug shortening filter. 4. -
Page 13: Electrical Diagram
ELECTRICAL DIAGRAM TROUBLESHOOTING WARNING:SERIOUS INJURY OR PROPERTY DAMAGE CAN OCCUR IF PROPER PRECAUTIONS ARE NOT FOLLOWED • The power supply must be disconnected before servicing, maintaining, or cleaning this machine. • If the supplied power cord or receptacle is damaged, it MUST be replaced by an authorized service and parts company technician in order to avoid a hazard. - Page 14 Turn filter pump off. Allow oil to cool, then Filter paper is dirty empty pan. Verify filter paper is clean and filtering or incorrectly properly installed. Refill pan and process installed restart process. Allow filter unit to cool for at least 45 Tripped thermal minutes, then reset the thermal overload overload switch...
- Page 15 Address：Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730 Pooledas Group Ltd Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom SHUNSHUN GmbH Römeräcker 9 Z2021, 76351 Linkenheim-Hochstetten, Germany Made In China - 14 -...
