5-9305-99-X

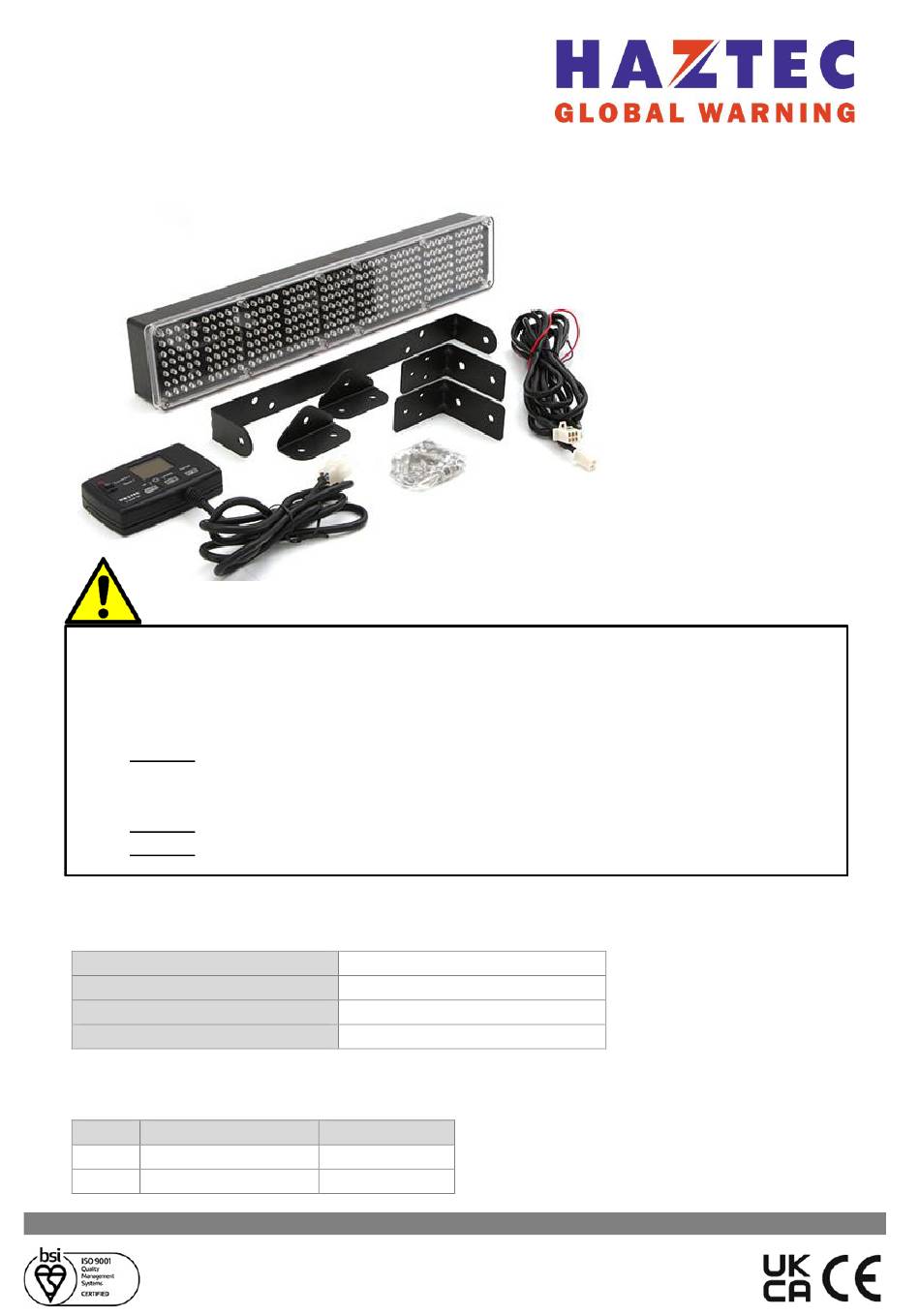

LED Message Sign
Thank you for purchasing this Haztec product. Before proceeding with installation it is essential
to read and understand this instruction booklet.
▪ This product must be installed by persons competent in vehicle electrical installations
▪ Care should be taken to ensure that water ingress cannot occur through mounting
or wiring holes
▪ Regularly inspect the product to confirm correct operation
▪ DO NOT stare directly into the light it produces as permanent damage to the eyes
may result
▪ Use only a mixture of mild soap and water to clean this product
▪ DO NOT direct a high-pressure water jet at this product
▪ DO NOT allow solvents, fuels, or acetone-based cleaners etc. to contact this product
Basic Operating Specifications:
Operating Voltage:
Maximum current draw:
Message sign dimensions (mm): 464 (L) x 86 (H) x 50 (D)
Controller dimensions (mm):
Wiring Instructions:
Wire
Connect to
Red
Positive [+] via fuse
Black
Negative [-]
M436.1.1
Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
12V or 24V (model dependant)
1.4A +/-10% @ 12VDC
105 (L) x 68 (H) x 25 (D)
Function
Main feed
Earth/Ground
T: +44(0)113 202 9115 ∙ info@haztec.uk ∙ www.haztec.uk
- 1 -
▪ LED Message Sign
▪ 99 messages
▪ 9 characters
▪ Choice of LED colour
▪ 12V or 24V versions
November 2023
