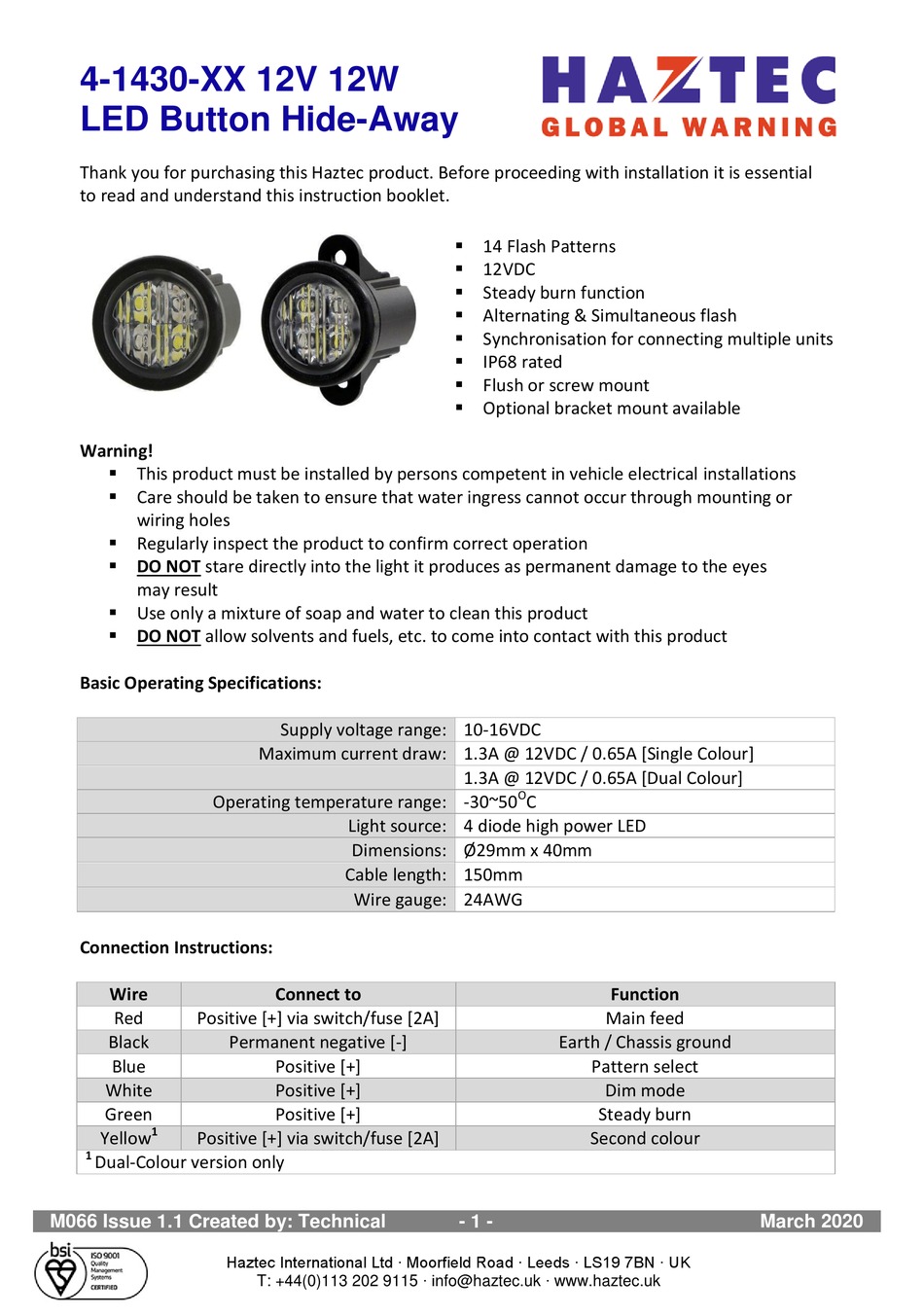

4-1430-XX 12V 12W
LED Button Hide-Away
Thank you for purchasing this Haztec product. Before proceeding with installation it is essential
to read and understand this instruction booklet.
Warning!
 This product must be installed by persons competent in vehicle electrical installations
 Care should be taken to ensure that water ingress cannot occur through mounting or
wiring holes
 Regularly inspect the product to confirm correct operation
 DO NOT stare directly into the light it produces as permanent damage to the eyes
may result
 Use only a mixture of soap and water to clean this product
 DO NOT allow solvents and fuels, etc. to come into contact with this product

Basic Operating Specifications:

Operating temperature range: -30~50

Connection Instructions:

Wire
Red Positive [+] via switch/fuse [2A]
Black
Blue
White
Green
1
Yellow Positive [+] via switch/fuse [2A]
1
Dual-Colour version only
M066 Issue 1.1 Created by: Technical
Supply voltage range: 10-16VDC
Maximum current draw: 1.3A @ 12VDC / 0.65A [Single Colour]
Light source: 4 diode high power LED
Dimensions: Ø29mm x 40mm
Cable length: 150mm
Wire gauge: 24AWG
Connect to
Permanent negative [-]
Positive [+]
Positive [+]
Positive [+]
Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: +44(0)113 202 9115 ∙ info@haztec.uk ∙ www.haztec.uk
 14 Flash Patterns
 12VDC
 Steady burn function
 Alternating & Simultaneous flash
 Synchronisation for connecting multiple units
 IP68 rated
 Flush or screw mount
 Optional bracket mount available
1.3A @ 12VDC / 0.65A [Dual Colour]
O
C
Function
Main feed
Earth / Chassis ground
Pattern select
Dim mode
Steady burn
Second colour
