Haztec 4-10014 Instructions

4-10014/10016/10016-D
Impact LED Warning Light
Thank you for purchasing this Haztec product. Before proceeding with installation it is essential
to read and understand this instruction booklet.
Warning!
▪ This product must be installed by persons competent in vehicle electrical installations
▪ Care should be taken to ensure that water ingress cannot occur through mounting or wiring
holes
▪ Regularly inspect the product to confirm correct operation
▪ DO NOT stare directly into the light it produces as permanent damage to the eyes may
result
▪ Use only a mixture of soap and water to clean this product
▪ DO NOT direct a high-pressure water jet at this product
▪
DO NOT allow solvents, fuels and acetone-based cleaners etc. to come into contact with
this product
Installation Notes:
▪ Ensure that the mounting surface is completely flat. The lamp is not flexible, and will be
damaged if any attempt is made to mount on a curved surface
▪ Always use the fixing screws provided. If a different fixing screw must be used, it is essential
that the screw head fits comfortably in the screw-head recess on the lamp
▪ If the screw head is larger than the recess then the lamp lens will be damaged during
installation
▪ DO NOT over-tighten mounting screws as this will cause damage to the assembly
▪ The 4-10016-D consists of two lamps on a single mounting plate, therefore installation
wiring should be treated as for two individual lamps
Basic Operating Specifications:
Supply voltage range:
Maximum current draw:
Operating temperature range:
M017.1.2
4-10014
10-30VDC
0.5A @ 12.5VDC
-30°C to +55°C
Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: +44(0)113 202 9115 ∙ info@haztec.uk ∙ www.haztec.uk

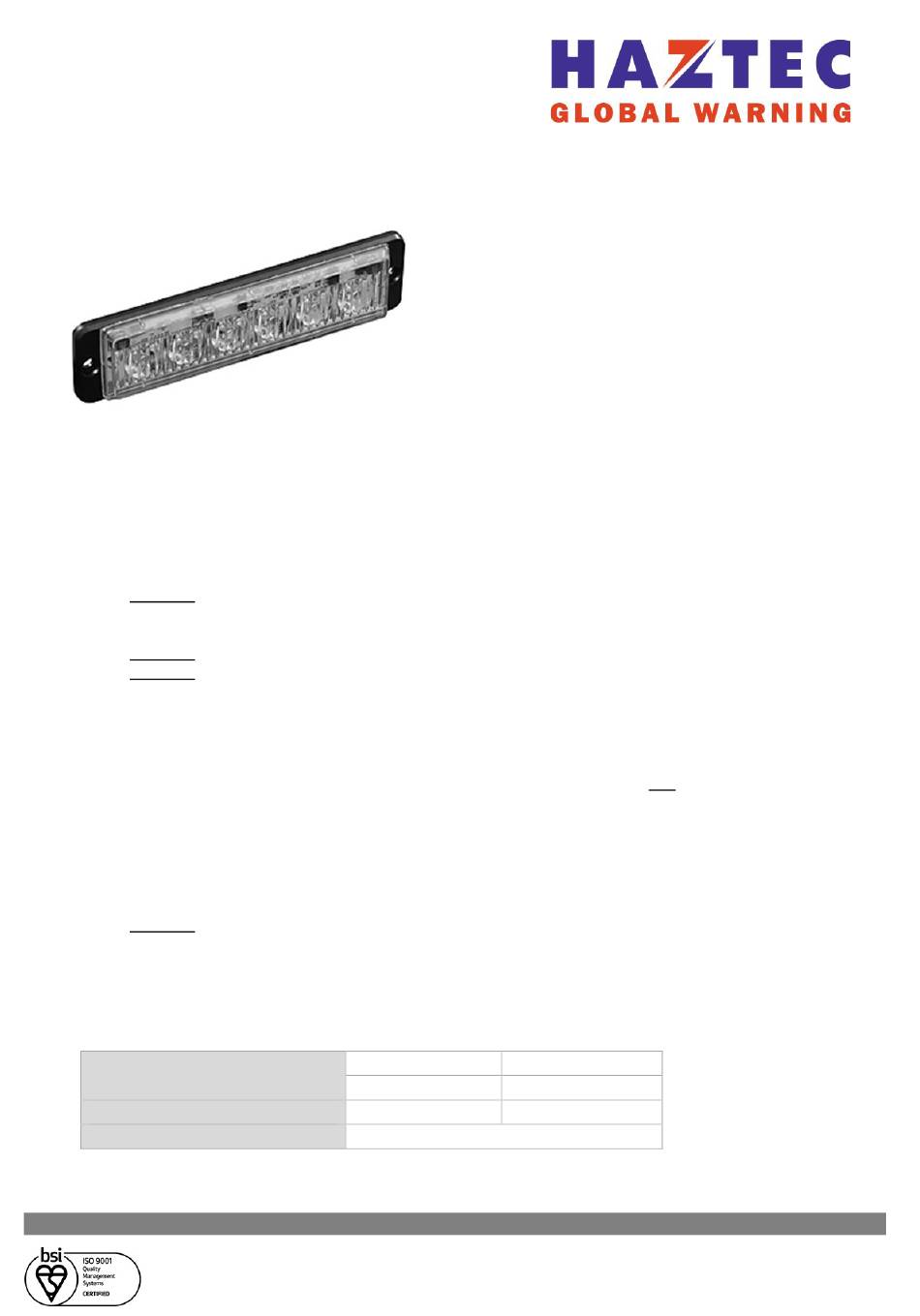

▪ Ultra slim LED warning lamp
▪ 4 or 6 LEDs [6+6 LEDs for 4-10016-D]
▪ Split into two zones
▪ Zones can have different colours
▪ User selectable flash patterns
▪ Synchronise capable
▪ DIM mode
▪ Cruise mode
▪ R65 versions available [4-10016 only]
4-10016
10-40VDC
1.0A @ 12.5VDC
- 1 - May 2022
