5-9406-99-X

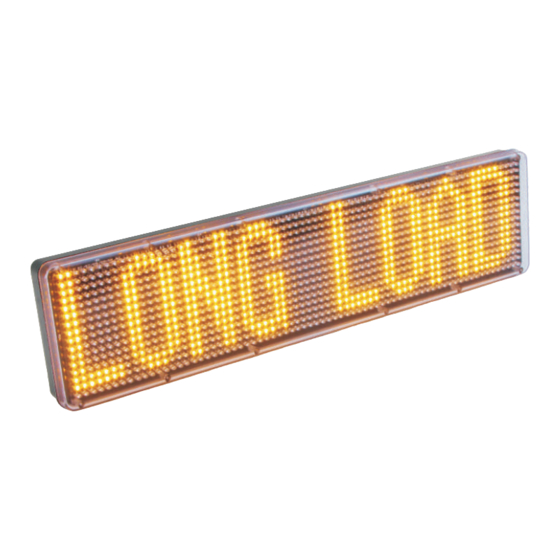

LED Message Sign
Thank you for purchasing this Haztec product. Before proceeding with installation it is essential
to read and understand this instruction booklet.
Warning!
 This product must be installed by persons competent in vehicle electrical installations
 Care should be taken to ensure that water ingress cannot occur through mounting or
wiring holes
 Regularly inspect the product to confirm correct operation
 DO NOT stare directly into the light it produces as permanent damage to the eyes may
result
 Use only a mixture of mild soap and water to clean this product
 DO NOT direct a high-pressure water jet at this product
 DO NOT allow solvents, fuels or acetone-based cleaners etc. to come into contact with
this product

Basic Operating Specifications:

Operating Voltage:
Maximum current draw:
Maximum current draw:
Main casing dimensions:

Wiring Instructions:

Wire Connect to
Red Positive [+] via fuse
Black Negative [-]
M105 Issue 1.1 Created by: Technical
12V or 24V (model dependant)
1A @ 12VDC
0.5A @ 24VDC
573 (L) x 140 (W) x 45 (H)
Function
Main feed
Earth/Ground
Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: +44(0)113 202 9115 ∙ info@haztec.uk ∙ www.haztec.uk
 LED Message Sign
 99 messages
 9 characters
 Choice of LED colour
 12V or 24V versions
- 1 - July 2019
