Haztec 4-1044-X Impact Installation Notes

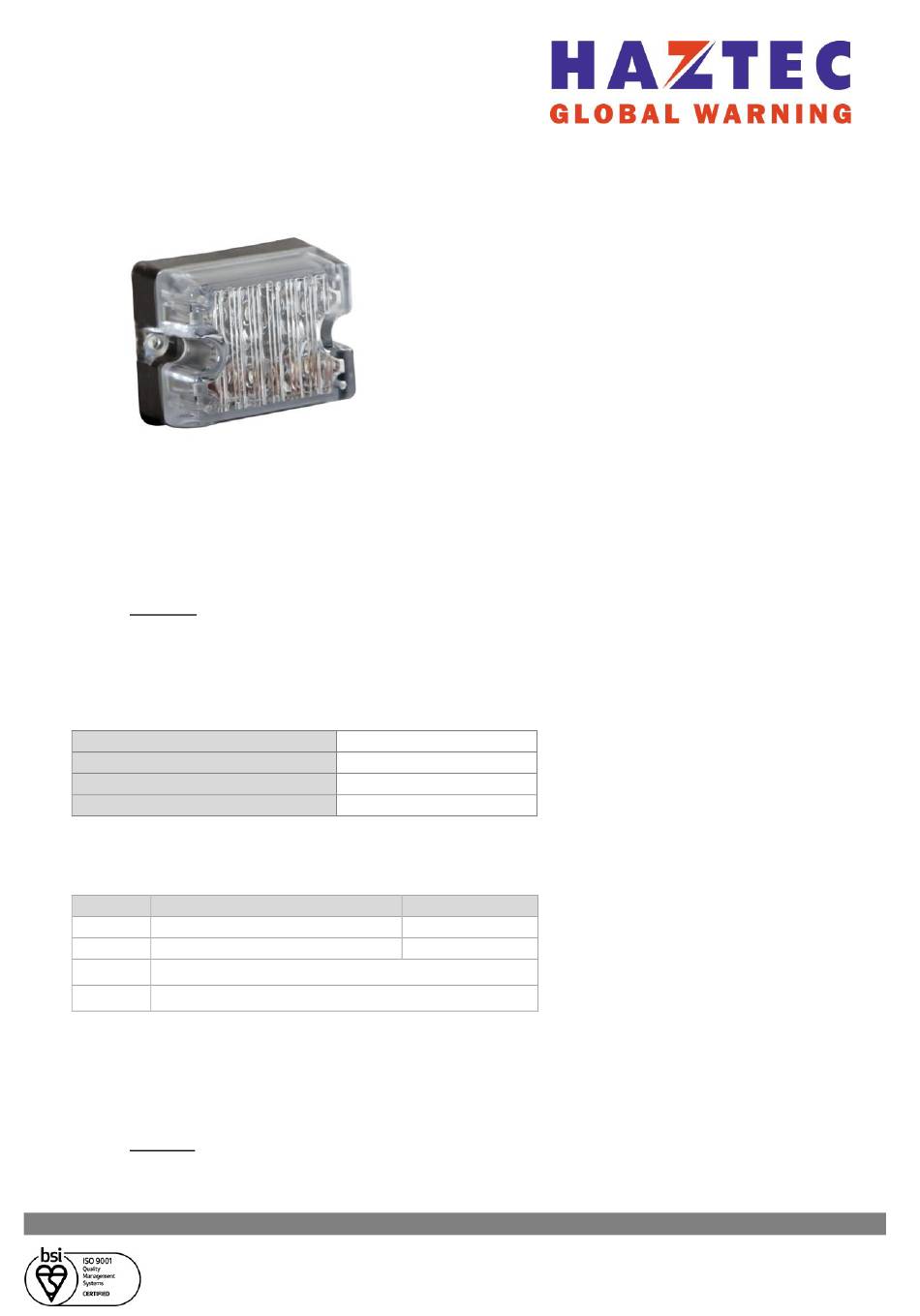

4-1044-X Impact
Directional Warning Light
Thank you for purchasing this Haztec product. Before proceeding with installation it is essential
to read and understand this instruction booklet.
Warning!
 This product must be installed by persons competent in vehicle electrical installations
 Care should be taken to ensure that water ingress cannot occur through mounting or
wiring holes
 Regularly inspect the product to confirm correct operation
 DO NOT stare directly into the light it produces as permanent damage to the eyes may
result
 Use only a mixture of soap and water to clean this product
Basic Operating Specifications:
Supply voltage range:
Maximum current draw:
Operating temperature range:
Dimensions (mm):
Connection Instructions:
Wire
Red Positive [+] via switch & fuse
Black Permanent negative [-]
Blue
Yellow See 'Synchronising Multiple Lamps'
Installation Notes:
 Always install the lamp on a flat surface
 Use the included heat-sink/mounting plate
 DO NOT connect the yellow wire to positive [+] or negative [-]
M217 Issue 1.1 Created by: Technical
10-14VDC
0.8A @ 12.5VDC
-30°C to +55°C
55 (L) x 45 (H) x 31 (D)
Connect to
See 'Selecting Flash Pattern'
