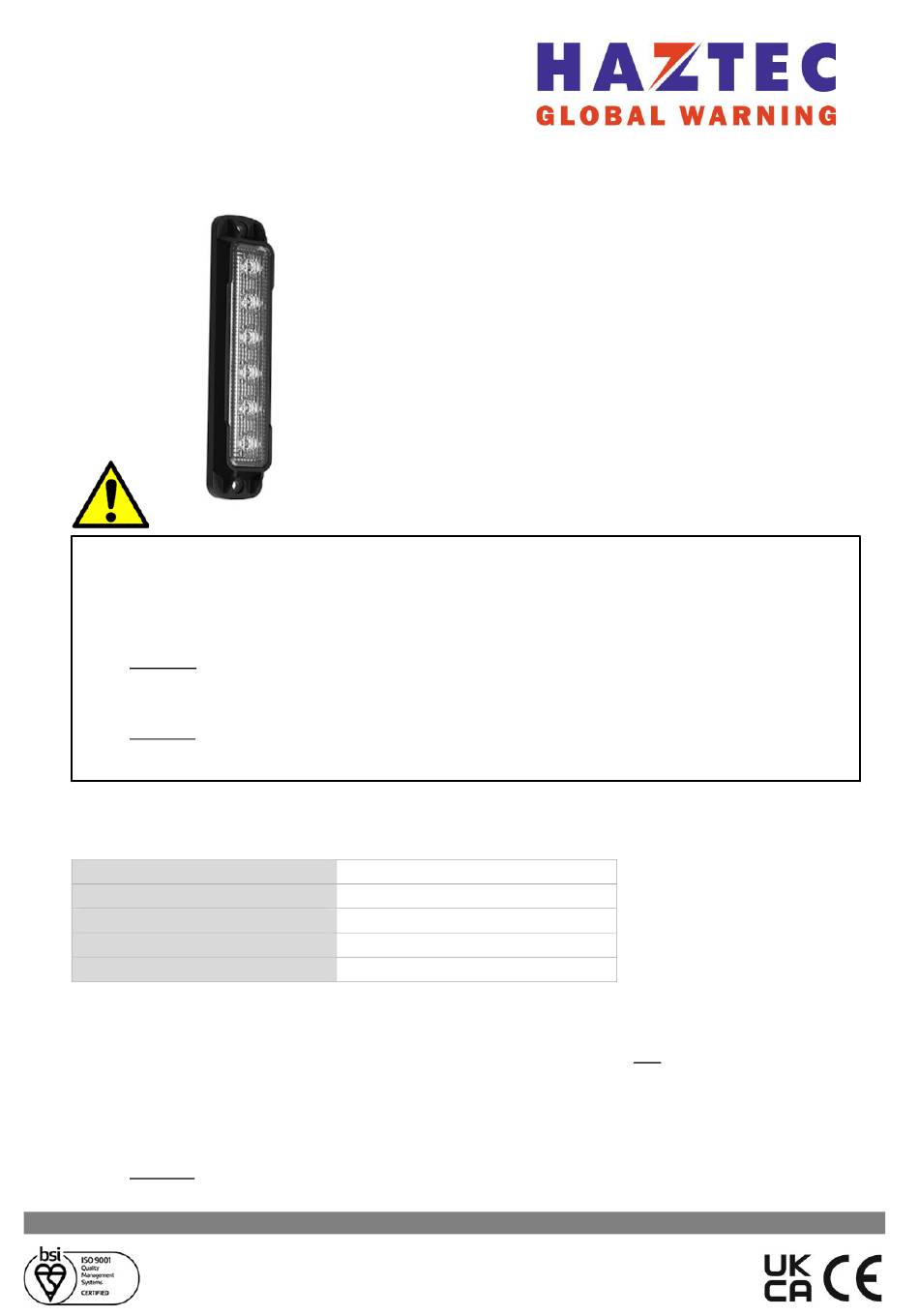

Haztec 4-3056-V-X Connection Instructions

4-3056-V-X
Directional Warning Light
Thank you for purchasing this Haztec product. Before proceeding with installation, it is essential to
read and understand this instruction booklet.
▪ This product must be installed by persons competent in vehicle electrical installations
▪ Care should be taken to ensure that water ingress cannot occur through mounting or wiring
holes
▪ Regularly inspect the product to confirm correct operation
▪ DO NOT stare directly into the light it produces as permanent damage to the eyes may
result
▪ Use only a mixture of soap and water to clean this product
▪ DO NOT allow solvents; fuels; acetone-based cleaners etc. to come into contact with this
product

Basic Operating Specifications:

Supply voltage range:
Maximum current draw:
Operating temperature range:
LED Power:
Dimensions (mm):

Installation Notes

▪ Ensure that the mounting surface is completely flat. The lamp is not flexible, and will be
damaged if any attempt is made to mount on a curved surface
▪ Always use the fixing screws provided. If a different fixing screw must be used, it is
essential that the screw head fits comfortably in the screw-head recess on the lamp. If
the screw head is larger than the recess then the lamp lens will be damaged during
installation
▪ DO NOT over tighten mounting screws as this will cause damage to the assembly
M333.1.1
10-30VDC
1.28A @ 12VDC / 0.67 @ 24VDC
O
-40 C ~ +65
4W per LED
130 (L) x 28.5 (H) x 13 (D)
Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: +44(0)113 202 9115 ∙ info@haztec.uk ∙ www.haztec.uk
▪ Ultra slim LED warning light
▪ 6-LED
▪ Vertical mount
▪ UNECE R65 approved
▪ User selectable flash patterns
▪ Synchronise capable
▪ IP67 rated
O
C
- 1 - October 2021
