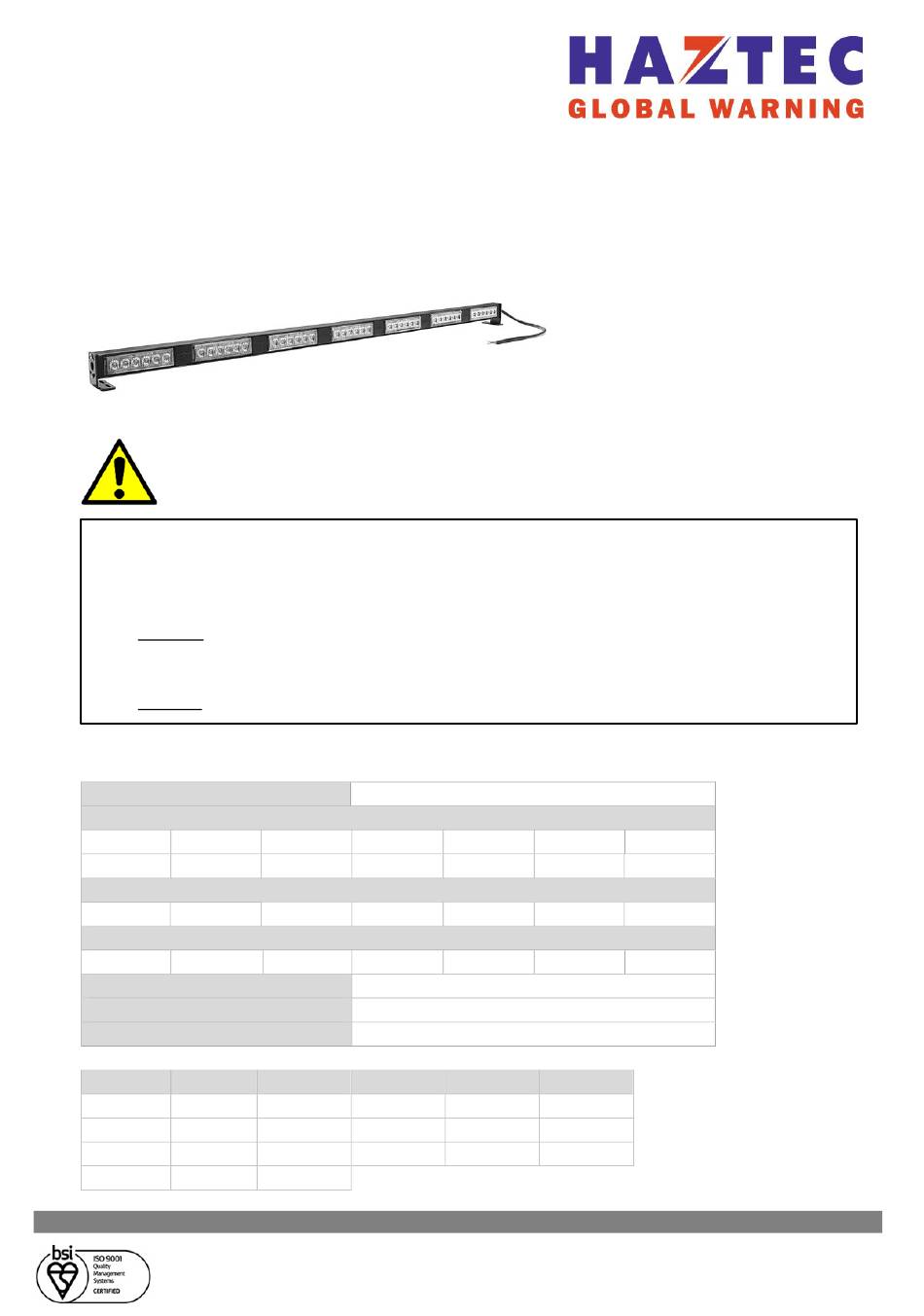

Haztec Dual-Colour Quick Start Manual

5-360X~3610-XX
Dual-Colour
LED Arrow/Warning Bar
Thank you for purchasing this Haztec product. Before proceeding with installation, it is essential to
read and understand this instruction booklet.
▪ This product must be installed by persons competent in vehicle electrical installations
▪ Care should be taken to ensure that water ingress cannot occur through mounting or wiring
holes
▪ Regularly inspect the product to confirm correct operation
▪ DO NOT stare directly into the light it produces as permanent damage to the eyes may
result
▪ Use only a mixture of soap and water to clean this product
▪ DO NOT allow solvents, fuels, or acetone-based cleaners etc. to contact this product
Basic Operating Specifications:
Supply voltage range:
Maximum current draw @ 12Vrms:
5-3604 5-3605
3.46A 3.88A
Maximum current draw @ 24Vrms:
1.62A 2.08A
Fuse rating:
8A 8A
LED power:
Operating temperature range:
Cable length:
Part No. Length
5-3554 558mm
5-3555 697mm
5-3556 829mm
5-3557 968mm
M315.1.0
10-40VDC
5-3606 5-3607
4.72A 5.46A
2.72A 3.06A
8A 10A
3W per LED
-30 to +55
5m
Modules Part No.
4 5-3558
5 5-3559
6 5-3560
7
Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: +44(0)113 202 9115 ∙ info@haztec.uk ∙ www.haztec.uk
▪ Slimline warning bar
▪ 12/24VDC
▪ 4-10 LED modules
▪ 3W GEN3 LEDs
▪ User selectable flash patterns
▪ DIM function
▪ Horizontal or vertical mount
▪ Adjustable bracket
▪ 5-year warranty
5-3608 5-3609
6.26A 7.06A
3.46A 3.8A
10A 15A
O
C
Length Modules
1107mm 8
1246mm 9
1385mm 10
- 1 -
5-3610
7.8A
4.26A
15A
March 2021
