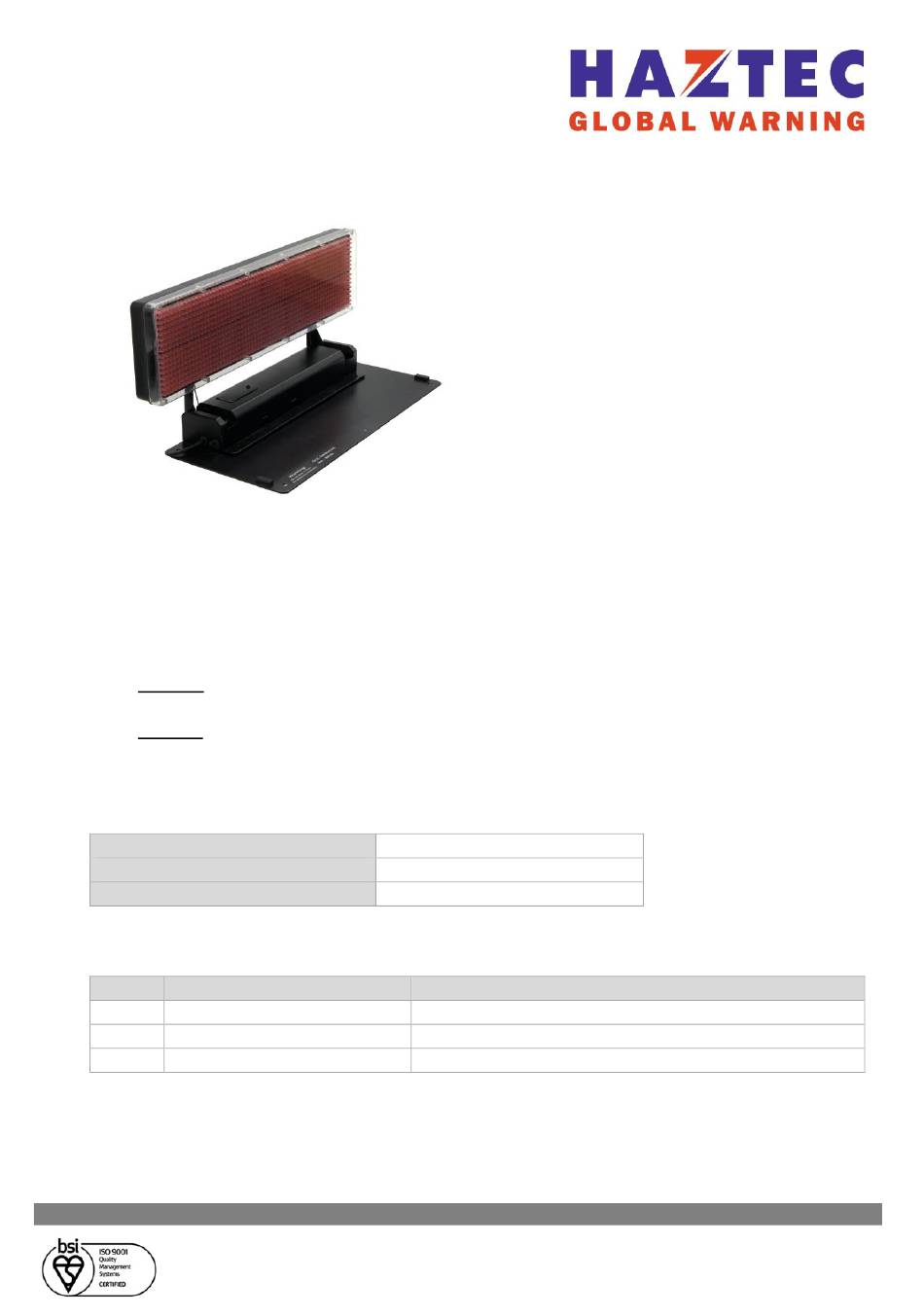

Haztec 5-9406-F-99 Series Quick Start Manual

5-9406-F-99-X
Flip-Up LED Message Sign
Thank you for purchasing this Haztec product. Before proceeding with installation, it is essential to
read and understand this instruction booklet.
Warning!
▪ For internal use only
▪ This product must be installed by persons competent in vehicle electrical installations
▪ Care should be taken to ensure that water ingress cannot occur through mounting or wiring
holes
▪ Regularly inspect the product to confirm correct operation
▪ DO NOT stare directly into the light it produces as permanent damage to the eyes may
result
▪ DO NOT allow solvents, fuels and acetone-based cleaners etc. to come into contact with
this product
Basic Operating Specifications:
Supply voltage range:
Maximum current draw per level:
Dimensions (mm):
Connection Instructions:
Wire Connect to
Brown Positive [+] via switch & fuse
White Permanent negative [-]
Green Positive [+] via switch & fuse
M243.1.2
12 or 24VDC (model specific)
1.0A @ 12VDC / 0.5A @ 24VDC
573 (L) x 140 (W) x 45 (H)
Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: +44(0)113 202 9115 ∙ info@haztec.uk ∙ www.haztec.uk
▪ Programmable LED message sign
▪ Amber or Red LEDs
▪ LCD controller
▪ Upto 99 messages / 9 characters
▪ 12/24V versions
▪ 2 year warranty
Function
Main feed
Earth/Ground
Operates flip-up mechanism (until feed is switched off)
- 1 - March 2022
