050203

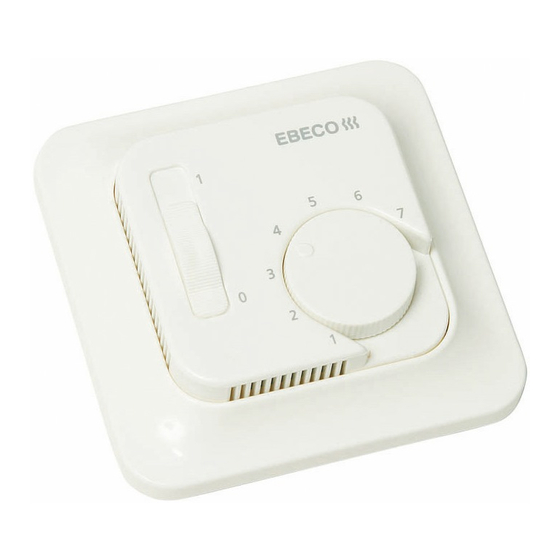

EB-Therm 50
E 85 816 81 / SSTL 35 304 72
MONTERINGSANVISNING / INSTALLATION INSTRUCTIONS
MANUAL DE INSTALACIÓN / MANUEL D'INSTALLATION
ASSENNUSOHJEET / INSTRUKCJA MONTAZU I OBSLUGI
Lärjeågatan 11 • S-415 25 Göteborg • SWEDEN • Tel +46 31 707 75 50
Fax +46 31 707 75 60 • info@ebeco.se • www.ebeco.com
Advertisement
Related Manuals for EBECO EB-Therm 50
Summary of Contents for EBECO EB-Therm 50

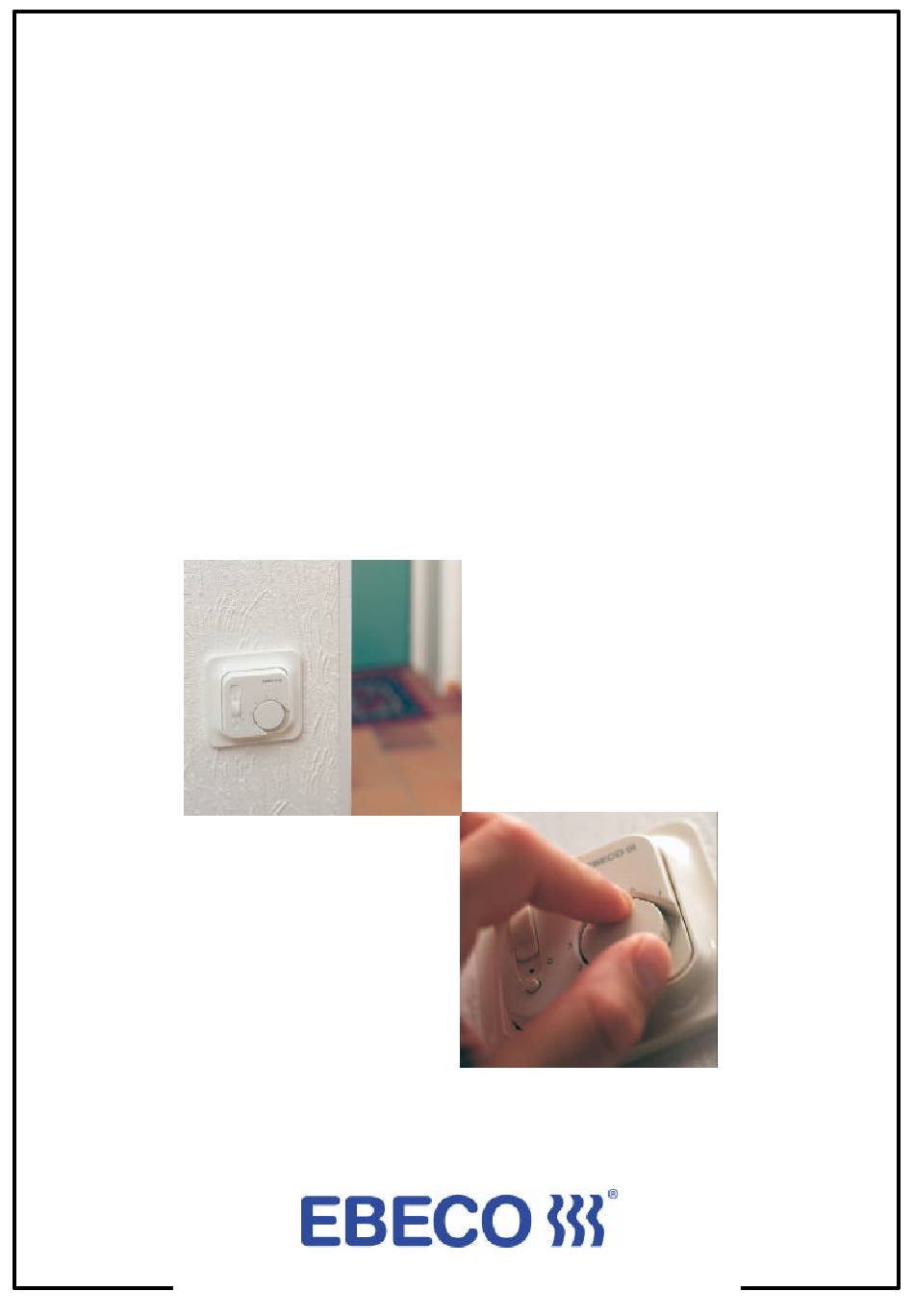

- Page 1 MONTERINGSANVISNING / INSTALLATION INSTRUCTIONS MANUAL DE INSTALACIÓN / MANUEL D’INSTALLATION ASSENNUSOHJEET / INSTRUKCJA MONTAZU I OBSLUGI Lärjeågatan 11 • S-415 25 Göteborg • SWEDEN • Tel +46 31 707 75 50 Fax +46 31 707 75 60 • info@ebeco.se • www.ebeco.com...
- Page 2 Pictures EB-Therm 50 a) 230/240 VAC fig 1 fig 2 d) PE fig 3 fig 4 18mm Golvgivare/Floor sensor (NTC) Temp (°C) Value (kOhm) 10°C 19,9 kOhm 15°C 15,7 kOhm 20°C 12,5 kOhm 25°C 10,0 kOhm 30°C 8,0 kOhm...
- Page 3 Setting EB-Therm 50 has a separate temperature sensor which is located in the floor. The thermostat regulates the floor temperature by means of the floor sensor. The floor/room temperature is set with the temperature setting knob as shown in Fig 1c. Normal setting is between 3 and 4.
