Summary of Contents for EBECO EB-Therm 300

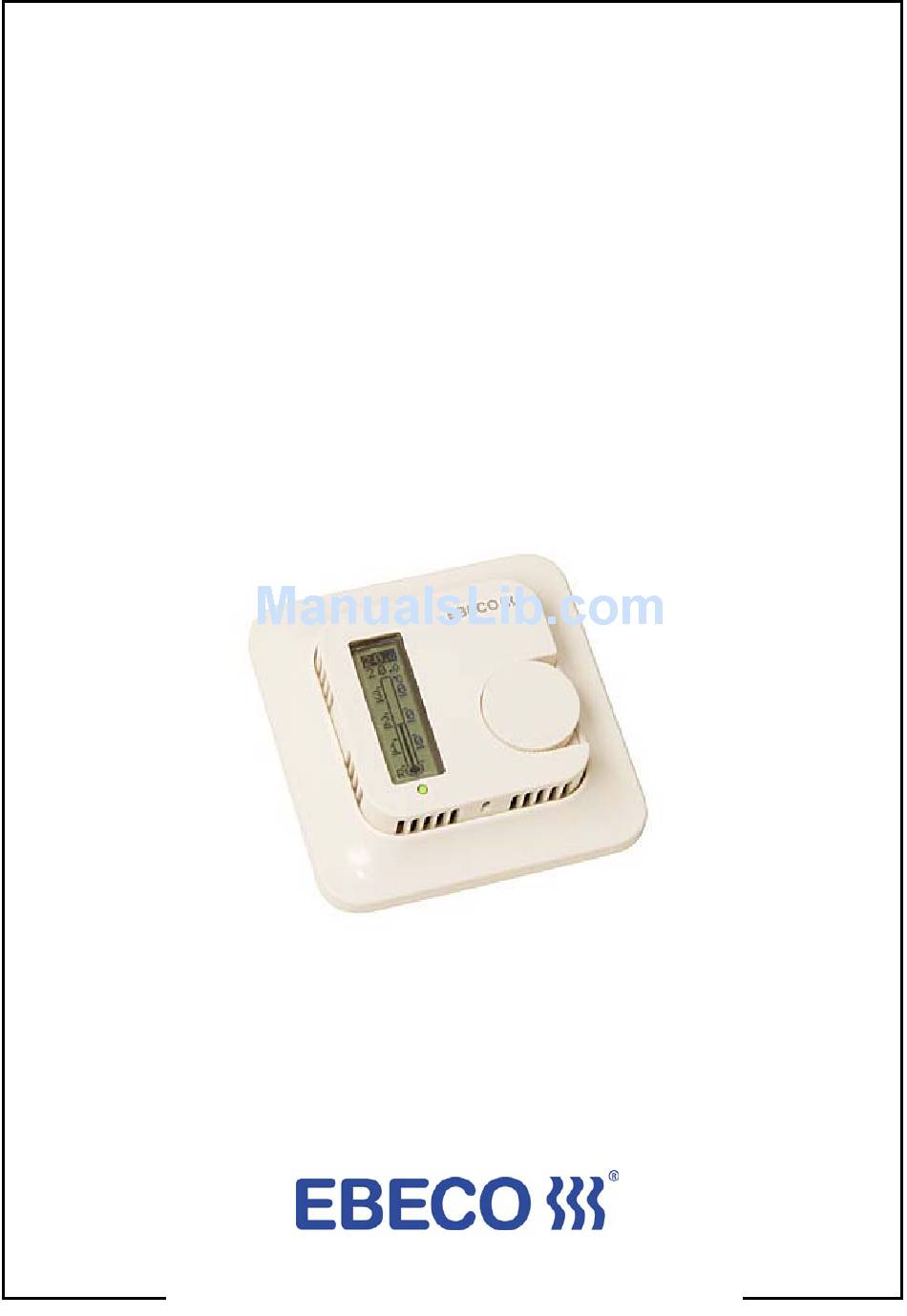

- Page 1 E 85 816 65 / SSTL 35 304 74 MONTERINGSANVISNING / INSTALLATION INSTRUCTIONS LEGGEANVISNING / ASSENNUSOHJEET Lärjeågatan 11 • S-415 25 Göteborg • SWEDEN • Tel +46 31 707 75 50 Fax +46 31 707 75 60 • info@ebeco.se • www.ebeco.com...
- Page 2 Golvgivare/Floor sensor (NTC) Temp (°C) Value (kOhm) 10°C 19,9 kOhm 15°C 15,7 kOhm 20°C 12,5 kOhm 25°C 10,0 kOhm 30°C 8,0 kOhm Fig 1 Fig 2 Fig 4 Fig 5 Fig 3 Fig 6 Fig 7...
- Page 3 Fig 8 Fig 9 Fig 10 Fig 11 Fig 12...
- Page 4 Fig 13 push button push button and wait 4 and wait 4 seconds seconds Fig 14 Fig 15 Fig 16 Fig 17...
-
Page 5: Installation Instructions
(for homes or offices) and one – the arrow indicates that the temperature setback program is running is for user settings. The EB-Therm 300 is approved for installation in wet rooms, SEMKO-certified and CE-marked. The thermostat is designed for –... -
Page 6: Technical Data
– sensor not working – open circuit Programming - user settings EB-Therm 300 also has programs for user settings. You can set four events – sensor not working – short circuit during Monday to Friday and two events during Saturday and Sunday. If the required temperature is changed manually when a function is active, the program resumes operating after the setting at the next event.
