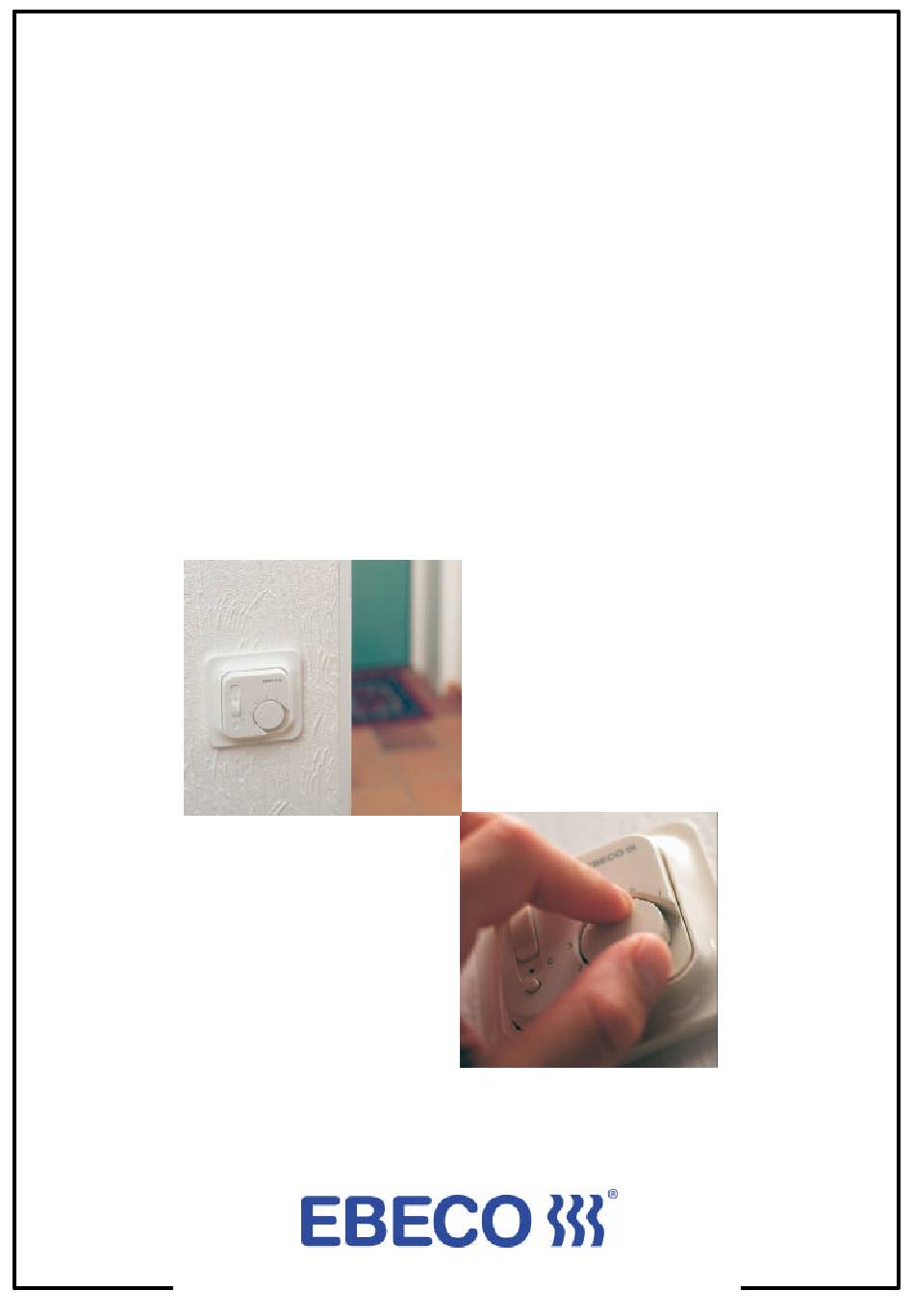

050203
EB-Therm 200
E 85 816 63 / SSTL 35 304 77
MONTERINGSANVISNING / INSTALLATION INSTRUCTIONS
MANUAL DE INSTALACIÓN / MANUEL D'INSTALLATION
ASSENNUSOHJEET / INSTRUKCJA MONTAZU I OBSLUGI
Lärjeågatan 11 • S-415 25 Göteborg • SWEDEN • Tel +46 31 707 75 50
Fax +46 31 707 75 60 • info@ebeco.se • www.ebeco.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EBECO EB-Therm 200
Summary of Contents for EBECO EB-Therm 200
- Page 1 MONTERINGSANVISNING / INSTALLATION INSTRUCTIONS MANUAL DE INSTALACIÓN / MANUEL D’INSTALLATION ASSENNUSOHJEET / INSTRUKCJA MONTAZU I OBSLUGI Lärjeågatan 11 • S-415 25 Göteborg • SWEDEN • Tel +46 31 707 75 50 Fax +46 31 707 75 60 • info@ebeco.se • www.ebeco.com...
- Page 2 Pictures EB-Therm 200 Golvgivare/Floor sensor (NTC) Temp (°C) Value (kOhm) fig 1 10°C 19,9 kOhm 15°C 15,7 kOhm 20°C 12,5 kOhm 25°C 10,0 kOhm 30°C 8,0 kOhm a) 230/240 VAC fig 2 d) PE fig 3 18mm fig 4 fig 5...
- Page 3 3 ways. You can choose between room thermostat, floor thermostat or room thermostat with overheat protection in the floor. EB-Therm 200 is supplied with a front cover and frame suitable for the Eljo Trend wall box system. An extra front cover suitable for Elko RS is also included.
