Preventive Maintenance Continued

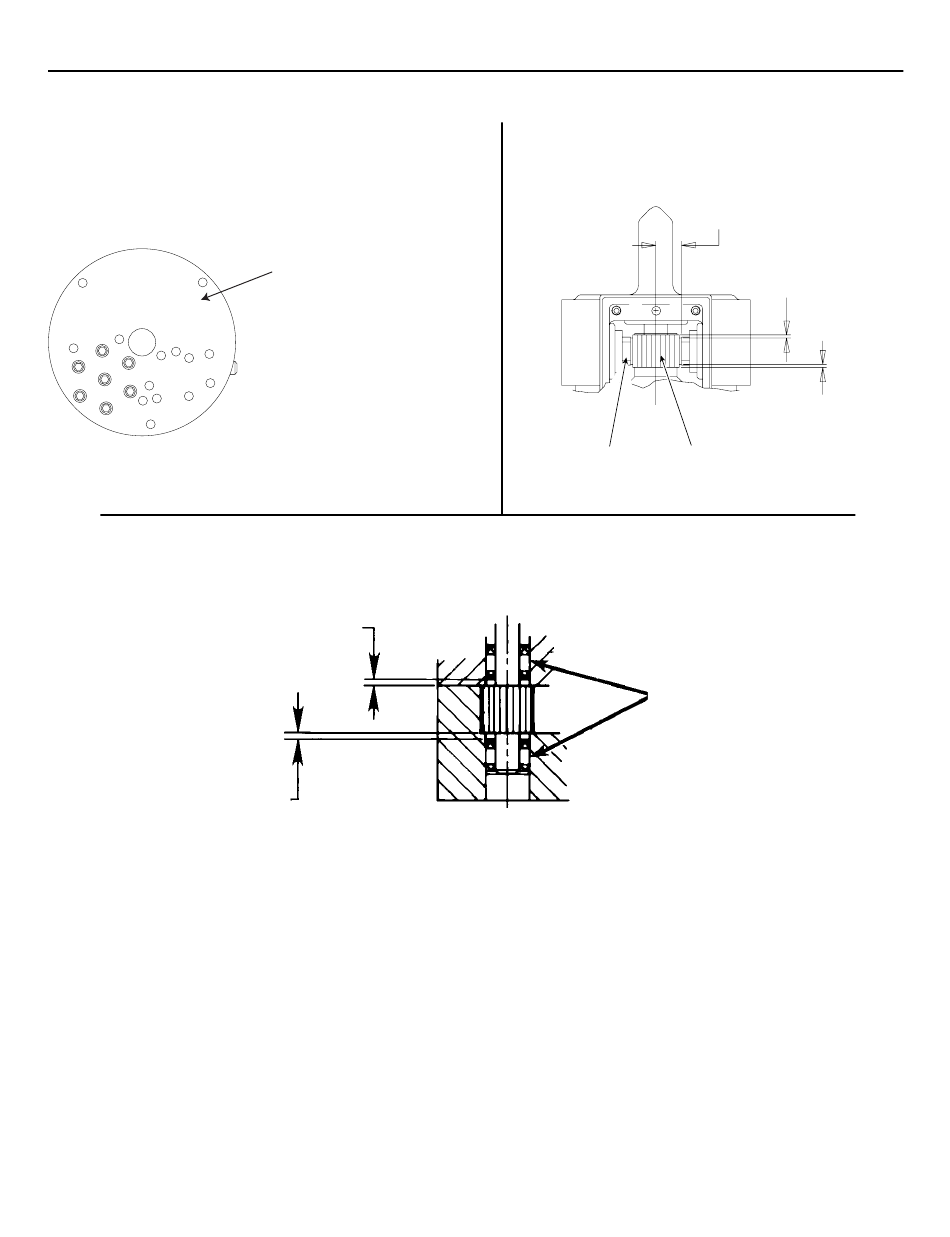

HIGH PRESSURE PUMP ASSEMBLY
BOLT TIGHTENING SEQUENCE
4
2
6 1
3
7
5
.105/.095
When replacing the needle bearings on the drive gear of
the basic pump, the dimensions shown must be as specified
© SPX FLOW, Inc.
REASSEMBLY SPECIFICATIONS
High Pressure Pump
Assembly (5,000 or 10,000 PSI unit
Assemble in sequence shown.
Lubricate under heads and on
threads. Torque to 20.5 Nm (180 in.
lbs.)
NEEDLE BEARING INSTALLATION
SPECIFICATIONS
.105/.095
BRUSH HOLDER & ARMATURE
INSTALLATION SPECIFICATIONS
BRUSH
WHEN REPLACING BRUSHES OR THE ARMATURE, THE
DIMENSIONS SHOWN MUST BE AS SPECIFIED
16
.677
.702
.020 MIN
.020 MIN
ARMATURE
NEEDLE
BEARINGS
