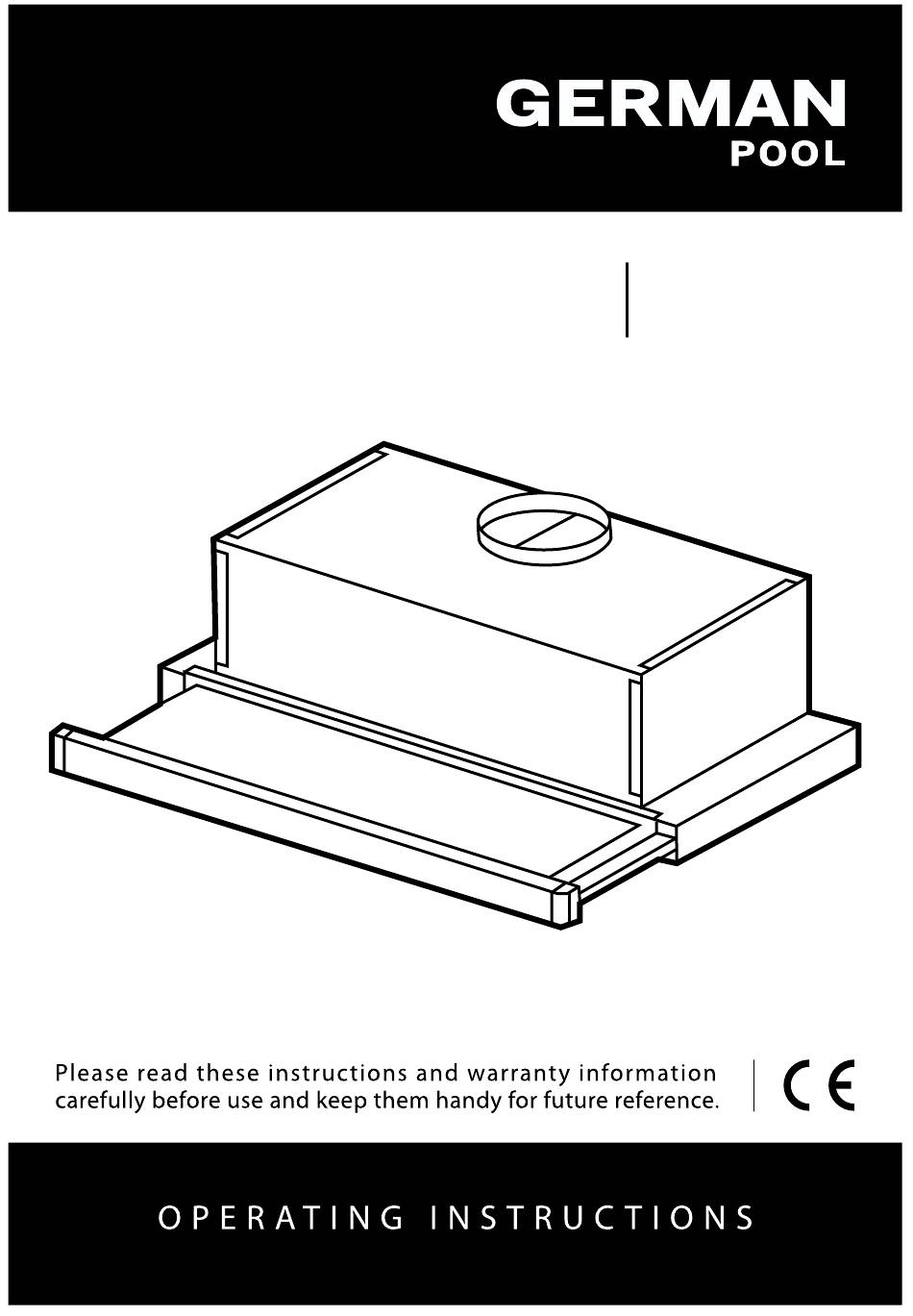

- Page 1 Semi-Integrated Cooker Hood...
-
Page 2: Table Of Contents
INDEX RECOMMENDATIONS AND SUGGESTIONS ........................3 CHARACTERISTICS ................................6 INSTALLATION..................................7 USE ......................................9 MAINTENANCE ................................... 10... -
Page 3: Recommendations And Suggestions
RECOMMENDATIONS AND SUGGESTIONS The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance. INSTALLATION • The manufacturer will not be held liable for any damages resulting from incorrect or improper installation. - Page 4 • If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled. • Use only screws and small parts in support of the hood. Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
- Page 5 • “CAUTION: Accessible parts may become hot when used with cooking appliances.” MAINTENANCE • Switch off or unplug the appliance from the mains supply before carrying out any maintenance work. • Clean and/or replace the Filters after the specified time period (Fire hazard). •...
-
Page 6: Characteristics
CHARACTERISTICS Dimensions Ø 125 / Ø 152 Components Ref. Q.ty Product Components Hood Body, complete with: Controls, Light, Blower, Filters Directional Air Outlet grille Reducer Flange Ø 125 / Ø 152 Closing element Ref. Q.ty Installation Components Screws 4,2 x 44,4 Screws 4,2 x 12,7 Screws 2,9 x 9,5 Q.ty Documentation... -
Page 7: Installation
INSTALLATION Drilling the Support surface and Fitting the Hood SCREW FITTING • The hood support surface must be 135 mm above the bottom surface of the wall units. • Drill the support with a ø 4,5 mm drill bit, using the drilling template provided. - Page 8 Connections DUCTED VERSION AIR EXHAUST SYSTEM When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe ø 152mm or ø125 mm, the choice of which is left to the installer. • To install a ø 125 mm air exhaust connection, insert the reducer flange 9 on the hood body outlet.
-
Page 9: Use
Control panel Light Switches the lighting system Light Switches the lighting system on and off. on and off. Motor Switches the extractor motor Motor Switches the extractor motor on and off. on and off. Speed Sets the operating speed of the Speed Sets the operating speed of the extractor:... -
Page 10: Maintenance
MAINTENANCE Grease filters CLEANING METAL CASSETTE GREASE FILTERS • The filters must be cleaned every 2 months, or more frequently in case of particularly heavy use of the hood. Filters can be washed in a dishwasher. • Pull out the sliding suction panel. •... - Page 11 MAINTENANCE Charcoal filter (Recycling version) REPLACING CHARCOAL FILTERS Warning: Turn the lights off and wait until the lamps cool down before you change the odour filter. • These filters are not washable and cannot be regenerated, and must be replaced approximately every four months or more frequently by particularly heavy use.
- Page 12 Lighting LIGHT REPLACEMENT 28W-40W light. • Remove the metal grease filters. • Unscrew the bulbs and replace them with new ones having the same characteristics. • Replace the metal grease filters. Lamp Power (W) Socket Voltage (V) Dimension (mm) ILCOS Code HSGSB/C/UB-28-220/240-E14 220 –...
- Page 13 請即進行保用登記﹗ 有關保用條款細則，請看本說明書最後一頁。 Please register your warranty information now! For Warranty Terms & Conditions, please refer to the last page of this user manual.
- Page 14 Notes...
- Page 15 - the serial number is modified, damaged or removed from the product. - 機身編號被擅自塗改、破壞或刪除。 4. German Pool will, at its discretion, repair or replace any defective part. 4. 總代理有權選擇維修或更換配件或其損壞部份。 5. This warranty will be void if there is any transfer of 5.
- Page 16 傳真 Fax: +86 757 2980 8318 HONG KONG TOP BRAND TEN YEAR ACHIEVEMENT AWARD © 版權所有。未獲德國寶授權，不得翻印、複製或使用本說明書作任何商業用途，違者必究。 © All rights reserved. Copying, reproducing or using the contents of this manual is not allowed without prior authorization from German Pool, violators will be prosecuted. A70-M-20(4)
