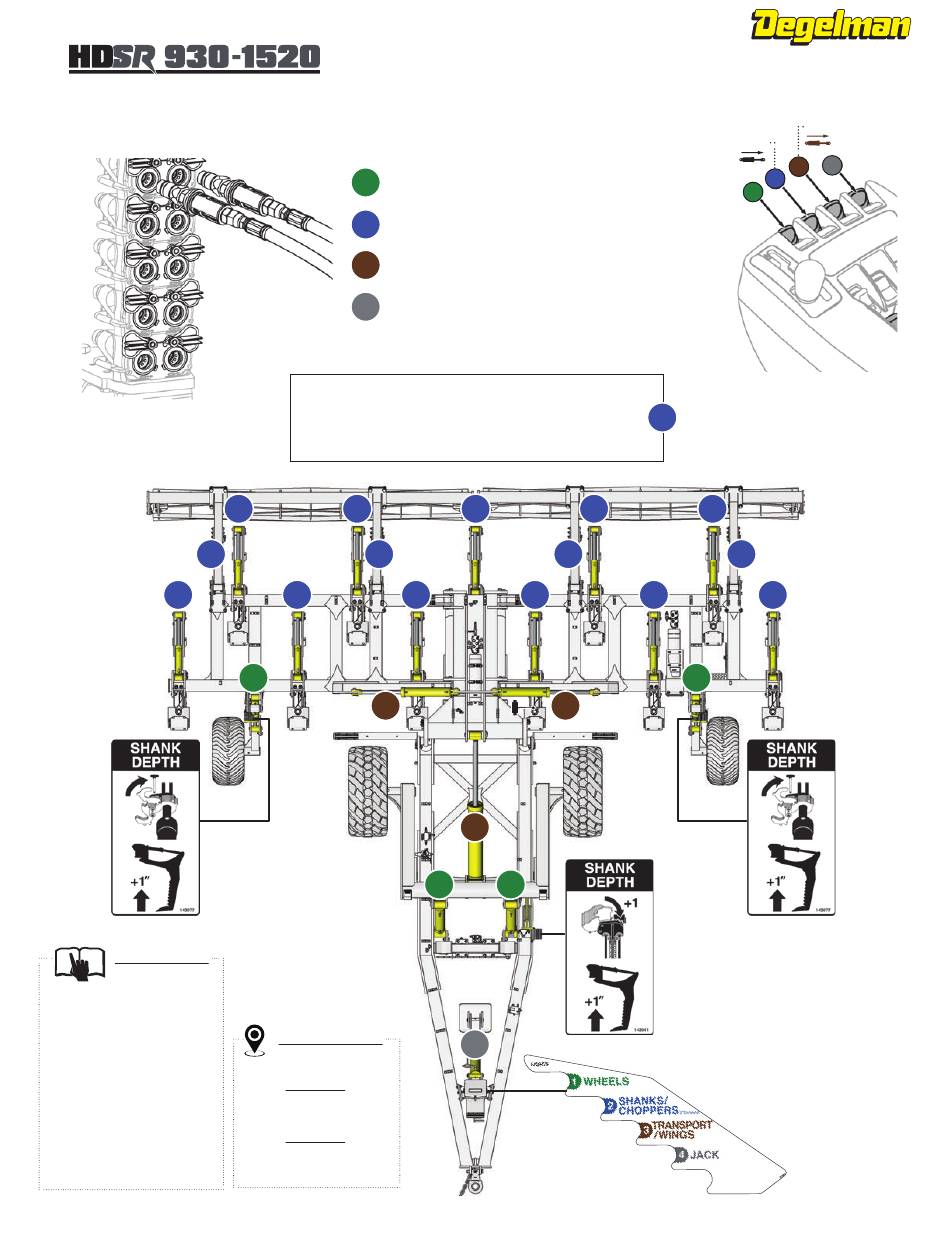

Degelman HDSR Series Quick Start Manual

QUICK-START GUIDE
for
A
Connect Hydraulics
2
2
Maintenance
(Check Machine Daily)
• Hydraulic Connections/Hoses
• Working points & pins
• Hubs, Spindles, & Tire Pressure:
- Wheels: 45 PSI (310 kPa)
• Torque wheel nuts:
- 185-190 ft.lbs (250-258 Nm)
• Torque shank mount U-bolts:
- 500 ft.lbs (678 Nm)
• Check for missing, worn or
damaged parts.
• Grease wing pivot bushings, park
jack & spring trips (if equipped).
*
WHEELS
1
SHANKS/CHOPPERS
2
TRANSPORT/WINGS
3
JACK
4
IMPORTANT: The Shank Circuit includes a Pressure Reducing Valve.
Operator must engage shank circuit hydraulics constantly in the
extended direction to ensure constant shank pressure.
Adjust shank circuit and transport circuit flow down to 20-30%
to reduce heat build-up.
2 2
2
2 2
1
3
GPS Reference
(Start with 6" offset,
adjust as needed)
30" Spacing
9 Shank - 270" (6.86m)
11 Shank - 330" (8.38m)
20" Spacing
13 Shank - 260" (6.60m)
15 Shank - 300" (7.62m)
2 2
2
2
3
3
1 1
4
CONSTANT
PRESSURE
CONSTANT
PRESSURE
4
3
2
1
(If equipped)
2
2
2
2 2
1
143067 v1.0
