Arturia Moog Modular V User Manual page 98

The sequencer has 8 steps. Each step defines 3 output levels with the help of 3 rotating buttons.
The manager moves from one step to another at each impulse of the sequencer clock or upon the
reception of a signal on the trigger input "next trigger". The led above each of the steps lights up
when active.
It is possible to force the sequencer to initialize itself on a particular step, either by clicking on the
"Forcing" button of the desired step, or through a signal in the associated input trigger.
Every time the sequencer comes to a step, the corresponding trigger output is activated, allowing
the start-up of certain envelopes.
It is possible to remain on a particular step by modifying the "Hold" display. In this case, we need a
certain number of clock impulses from the sequencer (or from the trigger input) equal to the num-
ber indicated to go to the next step.
The rotating selector indicates the next step. It possesses 10 positions, the first 8 represent the
next steps, the ninth is a random selection, and the last is the generator stop.
When this last position is chosen on a step, the sequencer clock is stopped, the manager is reset on
the first step and the outputs set to zero.
At every change of step, a general trigger signal from the sequencer is activated. This output will be
activated at every clock impulse if the "repetition" interrupter is active. In the same manner, there
is no activity from this signal if the "link" interrupter is inactive.
On Line 1
Forcing Trigger Input 1
On Line 2
Forcing Trigger Input 2
On Line 3
Forcing Trigger Input 3
Mode Output 4
Smooth 1
Smooth 2
Smooth 3
Smooth 4
O n Line1
F orcing Trigger Input 1
O n Line2
F orcing Trigger Input2
O n Line3
F orcing Trigger Input3
M ode Output4
98

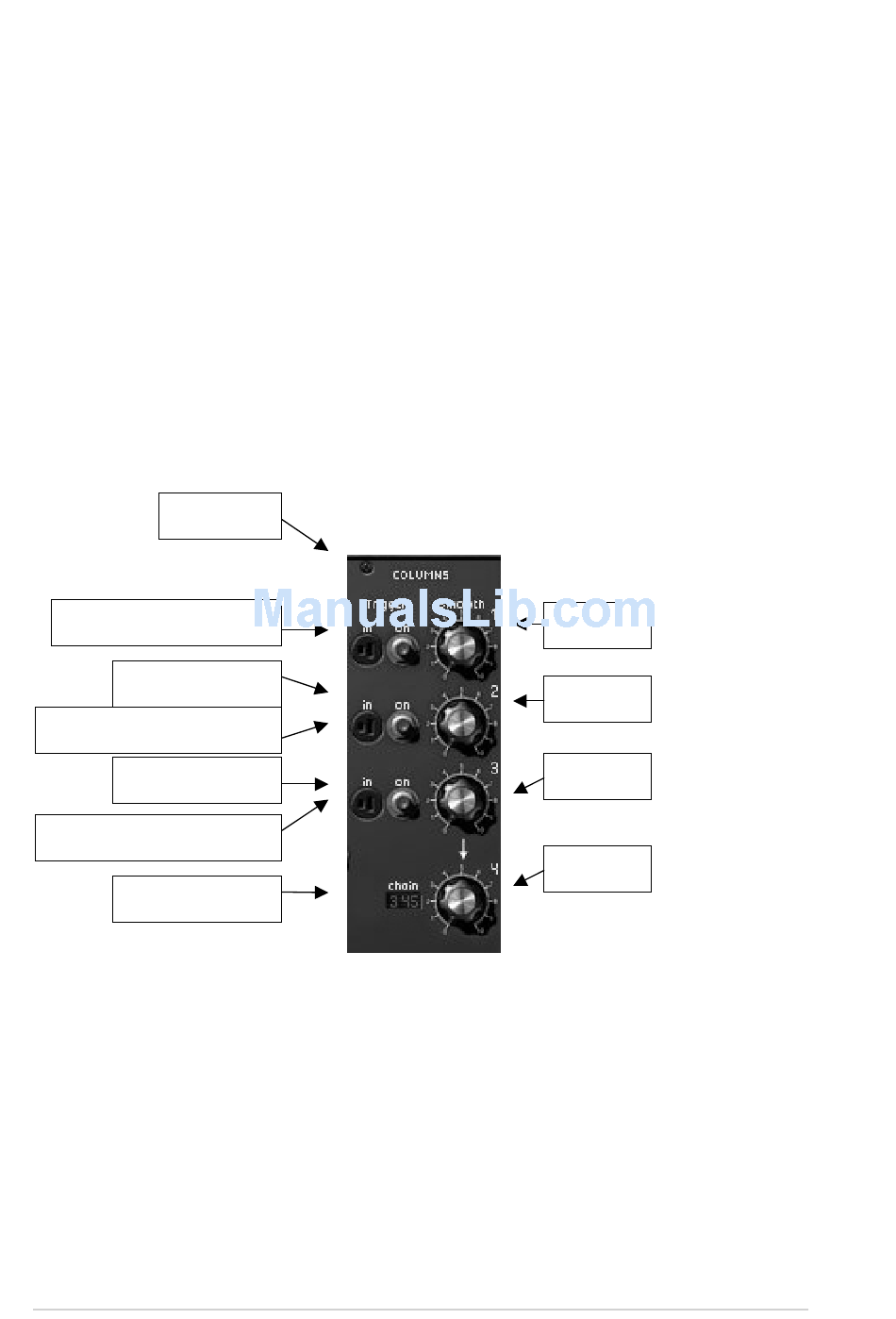

Sequencer outputs
: Sets smooth for output 1
: Sets smooth for output 2
: Sets smooth for output 3
: Sets smooth for output 4
: Forcing of the selection from output 4 to output 1
: Forcing trigger input of the selection from output 4 to output 1
: Forcing of the selection from output 4 to output 2
: Forcing trigger input of the selection from output 4 to output 2
: Forcing of the selection from output 4 to output 3
: Forcing trigger input of the selection from output 4 to output 3
: Choice of progression mode of output 4
