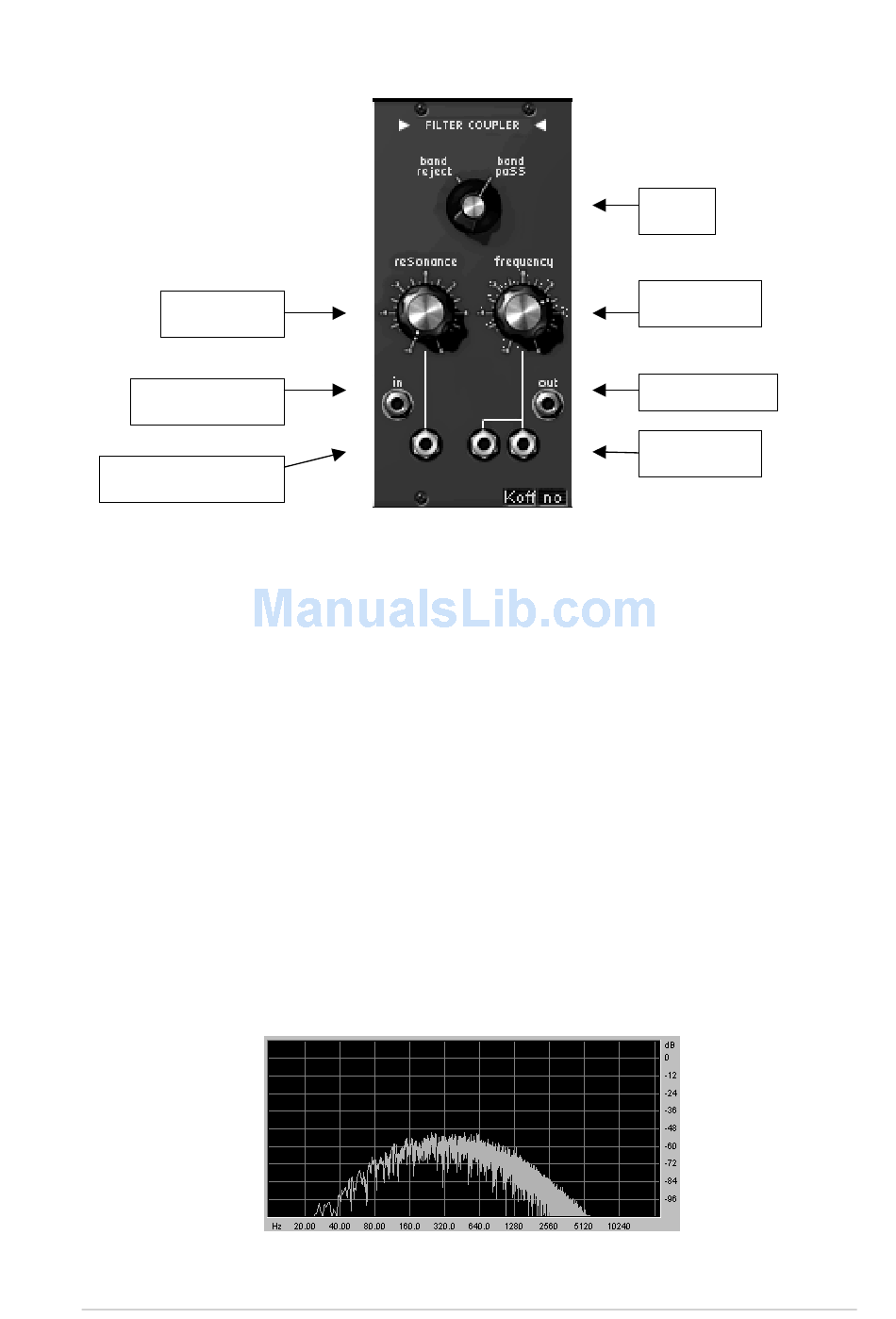

5.1.3.3 Band-pass 24 dB (904C)
Resonance
Audio Input
Mod. Width input
Frequency : Sets the filter cut-off frequency
Resonance : Sets the bandwidth of the filter
: Choice of filter type (band reject or band pass)
Type
: Filter output connection jack
Audio Output
Audio Input : Filter input connection jack
FM Inputs : Frequency modulation input jacks
Mod. Width input : Bandwidth modulation input connection jack
Keyboard follow : Keyboard follows choice tuning the filter (no follow, follow 1,2,3 or 4).
Sequencer Choice : Choice of the sequencer output tuning the filter
(no sequencer, sequencer 1,2,3 or 4).
The 24dB band pass filter resembles the Moog 904C filter, but the difference from it is that while
the Moog 904C is a pairing of the 2 associated low-pass and high-pass filters, this one is independent
of the 2 other filters. The central frequency can be set with the rotating "Frequency" button, the
bandwidth, of 1/3 octave to 3 octaves with the "Resonance" potentiometer. The first modulation
input allows the dynamic modification of the bandwidth, the 2 others, the central frequency.
A "type" selector provides a choice of filtering, band pass or band reject.
The following images represent the spectrum of the band pass and band reject filters where the
central frequency is 500 Hz.
ARTURIA – MOOG MODULAR V – USER'S MANUAL
Band Pass Filter
Band Pass 24 dB/Octave
Type
Frequency
Audio Output
FM Inputs
