7.1.3 Complex patch n°1
Let's continue with a more complex sound using:
• 3 oscillators
• the mixer
• 2 low pass filters
• 2 VCA
•
2 envelopes (1 on each filter)
• 2 LFO
This sound will be polyphonic and constitute a good example of accompaniments with subtle stereo
evolutions.
For the conception of this sound, you can complete the previous patch.
► Start by clicking on the "link" button between the second and third mixer VCA to create the link
between these 3 VCA.
► Then, on this third slice, connect the audio output of the square waveform of the third oscillator.
Notice that filter1 is still connected to the audio output of the first slice of the mixer. As a result, it
now receives the signals coming from the 3 oscillators.
► Again, drag a cable from this same slice towards filter2. This of course was not possible on the
original synthesizer, but here, we can have several connections from the same output.
118

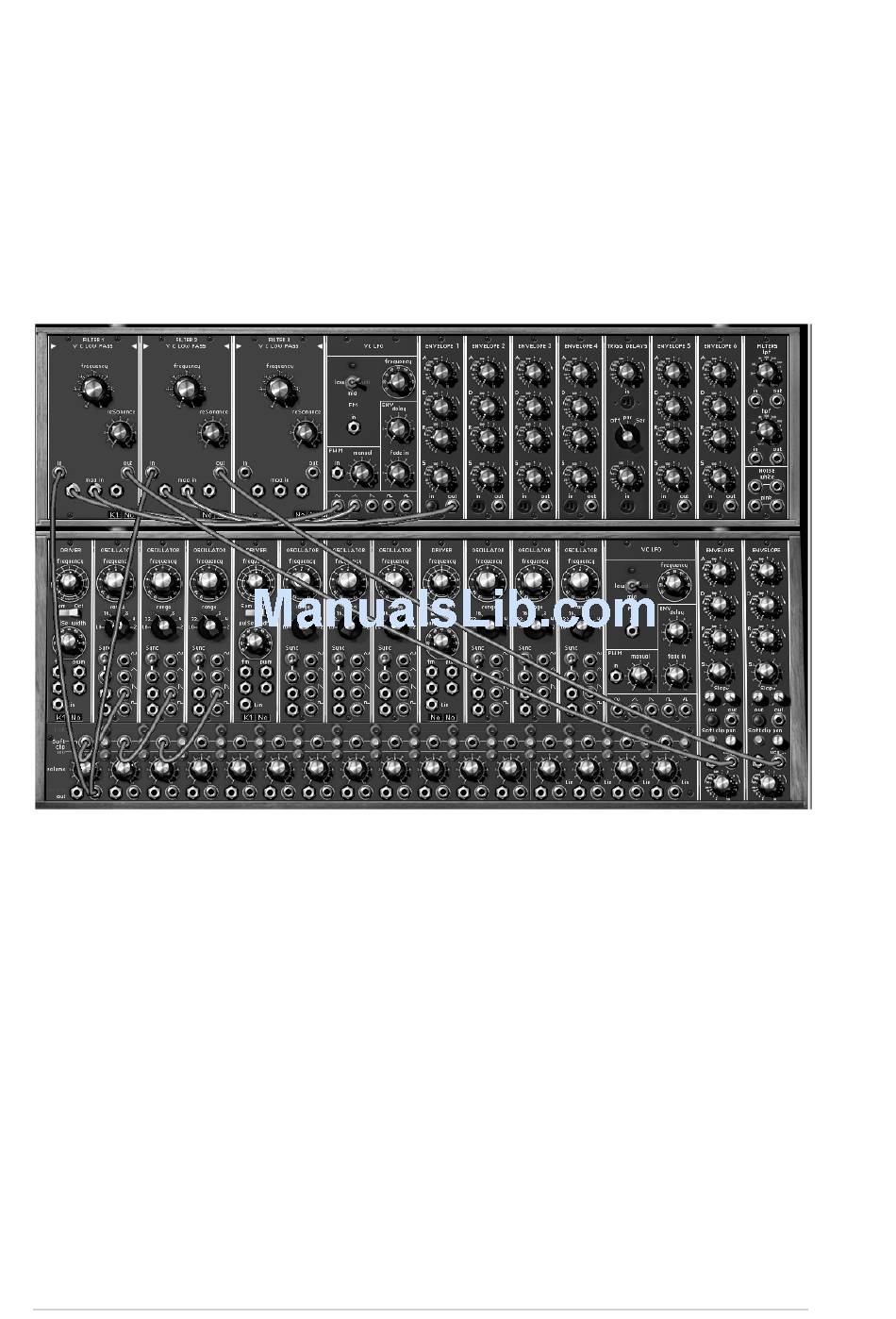

The complete patch
