5.1.13

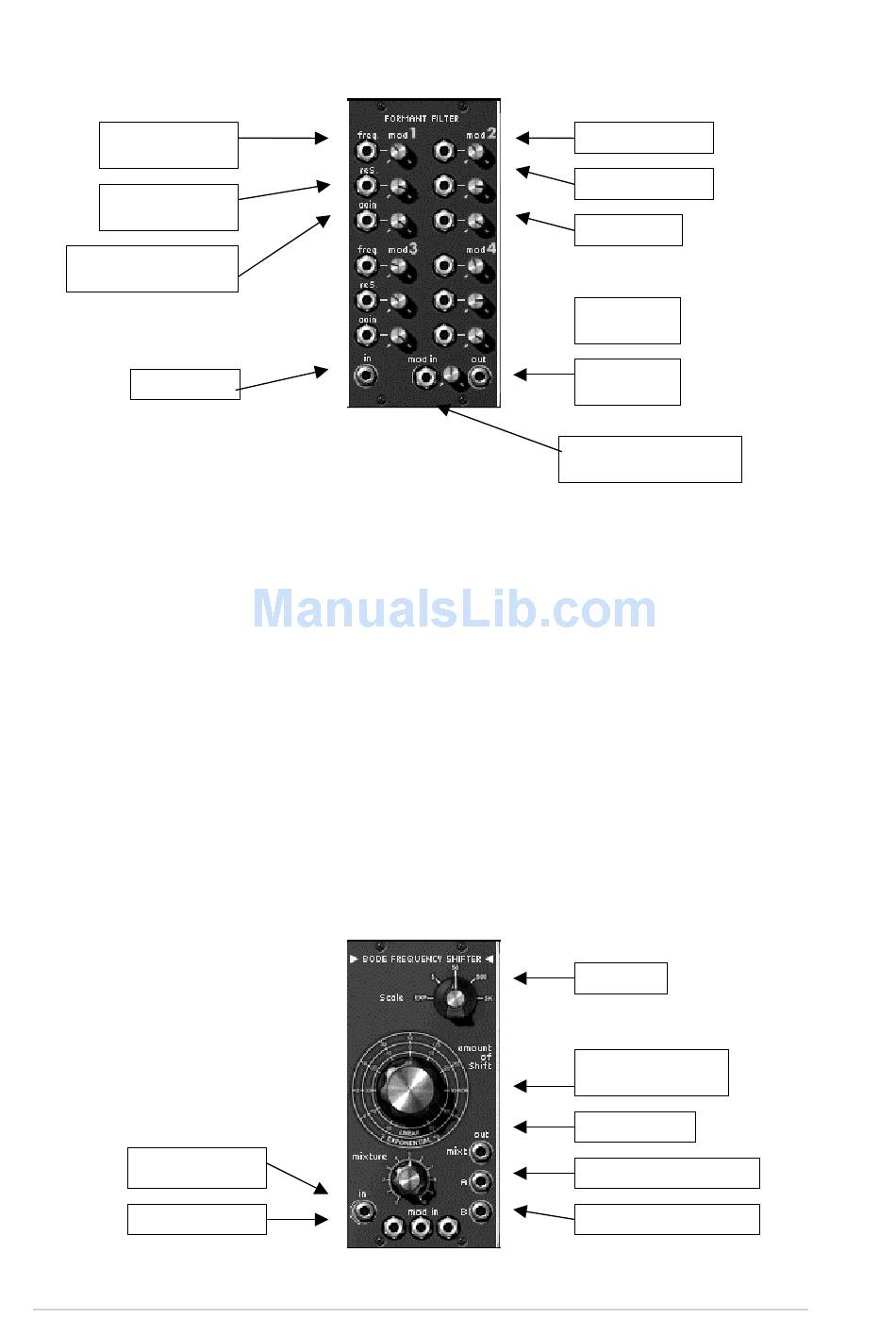

Formant Filter

FM Input
RM Input
Gain Mod Input
Input
Frequency
Resonance
Gain
FM Input
RM Input
GM Input
Vowel
VM Input
This module regroups four bell filters connected in a series. Each filter can be set and modulated,
independently of the others, in frequency, gain and resonance (or bandwidth).
It is possible to preset these four filters to reproduce the formation of a particular vowel with the
"vowel" selection window. This preselection can also be modulated with the associated modulation
input.
The preselection is done before the filter settings. It is thus possible, during a modulation, to make
the vowel evolve, and to gently change the settings.
5.1.14

Bode Frequency Shifter

Audio Input
FM Inputs
90
Formant filter
: Sets the frequency
: Sets the resonance
: Sets the gain
: Frequency modulation connection jack
: Resonance modulation connection jack
: Gain modulation connection jack
: setting of o pre-selected vowel
: Connection jack for the modulation of the vowel pre-selections
Bode frequency shifter
ARTURIA – MOOG MODULAR V – USER'S MANUAL
Frequency
Resonance
Gain
Vowel
Output
Vowel Mod. input
Scale
Amount of Shift
Mixed out
Negative output
Positive output
