1.3.2

Better reproduction of analog wave forms:

Original analog oscillators used condensers' unloading to produce common wave shapes (saw tooth,
triangle, square). This means that waveforms were slightly curved. TAE® allows the reproduction of
Condenser's Unload.

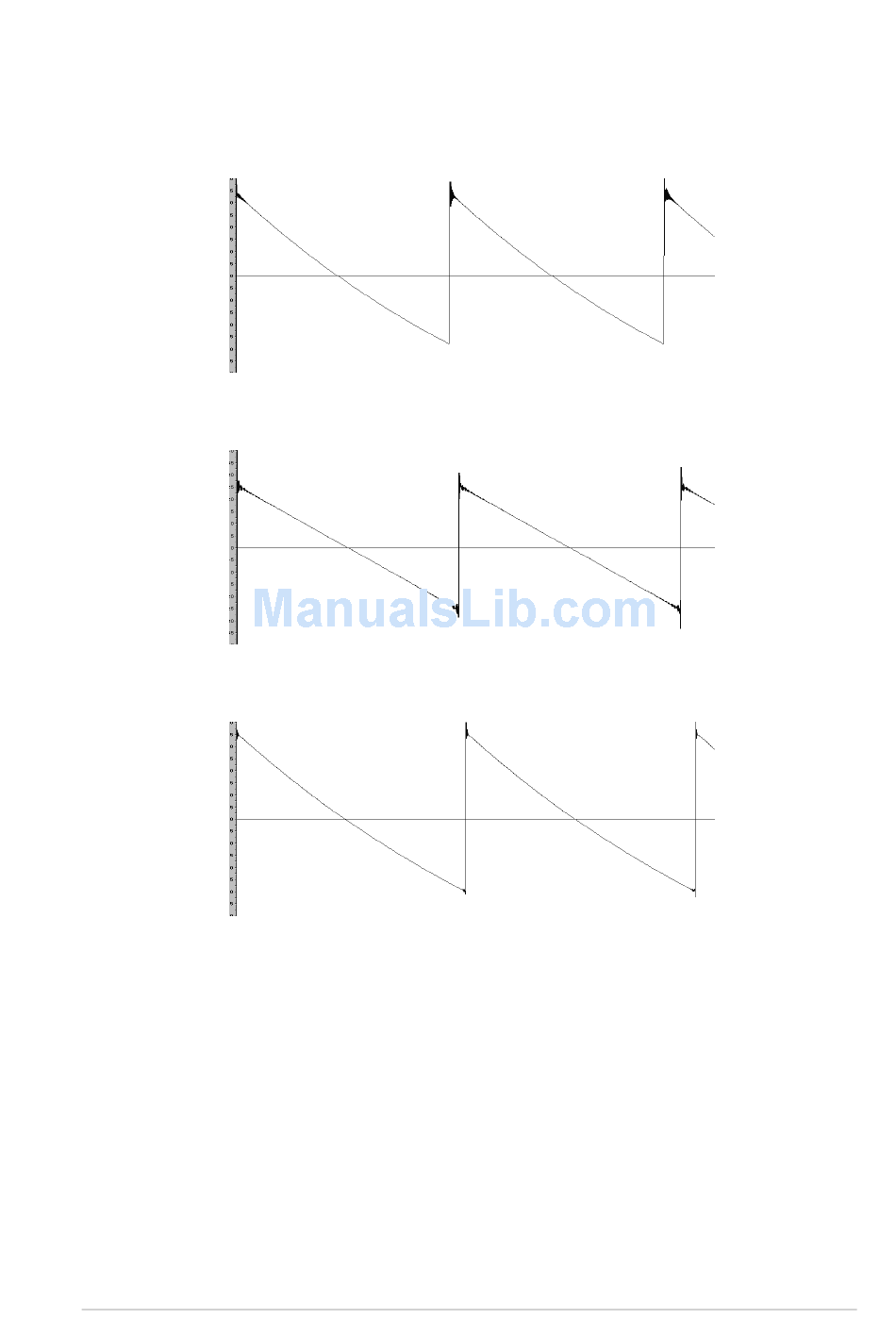

Temporal representation of a waveform on a Modular Moog 55
Temporal representation of the waveform of an existing Moog-like software synthesizer
Temporal representation of the Moog Modular V waveform thanks to TAE
In addition, original analog oscillators were unstable. Actually, their wave shape was always slightly
different from one period to another. In addition, due to analog hardware sensitivities, new period
trigger times varied with the temperature and other environmental conditions.
TAE simulates the instability of oscillators, helping to create warmer and fatter sounds.
ARTURIA – MOOG MODULAR V – USER'S MANUAL 15
