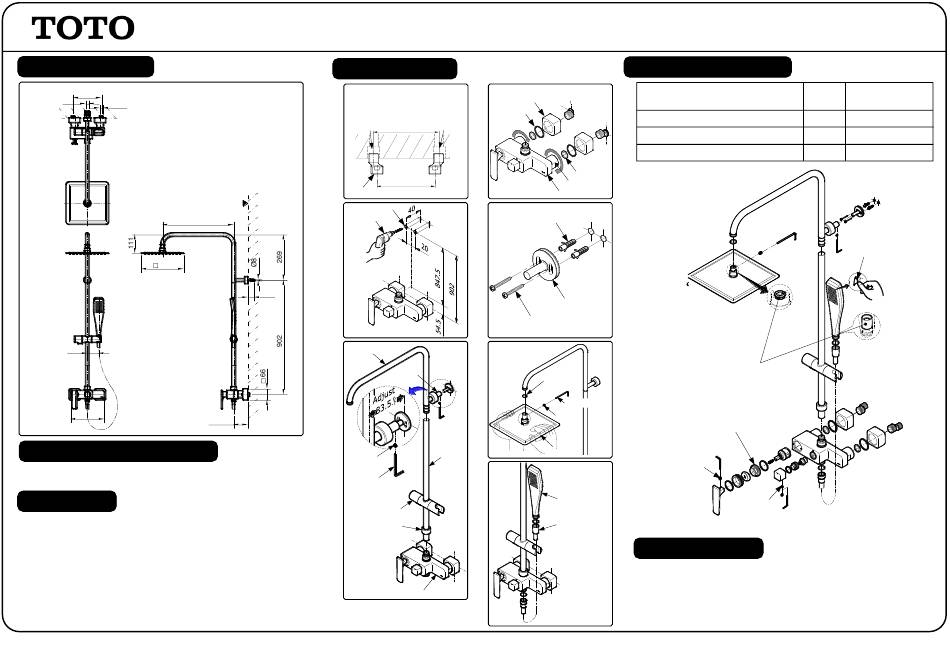

Toto TOJA TX492STZ Manual

SPECIFICATIONS
150±10
20
G½
420
250
67
200
OPERATING CONDITIONS
1. Water supply pressure : 0.05 ~ 0.75 MPa.
2. Ensure that water supply is clean ( No Sand, Dirt, Etc. )
ATTENTION
Don t use abrasive cleaners or solvents on faucets and fittings.
1.
2. Flow Regulator should not be remove because it could damage
the system
3. As the product model is constantly updated, the actual product
may not look the same as it shown in the diagram, but the basic
installation principles are the same.
4. The hot water supply side of the faucets is in a condition of high
temperature. Do not allow skin to contact with the hardware
surface directly. Otherwise,
scalding may occur.
S060208Z
INSTALLATION
1
MOUNT CONNECTORS
PARALLEL WITH THE
Hot
Water
Supply
Leg
WALL
3
2 x Ø8
Drill
40
5
Pipe
0
83.5
-7
Bolt
Hex.
Key
Hanger
Cover
"TOJA" SHOWER COLUMN SET TX492STZ
2
*Tig the n the nut b y wrench.
Cover
O-Ring
WALL
Cold
150±10 Water
Supply
150
Body
4
Sleeve Anchor
Bracket
Screw
6
Holder
Packing
Hex. Key
Bolt
Shower
Head
Pipe
7
Hand
Shower
Flexible Hose
w/ Packing
Body
TROUBLESHOOTING
PROBLEM
Unsatisfactory spray
Water leaks around the handle
Handle is loose
Packing
Nut *
Flow Regulator Inside
(Don t remove)
2. CONNECTING
NUT
3. BOLT
4. BOLT
MAINTENANCE
All Finishes : Clean the finish with mild soap and warm water. Wipe
entire surface completely dry with clean soft cloth. Many cleaners may
contain chemicals, such as ammonia, chlorine, toilet cleaner etc. which
could adversely affect the finish and are not recommended for cleaning
CHECK
SOLUTION
POINT
Clean
1
2 Tighten
3, 4 Tighten
1. NOZZLES
R8
