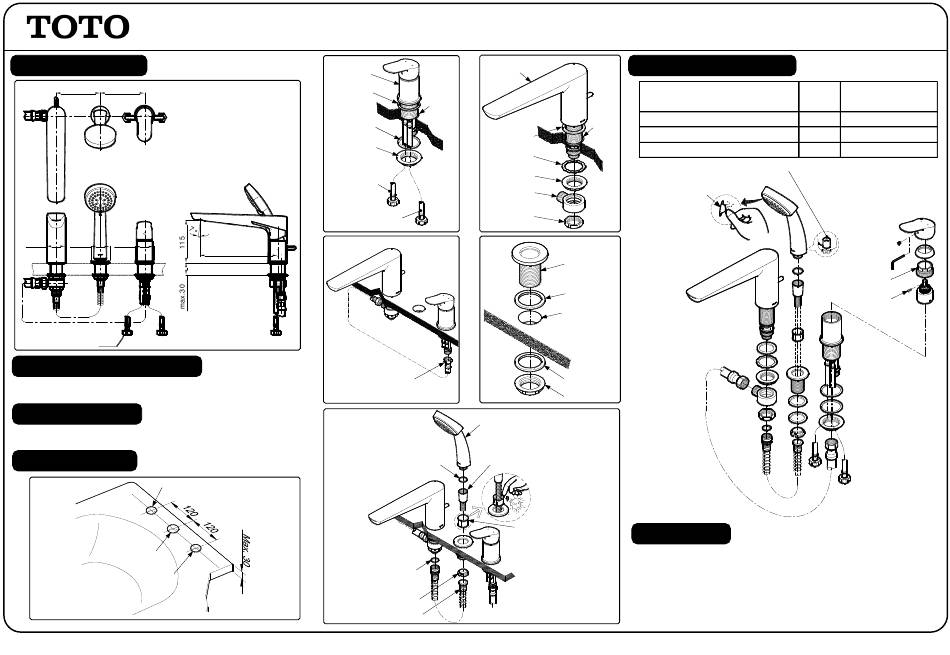

Toto UMI TX496SUN Quick Start Manual

SPECIFICATIONS
120 120
Ø50 Ø50 Ø50
G½
OPERATING CONDITIONS
1. Water supply pressure : 0.05 ~ 0.75 MPa.
2. Ensure that water supply is clean ( No Sand, Dirt, Etc. )
MAINTENANCE
Always wipe chrome plated area with dry soft cloth,
and sometimes wipe it with cloth soaked in mild soap.
INSTALLATION
1
Ø35 Hole
Ø32 Hole
Ø40 Hole
S060446S
2
Body
Packing
Packing
Lock Nut
To Hot
Water
Supply
To Cold
Water Supply
4
210
Flexible Hose
6
Packing
Packing
Stopper
Hose Spring
"UMI" 3 HOLES BATH & SHOWER SET TX496SUN
3
Body
Spout
Ø40
Hole
Ø35
Hole
Packing
Wavy
Washer
Lock Nut
Connector
Nut
c
5
Shower
Holder
Packing
Ø32 Hole
Packing
Nut
Shower
Flexible Hose
Shower Holder
TROUBLESHOOTING
CHECK
PROBLEM
POINT
Unsatisfactory spray
Water leaks around the handle
Handle is loose
Flow Regulator Inside
(Don t remove)
1. NOZZLES
2. CONNECTING
ATTENTION
1. Don t use abrasive cleaning material such as; detergents containing
hydrochloric acids, thinner, polishing powder, and nylon brush.
2. Flow Regulator should not be remove because it could damage the
system
3. As the product model is constantly updated, the actual product may
not look the same as it shown in the diagram, but the basic
installation principles are the same.
SOLUTION
1 Clean
2 Tighten
3 Tighten
NUT
3. BOLT
c
R5
