Toto REI S TX492SRS Quick Start Manual

SPECIFICATIONS
150±10
20
G½
420
Ø250
67
OPERATING CONDITIONS
1. Water supply pressure : 0.05 ~ 0.75 MPa
2. Ensure that water supply is clean ( No Sand, Dirt, Etc.).
MAINTENANCE
All Finishes : Clean the finish with mild soap and warm water. Wipe
entire surface completely dry with clean soft cloth. Many cleaners
may contain chemicals, such as ammonia, chlorine, toilet cleaner etc.
which could adversely affect the finish and are not recommended for
cleaning
S060221Z

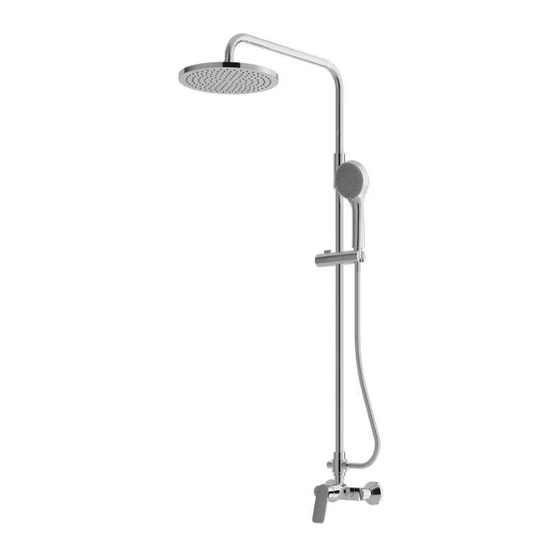

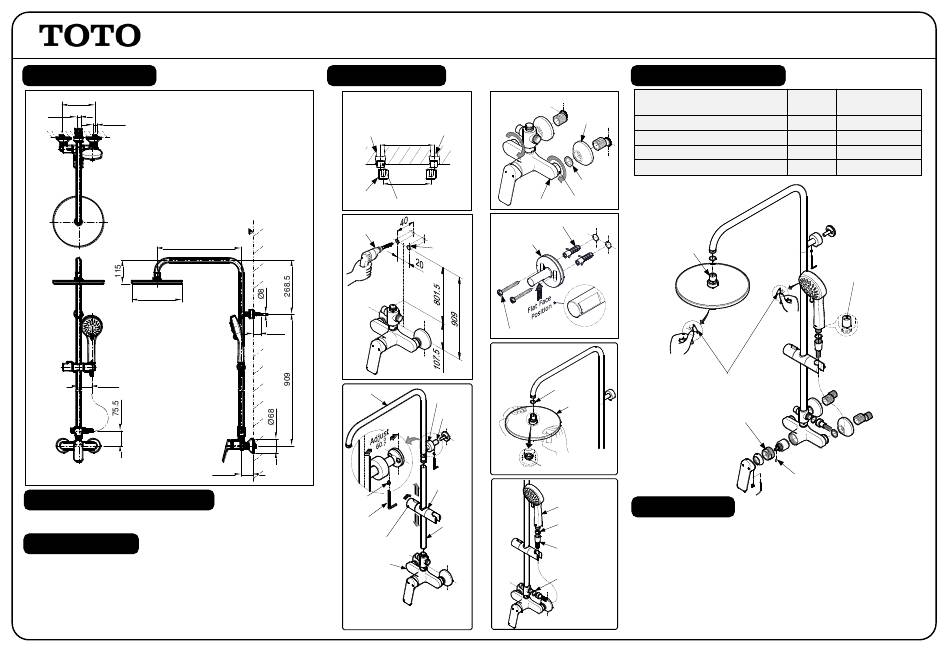

"REI S" SINGLE LEVER SHOWER COLUMN SET TX492SRS
INSTALLATION
1
MOUNT CONNECTORS
PARALLEL WITH THE WALL
Hot
Water
Supply
Leg
3
WALL
Drill
40
5
Pipe
0
60
-7
Bolt
Hex.
Key
Fasten er*
Body
* Turn the fastener to the left to
loosen and right to tighten
2
* Tighten the nut
Cold
Water
Supply
150±10
150
Use Seal tape
Body
(Not Include)
4
Sleeve Anchor
Bracket
2 x Ø8
w/ Oring
Holes
Screw
6
Packing
Shower
Cover
Head
Holder
Flow Regulat or inside
(Don t remove)
7
Hanger
Hand Shower
Packing
Pipe
Flexible Hose
Packing
TROUBLESHOOTING
PROBLEM
Unsatisfactory spray
Cover
Water leaks around the handle
Water leaks around the nut
Handle is loose
Packing
Nut *
3. NUT
1. NOZZLES
2. CONNECTING
NUT
ATTENTION
Don t use abrasive cleaners or solvents on faucets and fittings.
1.
2. Flow Regulator should not be remove because it could damage
the system
3. As the product model is constantly updated, the actual product
may not look the same as it shown in the diagram, but the basic
installation principles are the same.
4. The hot water supply side of the faucets is in a condition of high
temperature. Do not allow skin to contact with the hardware
surface directly. Otherwise,
scalding may occur.
CHECK
SOLUTION
POINT
1 Clean
2 Tighten
3
Tighten
4
Tighten
Flow Regulator
Inside
(Don t remove)
4. BOLT
R9
