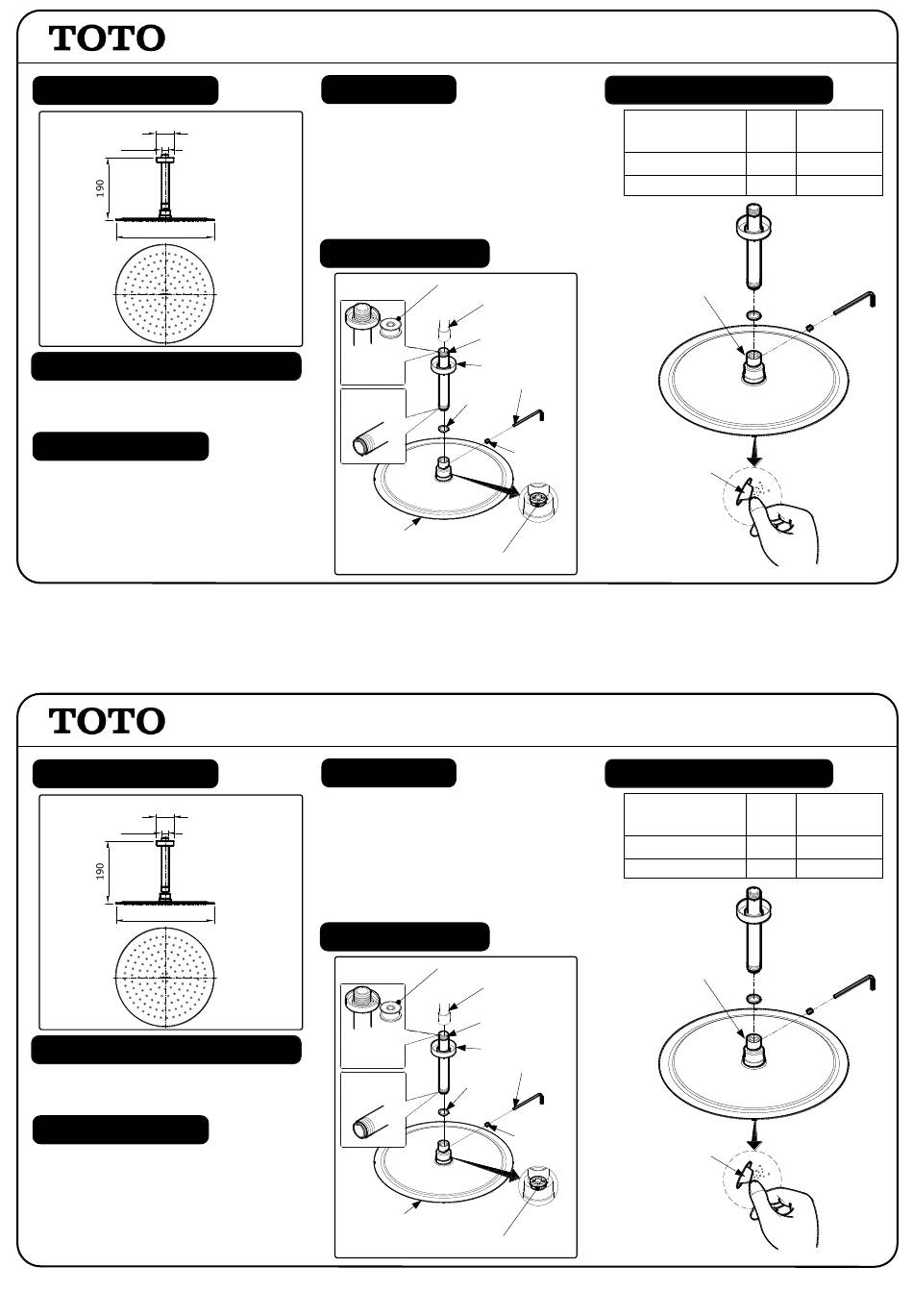

Toto TX491SM Quick Start Manual

SPECIFICATIONS

Ø54
G½
Ø300

OPERATING CONDITIONS

1. Water supply pressure : 0.05 ~ 0.75 MPa.
2. Ensure that water supply is clean
( No Sand, Dirt, Etc.).

MAINTENANCE

All Finishes : Clean the finish with mild soap
and warm water. Wipe entire surface completely
dry with clean soft cloth. Many cleaners may
contain chemicals, such as ammonia, chlorine,
toilet cleaner etc. which could adversely affect
the finish and are not recommended for
cleaning
S06975RR
SPECIFICATIONS
Ø54
G½
Ø300
OPERATING CONDITIONS
1. Water supply pressure : 0.05 ~ 0.75 MPa.
2. Ensure that water supply is clean
( No Sand, Dirt, Etc.).
MAINTENANCE
All Finishes : Clean the finish with mild soap
and warm water. Wipe entire surface completely
dry with clean soft cloth. Many cleaners may
contain chemicals, such as ammonia, chlorine,
toilet cleaner etc. which could adversely affect
the finish and are not recommended for
cleaning
S06975RR
FIXED SHOWER HEAD W/ PIPE
(L= 190 mm, Ø= 300 mm) (CEILING TYPE)
ATTENTION
Don t use abrasive cleaners or solvents on
1.
faucets and fittings.
Flow Regulator should not be discarded
2.
because it could damage the system.
As the product model is constantly updated,
3.
the actual product may not look the same as
it shown in the diagram, but the basic
installation principles are the same.

INSTALLATION

Seal t ape (Not Include)
Wat er Supply
Pipe
use seal tape
Cover
aft er t he cover
w/ O-ring
is attached
Don t tu rn
Packing
upside down
Sho wer Head
Flow Regulator inside
(Don t remove)
FIXED SHOWER HEAD W/ PIPE
(L= 190 mm, Ø= 300 mm) (CEILING TYPE)
ATTENTION
Don t use abrasive cleaners or solvents on
1.
faucets and fittings.
Flow Regulator should not be discarded
2.
because it could damage the system.
As the product model is constantly updated,
3.
the actual product may not look the same as
it shown in the diagram, but the basic
installation principles are the same.
INSTALLATION
Seal t ape (Not Include)
Wat er Supply
Pipe
use seal tape
Cover
aft er t he cover
w/ O-ring
is attach ed
Don t tu rn
Packing
upside down
Sho wer Head
Flow Regulator inside
(Don t remove)

TROUBLESHOOTING

PROBLEM
Unsatisfactory spray
Wat er leaks around t he nut
2. NUT
Hex. Key
Bolt
1. NOZZZL ES
TROUBLESHOOTING
PROBLEM
Unsatisfactory spray
Wat er leaks around t he nut
2. NUT
Hex. Key
Bolt
1. NOZZZL ES
TX491SM
CHE CK
SOLUTION
POINT
1
Clea n
2
Tighten
R8
TX491SM
CHE CK
SOLUTION
POINT
1
Clea n
2
Tig hten
R8
