INSTRUCTION MANUAL

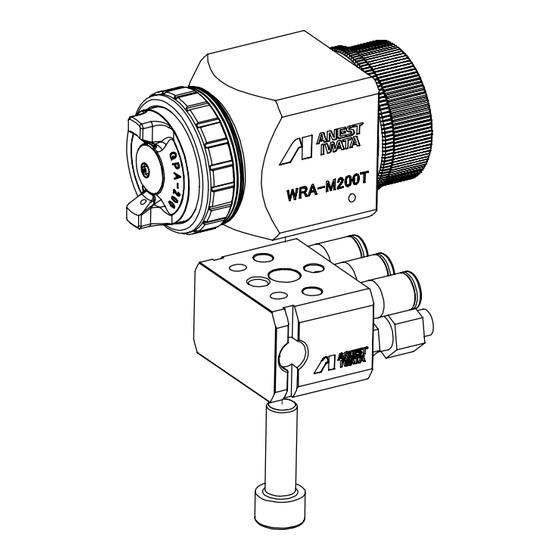

Automatic Spray Gun
Important
This manual contains IMPORTANT WARNINGS and INSTRUCTIONS.
Equipment in this manual is exclusively for painting purposes.
Do not use for other purposes.
The operator shall be fully conversant with the requirements stated in this instruction manual including important warnings, cautions
and operation and correct handling.
Read and understand the instruction manual, before use and retain for reference.
Be sure to observe warnings and cautions in this instruction manual.
If not, it can cause paint ejection and serious bodily injury by drawing organic solvent.
Be sure to observe following
Indicates a potentially hazardous situation which, if not avoided, may result in serious injury or loss of life.
Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury or
property damage.
Indicates notes which we ask you to observe. The safety precautions in this instruction manual are the
minimum necessary conditions. Follow national and local regulations regarding fire prevention, electricity
and safety as well as your own company regulations.
Important specifications
Max. Pressure
Noise level
Max. Temperature
Main specifications
Type of
Model
feed
WRA-M200T10LV6
Pressure
※1
Air pressure means air pressure at gun inlet when air valve is opened and air flows.
WRA-M200T10LV6
marked items which are especially important.
０．６８ ＭＰａ / ６．８ bar / ９８．６ ＰＳＩ
７６．９ ｄ Ｂ （Ａ）
Spray condition ： Recommended
Atmosphere
： ５℃～４０℃
Nozzle
Air cap
orifice
Ass'y
Mark
φ mm (in)
1.0
LPH-200-
(0.039)
LV6
Measuring point ： 1m backwards from gun, 1.6 m height
Air・Fluid
： ５℃～４３℃
Recommended condition
※1 Air pressure
MPa (bar /PSI)
Fluid output
ml/min
Atomizing air
Fan air
0.10
0.10
120
(1.0 / 14.5)
(1.0 / 14.5)
※2
Paint viscosity is 12(s/NK-2)
87
－１ －
Air
Spray
Pattern width
consumption
distance
mm(in)
l/min (cfm)
mm(in)
200
200
250
(7.1)
(7.9)
(9.8)
Mass
g (lbs)
400
(0.88)
Advertisement
Related Manuals for Anest Iwata WRA-M200T10LV6
Summary of Contents for Anest Iwata WRA-M200T10LV6
- Page 1 INSTRUCTION MANUAL WRA-M200T10LV6 Automatic Spray Gun Important This manual contains IMPORTANT WARNINGS and INSTRUCTIONS. Equipment in this manual is exclusively for painting purposes. Do not use for other purposes. The operator shall be fully conversant with the requirements stated in this instruction manual including important warnings, cautions and operation and correct handling.
- Page 2 ■Safety precautions Fire and explosion １. Spark and open flames are strictly prohibited. Paints can be highly flammable and can cause fire. Avoid any ignition sources such as smoking, open flames, electrical goods, etc. ２. Never use the following HALGOGENATED HYDROCARBON SOLVENTS which can cause cracks or dissolution on gun body (aluminum) by chemical reaction.
- Page 3 ・Be careful not to damage the tip of fluid nozzle or must not put your hand on it. ・Only an experienced person who is fully conversant with the equipment can do maintenance and inspection. -Never use commercial or other parts instead of ANEST IWATA original spare parts. -Never immerse the whole gun into liquid such as thinner.
- Page 4 １ Model φ Mark Jam Nut Plug １ 10-4 １ mark mm(in) Piston Cover １ Bolt １ WRA-M200T10LV6 200LV/10 WRA12 (0.039) Oring(white) Auto Gun 8-1 ◆ ２ （※） １ Oring(black) Instruction manual 8-2 ◆ ３ １ Marked parts are wearable parts.
