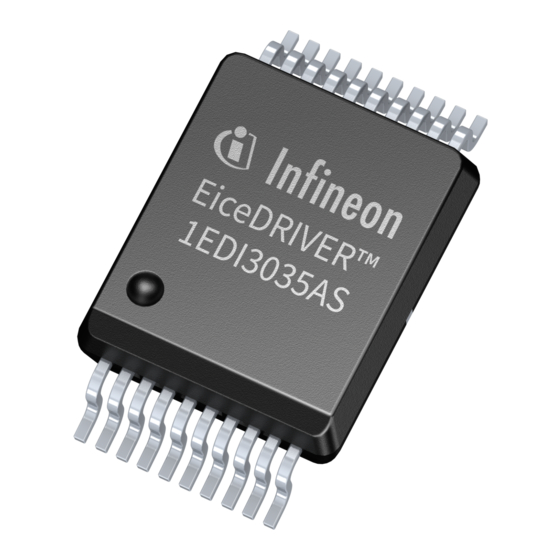

EiceDRIVER™ gate driver 1EDI3035AS, 1EDI3038AS
evaluation board
Preface
Scope and Purpose
This document describes the EiceDRIVER™ gate driver 1EDI3035AS, 1EDI3038AS evaluation board PCB
revision 1.1. Please also refer to the corresponding datasheet.
Intended Audience
This document is intended for engineers who develop applications.
User Manual
Please read the sections "Important notice" and "Warnings" at the end of this document
Rev 1.4
www.infineon.com
2024-04-16
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Infineon 1EDI3035AS
Summary of Contents for Infineon 1EDI3035AS
-
Page 1: Preface
EiceDRIVER™ gate driver 1EDI3035AS, 1EDI3038AS evaluation board Preface Scope and Purpose This document describes the EiceDRIVER™ gate driver 1EDI3035AS, 1EDI3038AS evaluation board PCB revision 1.1. Please also refer to the corresponding datasheet. Intended Audience This document is intended for engineers who develop applications. -
Page 2: Table Of Contents
EiceDRIVER™ gate driver 1EDI3035AS, 1EDI3038AS Evaluation Board Z8F80327778 Table of contents Table of contents Preface ............................1 Scope and Purpose .......................... 1 Intended Audience .......................... 1 Table of contents ..........................2 Safety Instructions ......................... 3 Introduction .......................... 4 General Description ..........................4 EiceDRIVER™... -
Page 3: Safety Instructions
EiceDRIVER™ gate driver 1EDI3035AS, 1EDI3038AS Evaluation Board Z8F80327778 1 Safety Instructions Safety Instructions ELECTRIC SHOCK HAZARD. Contact can cause an electric shock. If a voltage above 60 V is applied to the evaluation board, then only persons trained in working with voltages above 60 V are allowed to handle the evaluation board. -
Page 4: Introduction
Introduction General Description The EiceDRIVER™ gate driver 1EDI3035AS, 1EDI3038AS evaluation board is a versatile evaluation platform. It features a half bridge configuration. There is the option to mount either the FF06MR12A04MA2 HybridPACK™ DSC or a discrete PG-TO247-3 power device, such as the AIMW120R045M1 CoolSiC™ MOSFET. There is also a place holder making the board compatible with PG-TO247-4 packages. -
Page 5: Eicedriver™ Gate Driver Overview
Z8F80327778 EiceDRIVER™ Gate driver overview There is a total of five different devices in this product family: 1EDI3035AS, 1EDI3038AS, 1EDI3025AS, 1EDI3026AS and 1EDI3028AS. Each family member implements a slightly different feature-set and is optimized to target different power switch technologies, whereas the power stage and safety concept is shared between all members. -
Page 6: Operating Modes
Z8F80327778 Operating Modes The EiceDRIVER™ gate driver 1EDI3035AS and 1EDI3038AS offer different operating modes, see Figure 1. They provide diagnostic features and the ability to enter safe state in case of system failure. For more details, please refer to the datasheet. -
Page 7: Block Diagram
EiceDRIVER™ gate driver 1EDI3035AS, 1EDI3038AS Evaluation Board Z8F80327778 Block diagram 2.4.1 1EDI3035AS Figure 2 1EDI3035 block diagram User Manual Rev 1.4 2024-04-16... -
Page 8: 1Edi3038As
EiceDRIVER™ gate driver 1EDI3035AS, 1EDI3038AS Evaluation Board Z8F80327778 2.4.2 1EDI3038AS Figure 3 1EDI3038AS block diagram User Manual Rev 1.4 2024-04-16... -
Page 9: Getting Started
EiceDRIVER™ gate driver 1EDI3035AS, 1EDI3038AS Evaluation Board Z8F80327778 3 Getting Started Getting Started It is recommended to use the evaluation board with the FF06MR12A04MA2 HybridPACK™ DSC or the AIMW120R045M1 CoolSiC™ MOSFET mounted. It can also be used in capacitive load emulation or with any other footprint compatible device [1206(3216)]. For load... -
Page 10: Evaluation Board
PCB Overview Figure 5 shows an overview of the EiceDRIVER™ gate driver 1EDI3035AS/1EDI3038AS evaluation board. A vertical line on the PCB marks the split between primary side and secondary side. The transformer TR1 provides the supply voltages for the secondary side of the gate drivers. -
Page 11: Connectors
4 Evaluation Board Connectors There are connectors on the primary side and on the secondary side of the EiceDRIVER™ gate driver 1EDI3035AS, 1EDI3038AS evaluation board. The board requires a supply voltage of +15 V at the banana sockets on the primary side. -
Page 12: Led Indicators
EiceDRIVER™ gate driver 1EDI3035AS, 1EDI3038AS Evaluation Board Z8F80327778 4 Evaluation Board LED Indicators LEDs on the EiceDRIVER™ gate driver 1EDI3035AS/1EDI3038AS evaluation board indicate board health and driver status, see Figure Dedicated NFLT_x and RDY_x indicator for each driver Primary side supply indicator on VCC Secondary side VCC2 indicator for each driver If the driver pulls the NFLT_x signal to “low”, then the NFLT_x LED is on to indicate a fault. -
Page 13: Operating Conditions
Operating conditions When using the 1EDI3035AS, 1EDI3038AS evaluation board the operating conditions of the board shall be valued. Note that the high voltage capability of the board is derived from the theoretical limit of the components on the board but not guaranteed or tested. -
Page 14: Jumper Configuration
EiceDRIVER™ gate driver 1EDI3035AS, 1EDI3038AS Evaluation Board Z8F80327778 4 Evaluation Board Jumper configuration The EiceDRIVER™ gate driver 1EDI3035AS/1EDI3038AS evaluation board provides the following configuration options: Pullup or remote configuration of SI − Disable DESAT-/OCP-protection on high- or low-side − DC-link measurement with ADC- or SASC-event on low-side −... -
Page 15: Si1 And Si2 Pullup
EiceDRIVER™ gate driver 1EDI3035AS, 1EDI3038AS Evaluation Board Z8F80327778 4 Evaluation Board 4.5.1 SI1 and SI2 PULLUP For test-setups without HV-connections and without a second input voltage, set Jumper 1 and Jumper 2 in Position 2-3 to reset the driver by pressing the reset button. To change to PWM Enable state, press the reset button once after setting the jumpers. -
Page 16: Si1 And Si2 Remote Reset
EiceDRIVER™ gate driver 1EDI3035AS, 1EDI3038AS Evaluation Board Z8F80327778 4 Evaluation Board 4.5.3 SI1 and SI2 Remote Reset For high voltage testing it is not advised to use the button S1 to reset and transition the device from PWM Disable to PWM Enable mode. -
Page 17: Connect Desat And Ocp To Gnd
EiceDRIVER™ gate driver 1EDI3035AS, 1EDI3038AS Evaluation Board Z8F80327778 4 Evaluation Board For a defined power-down of both gate drivers, ramp-down the voltage on the +15V jack below 13.5V and thus put them into PWM Disable mode. Figure 14 SI1, SI2 Remote 4.5.4... -
Page 18: Aip B And Sascb
EiceDRIVER™ gate driver 1EDI3035AS, 1EDI3038AS Evaluation Board Z8F80327778 4 Evaluation Board 4.5.5 and SASC There is the option to measure the DC-Link voltage via the ADC of the low-side driver or to test the Secondary Active Short Circuit (SASC) functionality. - Page 19 EiceDRIVER™ gate driver 1EDI3035AS, 1EDI3038AS Evaluation Board Z8F80327778 4 Evaluation Board User Manual Rev 1.4 2024-04-16...
-
Page 20: Schematic And Layout
EiceDRIVER™ gate driver 1EDI3035AS, 1EDI3038AS Evaluation Board Z8F80327778 5 Schematic and Layout Schematic and Layout Schematic Figure 17 Driver schematic for board variant “SiC for main inverter” with 1EDI3035AS User Manual Rev 1.4 2024-04-16... - Page 21 EiceDRIVER™ gate driver 1EDI3035AS, 1EDI3038AS Evaluation Board Z8F80327778 5 Schematic and Layout Figure 18 Driver schematic for board variant “SiC for DC/DC” with 2 x 1EDI3038AS User Manual Rev 1.4 2024-04-16...
- Page 22 EiceDRIVER™ gate driver 1EDI3035AS, 1EDI3038AS Evaluation Board Z8F80327778 5 Schematic and Layout Figure 19 Primary and secondary supply schematic User Manual Rev 1.4 2024-04-16...
-
Page 23: Layout
Z8F80327778 5 Schematic and Layout Layout The EiceDRIVER™ gate driver 1EDI3035AS, 1EDI3038AS evaluation board PCB consists of two layers: top and bottom. For ease of use there are no components placed on the bottom side. Figure 20 Assembly top view... - Page 24 EiceDRIVER™ gate driver 1EDI3035AS, 1EDI3038AS Evaluation Board Z8F80327778 5 Schematic and Layout Figure 22 Bottom layer User Manual Rev 1.4 2024-04-16...
-
Page 25: Bill Of Materials
Bill of materials Table 6 Table 7 show the bill of materials for all EiceDRIVER™ gate driver 1EDI3035AS, 1EDI3038AS evaluation board variants as depicted in Table 1. The driver ICs mounted depends on the variant. The power switches are not included. - Page 26 EiceDRIVER™ gate driver 1EDI3035AS, 1EDI3038AS Evaluation Board Z8F80327778 6 Bill of materials R13, R16, R46 RC0603JR-070RL Yageo CRCW08054R70FKEA Vishay R23, R25 RC1206FR-0710RL Yageo R31, R34, R39, R44 RCWE0603R150FKEA Vishay-Dale R32, R41 CRCW06033K65FKEA Vishay-Dale R33, R43 CRCW0603100KFKEA Vishay-Dale CRCW060368K0FKEA Vishay-Dale R36, R45...
- Page 27 EiceDRIVER™ gate driver 1EDI3035AS, 1EDI3038AS Evaluation Board Z8F80327778 6 Bill of materials Table 7 Variant for SiC DC/DC with 2 x 1EDI3038AS Designator Manufacturer Order Number Manufacturer Quantity C1, C19 C0603C103K5RECAUTO Kemet C2, C20 GCM21BR71H105KA03L MuRata C3, C21, C41, C52, C53...
- Page 28 EiceDRIVER™ gate driver 1EDI3035AS, 1EDI3038AS Evaluation Board Z8F80327778 6 Bill of materials R36, R45 CRCW0603820RFKEA Vishay-Dale R37, R38 CRCW120615R0FKEA Vishay-Dale RCWE1206R220FKEA Vishay-Dale R47, R48, R50, R52, R53 CRCW06032K00FKEA Vishay-Dale CRCW06034K32FKEA Vishay R57, R58 CRCW06037K50FKTA Vishay RC0603FR-07100KL Yageo CRCW060334K0FKEA Vishay CRCW06034K53FKEA...
-
Page 29: Restrictions
This evaluation board offers limited features only for evaluation and testing of Infineon products. The evaluation board is neither an end product nor a finished appliance, nor is it intended or authorized by Infineon to be integrated into end products. The evaluation board may not be used in any production system. -
Page 30: Revision History
EiceDRIVER™ gate driver 1EDI3035AS, 1EDI3038AS Evaluation Board Z8F80327778 Revision history Revision history Document Date Description of changes revision 2022-07-19 Created initial draft 2022-08-19 Updated schematics and layout, BOM Minor editorial changes 2022-08-25 Chapter 4.5.3 updated and expanded 2022-10-28 Chapter 2.1 , Chapter 2.2 description updated... -
Page 31: Disclaimer
For information on the types Published by characteristics (“Beschaffenheitsgarantie”) . in question, please contact your nearest Infineon Technologies office. Infineon Technologies AG With respect to any examples, hints or any typical...
