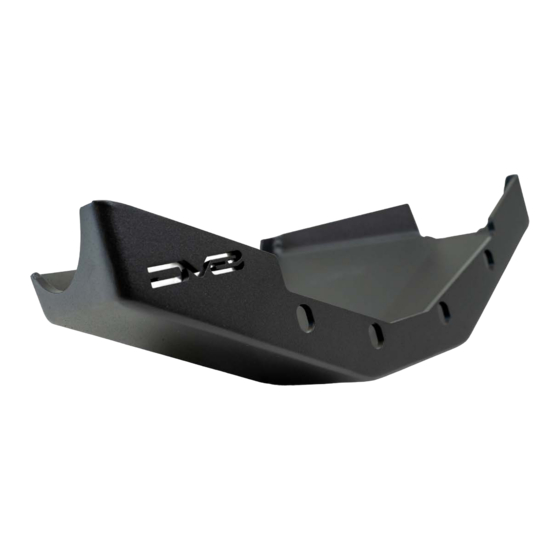

FRONT DIFF SKID
24+ JEEP JL (D44)
SPJL-12
TOOLS
REQUIRED
- 10mm & 16mm Sockets
- Torque Wrench
- Safety Glasses
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
555 E Queen Creek Rd
Bldg A
Chandler, AZ 85286
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 1 (you) to 2 persons
Little skill level required, you can
easily install it by yourself however,
additional help will be useful
Read and understand all
INSTALLATION
PRODUCT
TIME
- 1 Hour
Time to install this should only
take about an hour
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
NEED HELP?
MANUAL
REQUIRED
855-680-9595
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for DV8 OFFROAD SPJL-12
Summary of Contents for DV8 OFFROAD SPJL-12
- Page 1 1. Name of purchase location Customer Service: 855-680-9595 2. Bar Code on side of box DV8 Offroad is not responsible for any bodily injury or harm to you 3. Date above bar code or your vehicle as a result of an improper install.
- Page 2 INSTALLATION MANUAL Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concerns, please contact the company the product was purchased from. Extra hardware may be included with the product. HARDWARE INCLUDED (2) M10x25mm Bolts (2) M10 Lock Washers (2) M10 Flat Washers STEP 1 |...
- Page 3 INSTALLATION MANUAL STEP 2 | Hold the DV8 Diff Skid Plate up to the bottom of the front diff and loosely install the (4) factory diff cover bolts. 855-680-9595 NEED HELP?
- Page 4 INSTALLATION MANUAL STEP 3 | Install the rear diff skid mounting bracket over the top of diff. Loosely secure the rear mounting bracket to the diff skid plate using the provided M10 hardware. Use (1) Spring washer and (1) flat washer per M10 bolt per side STEP 4 | While lifting up on the diff...
- Page 5 INSTALLATION MANUAL STEP 6 | Double check that all hardware is secure. Congratulations, installation of the DV8 Front Diff Skid Plate is now complete. 855-680-9595 NEED HELP?
