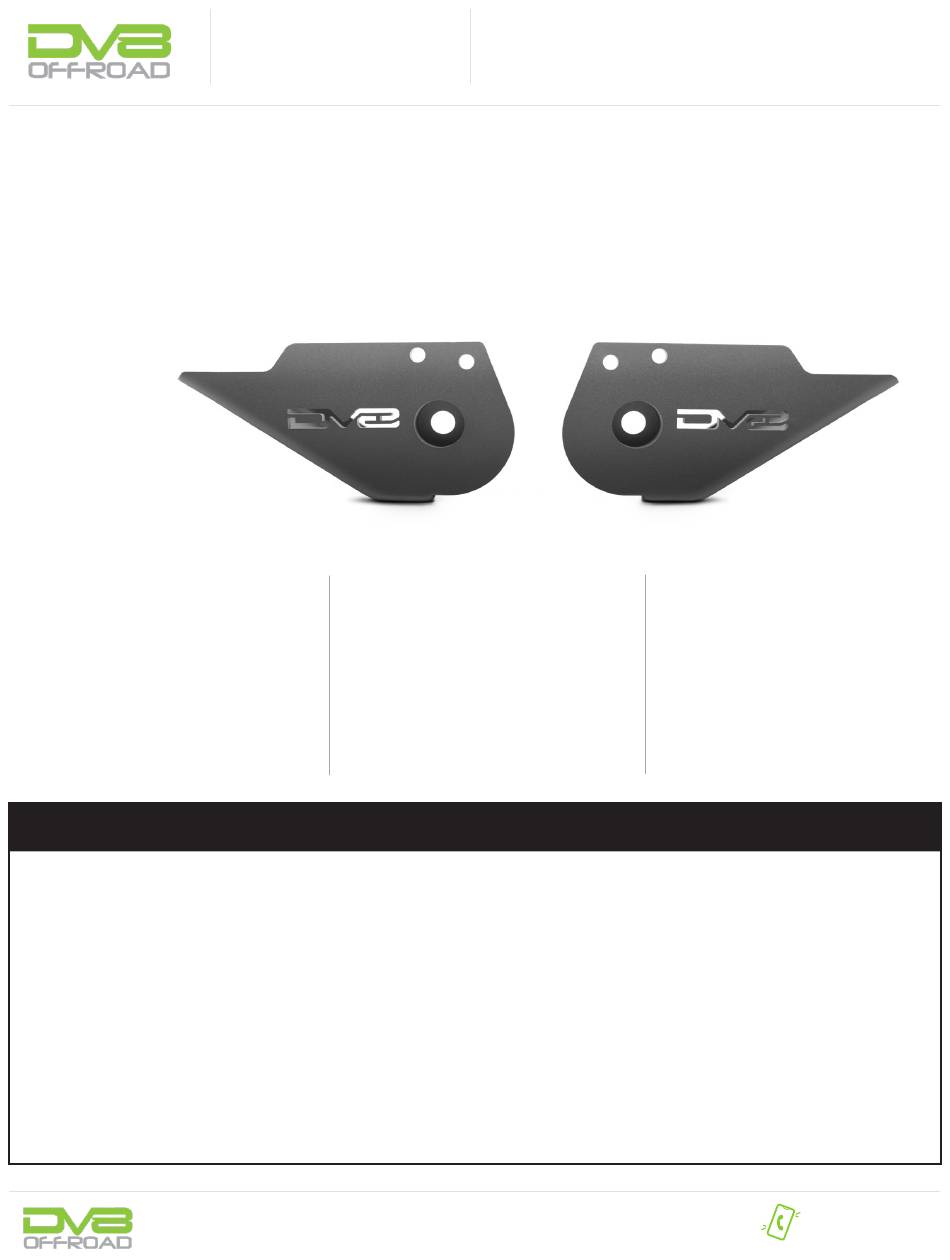

TRAILING ARM SKID PLATES
21-23 FORD BRONCO
SPBR-06
TOOLS
REQUIRED
- T25 "L" Shaped Torx Key (Supplied)
- #6 Allen Head Sockets
- 13mm Socket
- Power Drill
- 25/64" Drill Bit
- Min Sledge/Hammer
- Safety Glasses
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 1 (you)
Little skill level required, you can
easily install it by yourself however,
additional help will be useful
Read and understand all
PRODUCT
INSTALLATION
TIME
- 1 Hour
Time to install this should only
take about an hour
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
NEED HELP?
MANUAL
REQUIRED
855-680-9595
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for DV8 OFFROAD SPBR-06
Summary of Contents for DV8 OFFROAD SPBR-06
- Page 1 1. Name of purchase location Customer Service: 855-680-9595 2. Bar Code on side of box DV8 Offroad is not responsible for any bodily injury or harm to you 3. Date above bar code or your vehicle as a result of an improper install.
- Page 2 INSTALLATION MANUAL Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concerns, please contact the company the product was purchased from. Extra hardware may be included with the product. HARDWARE INCLUDED (4) M10x35mm Bolts (4) M10 Flat Washers (4) M10 Split Washers (4) Aluminum Spacers...
- Page 3 INSTALLATION MANUAL STEP 3 | Using a 25/64” drill bit, bore out the smaller hole on the factory trailing arm mount. Keep drill as straight as possible. STEP 4 | Loosely secure the DV8 Trailing Arm Skid Plate to the trailing arm bolt.
- Page 4 INSTALLATION MANUAL STEP 5 | Using provided spacers, Place the spacers between the factory trailing arm mount and the DV8 Trailing Arm Skid Plate. Pro tech tip: Use provided M10 Hardware to hold spacers in place. STEP 6 | Slide the provided Nut Plate behind the factory trailing arm mount.
- Page 5 INSTALLATION MANUAL STEP 8 | Secure factory torsion bar nut to factory torque specs. Torque to 159 FT-LBS STEP 9 | Passenger side installation ---(Plastic fuel tank skid plate equipped): Using the provided T25 Torx key remove the (2) factory torx screws and plate. NEED HELP? 855-680-9595...
- Page 6 INSTALLATION MANUAL STEP 10 | Passenger side installation (Metal Fuel Tank Skid Plate Equipped): Remove the factory plate gusset located on the inside face of the frame rails. On the passenger side it is located between the frame rail and the gas tank. To access the bolts, the gas tank will be slightly lowered down and slightly swung towards the driver-side.
- Page 7 INSTALLATION MANUAL STEP 12 | Use an 18mm socket to remove the bolt securing the gas under the rear tank skid plate located driveshaft. Set all hardware off to the side for re- installation. STEP 13 | Ensure the bolt above the rear drive shaft is secure, then carefully lower the floor-jack(s) allowing the gas tank/skid to come down and swing to the...
- Page 8 INSTALLATION MANUAL STEP 14 | Use the provided “L” shaped T25 Torx key to remove the (2) factory bolts and then remove the factory plate. NEED HELP? 855-680-9595...
- Page 9 INSTALLATION MANUAL STEP 15 | Use the floor-jack to lift the gas tank/skid-plate back into place, loosely thread all factory tank/skid-plate hardware back into place. There are (6) factory bolts in total to reinstall. Once all hardware is threaded loosely, secure all tank skid-plate hardware using an 18mm socket.
- Page 10 INSTALLATION MANUAL STEP 16 | Some gas tank skid-plates have a lip that sticks out in front of the frame-side control arm mount, this will vary based on the vehicle. Before cut Before cut This lip will need to removed prior to installation.
- Page 11 INSTALLATION MANUAL STEP 17 | Follow steps 1-8 to complete installation of the DV8 Trailing Arm Skid Plate on the passenger side. STEP 18 | Double check at all hardware is secured and both torsion bar nuts are torqued to 159FT-LBS. Congratulations, installation of the DV8 Bronco Trailing Arm Skid Plates is now complete.
