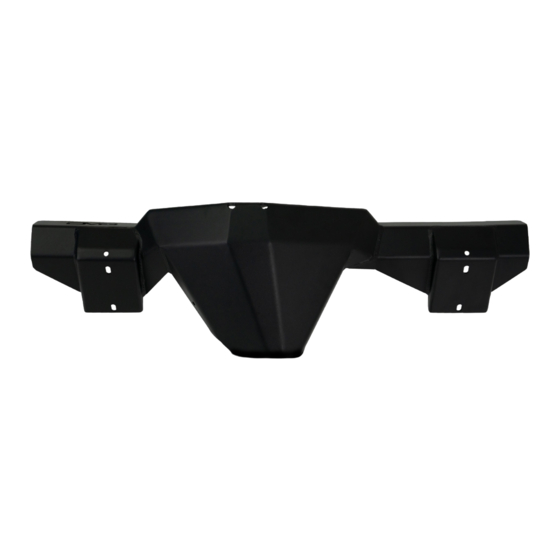

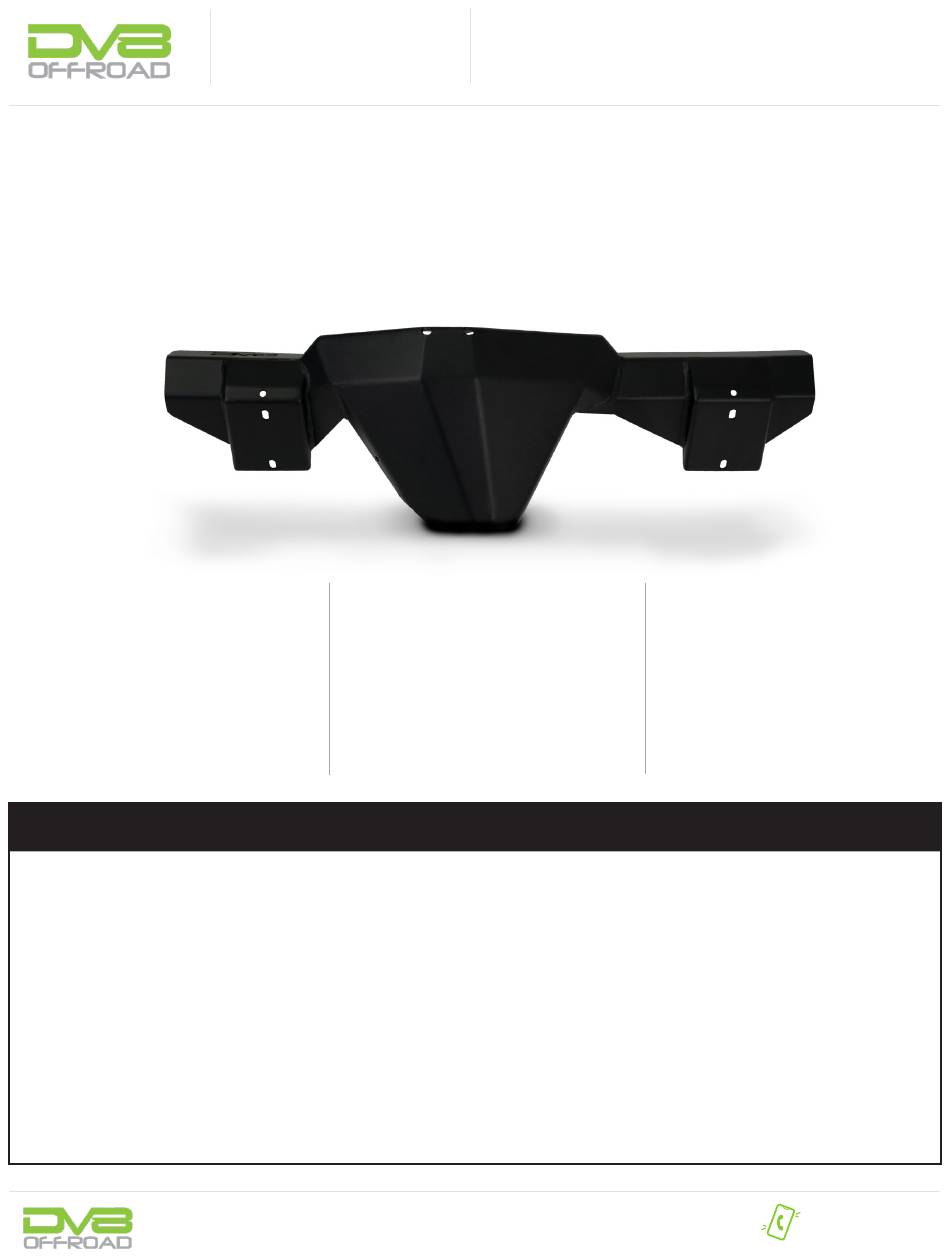

REAR AXLE / DIFFERENTIAL SKID PLATE
21+ FORD BRONCO
SPBR-03
TOOLS
REQUIRED
- Ratchet
- 10mm, 13mm Socket
- 19mm Deep Socket
- #4 Allen Bit
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 1 (you) to 2 persons
Little skill level required, you can
easily install it by yourself however,
additional help will be useful.
Read and understand all
PRODUCT
INSTALLATION
TIME
- 1.5 Hours
Time to install this should only
take about 1.5 hours.
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
NEED HELP?
MANUAL
REQUIRED
855-680-9595
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DV8 OFFROAD SPBR-03
Summary of Contents for DV8 OFFROAD SPBR-03
- Page 1 1. Name of purchase location Customer Service: 855-680-9595 2. Bar Code on side of box DV8 Offroad is not responsible for any bodily injury or harm to you 3. Date above bar code or your vehicle as a result of an improper install.
- Page 2 INSTALLATION MANUAL Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concerns, please contact the company the product was purchased from. Extra hardware may be included with the product. HARDWARE INCLUDED (6) M8x30 (2) M6x20 (2) M8x35 (2) M6 Flat Washers...
- Page 3 INSTALLATION MANUAL STEP 3 | Use a trim clip to remove the lower clipped in bolt/stud. STEP 4 | At this point, with a little force, remove the sway bar and let it hang. NEED HELP? 855-680-9595...
- Page 4 INSTALLATION MANUAL STEP 5 | Use a 13mm socket to remove two factory bolts form the differential cover. STEP 6 | Slide the nut plate behind the track bar mount and use the notches on the nut plate to allow it to rest in place. NEED HELP? 855-680-9595...
- Page 5 INSTALLATION MANUAL Install the skid plate and secure using the provided M8x30 hardware. Torque to 33 ft-lbs. STEP 7 | Hold down the swaybar over the mounting holes, and thread the longest M8x40 hardware through the top mounting hole. If the vehicle does not have a swaybar, use the provided shorter M8x30 hardware.
- Page 6 INSTALLATION MANUAL Hold down the sway bar and use a 13mm socket to secure the upper bolt until the lower mounting holes are lined up. Then, thread the longer M8x35 bolt through the bottom hole. Once all hardware is threaded, finish securing it using a 13mm socket.
- Page 7 INSTALLATION MANUAL STEP 8 | Install the “L” brackets on the diff skid using the provided M6x20 hardware with a #4 allen bit. STEP 9 | Congrats! You are finished with the install of the 21+ Bronco Diff Skid. NEED HELP? 855-680-9595...
