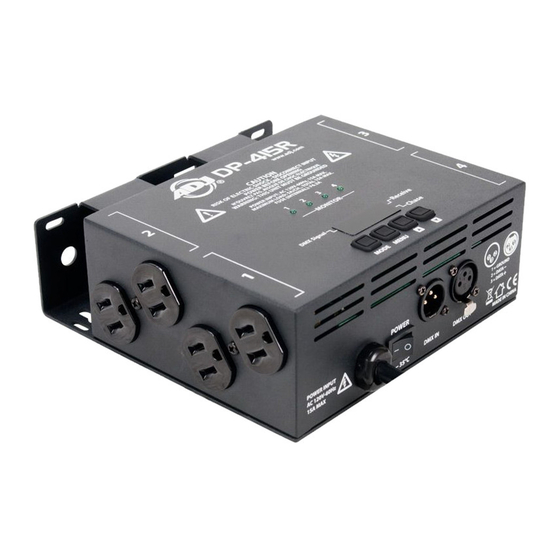

ADJ Products DP-415R 4 Channel DMX512 Dimmer Pack

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DP-415R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ADJ DP-415R

Summary of Contents for ADJ DP-415R

  • Page 1 User Manual of Product 1: ADJ Products DP-415R 4 Channel DMX512 Dimmer Pack...
  • Page 2 DP-415R user manual...
  • Page 3 ©2018 ADJ PRODUCTS LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ logo and identifying product names and numbers herein are trademarks of ADJ PRODUCTS LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.

  • Page 4: Table Of Contents

    C O N T E N T S General Information Limited Warranty Safety Instructions and Guidelines Installation Overview DMX Setup Receive (DMX Control) Mode Chase (Program) Mode Frequently Asked Questions Fuse Replacement Cleaning and Maintenance Technical Specifications Optional Accessories www.adj.com...

  • Page 5: General Information

    G E N E R A L I N F O R M A T I O N INTRODUCTION The ADJ® DP-415R™ is a 4-channel Dimmer/Switch Pack which can be controlled via a standard DMX controller or can be used as a stand-alone 4-channel Chase Pack with 16 internal chase programs.
  • Page 6 REPAIRS YOURSELF; DOING SO WILL VOID THE WARRANTY. DAMAGES RESULTING FROM MODIFICATIONS TO THIS DEVICE AND/OR THE DISREGARD OF SAFETY AND OPERATION INSTRUCTIONS IN THIS USER MANUAL VOIDS THE MANUFACTURES WARRANTY AND ARE NOT SUBJECT TO ANY WARRANTY CLAIMS AND/OR REPAIRS. www.adj.com...

  • Page 7: Limited Warranty

    ADJ Products, LLC be liable for any loss or damage, direct or consequential, arising out of the use of, or inability to use, this product. This warranty is the only written warranty applicable to ADJ Products, LLC Products and supersedes all prior warranties and written descriptions of warranty terms and conditions heretofore published.

  • Page 8: Safety Instructions And Guidelines

    N O T P L U G I N T O D I M M E R P A C K ! DEVICE MUST BE CONNECTED TO AN APPROPRIATE POWER SOURCE IN ORDER TO POWER ANY OF THE AC OUTLETS! www.adj.com...
  • Page 9 B.   Objects have fallen on and/or liquid has spilled into the device. C.   The device has been exposed to rain and/or moisture. D.   The device does not operate normally or exhibits a marked change in performance. www.adj.com...

  • Page 10: Installation

    CLAMP / TRUSS MOUNTING The pack can be mounted to truss or a lighting stand using an ADJ clamp (not included). 1. Attach clamp securely to the mounting hole on the top of the pack using an M M 1 1 0 0 - - 1 1 . . 5 5 screw.

  • Page 11: Overview

    POWER SWITCH – Main power control to the device POWER CABLE – 5 ft (1.5m) Attached power cable to connect to main power source 10. DMX IN – 3pin XLR DMX input signal 11. DMX OUT – 3pin XLR DMX output signal www.adj.com...

  • Page 12: Dmx Setup

    This device requires an approved DMX-512 110 Ohm data cable for signal input and output. We recommend ADJ Accu-Cable DMX cables. If custom DMX cables are being made, make only sure standard 110-120 Ohm shielded cable is used. Cables should be made with a male and female XLR connector on either end of the cable.

  • Page 13: Receive (Dmx Control) Mode

    1, 2, or 4 channel mode. (see LED display images below) Using CH:01 mode groups all 4 output channels together. Using CH:02 mode groups output channels 1 and 2 together and output channels 3 and 4 together. Using CH:04 mode allows individual control of each output channel separately. www.adj.com...
  • Page 14 * * * DO NOT EXCEED MAX 15A / 1,800W Total per unit | 5A / 600W Total per any channel * * * 9. Pack channels can now be controlled via DMX and each channel will function either as a switch (on/off) or as a dimmer (0-100%) according to the mode they were set to in step 5 above. www.adj.com...
  • Page 15 R E C E I V E ( D M X C O N T R O L ) M O D E ADJ DP-415R DMX Channel Values / Functions (4 DMX Channels) CHANNEL MODE VALUE FUNCTION CH:01 CH:02 CH:04...

  • Page 16: Chase (Program) Mode

    5. Set the desired CHASE Program DIMMING by pressing the MENU button once, then pressing the UP or DOWN buttons to set the dimmer from 000 to 100. A value of 000 is blackout and a value of 100 is the brightest dimmer setting. (see LED display image below) d100 www.adj.com...
  • Page 17 9. Pack channels will now chase controlled via the CHASE program selected and each channel will function either as a switch (on/off) or as a dimmer (0-100%) according to the mode they were set to in step 6 above. www.adj.com...

  • Page 18: Frequently Asked Questions

    PCB- TH1 = Channel 1, TH2 = Channel 2, TH3 = Channel 3 and Th4 = Channel 4. Check the relevant channel fuse or fuses and replace if required. The DP-415 incorporates four 6.3A 250V normal blow fuses. Replace rear panel and phillips head screws. www.adj.com...

  • Page 19: Cleaning And Maintenance

    There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local ADJ dealer. Please refer to the following points during routine inspections:  ...

  • Page 20: Technical Specifications

    O P T I O N A L A C C E S S O R I E S ORDER CODE ITEM C-CLAMP MEDIUM DUTY C CLAMP Z-FUSE/GMA-7A 7A FUSE FOR MULTIPLE UNITS AC3PDMX3 3’ (0.9m) 3pin XLR DMX Cable Additional Cable Lengths Available www.adj.com...
