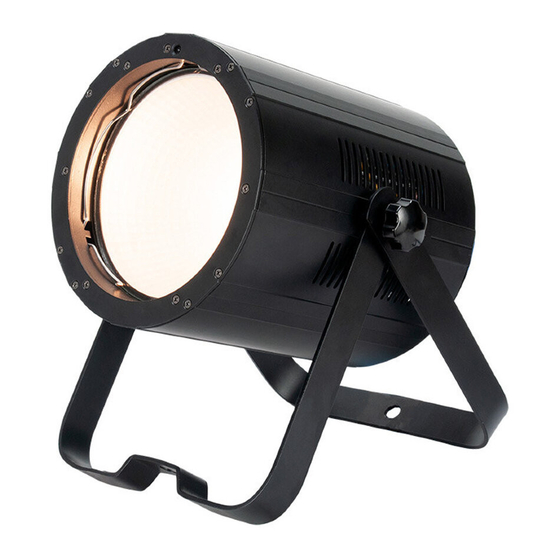

COB CANNON WASH ST DW
User Manual

Advertisement

Table of Contents
loading

Related Manuals for ADJ COB CANNON WASH ST DW

Summary of Contents for ADJ COB CANNON WASH ST DW

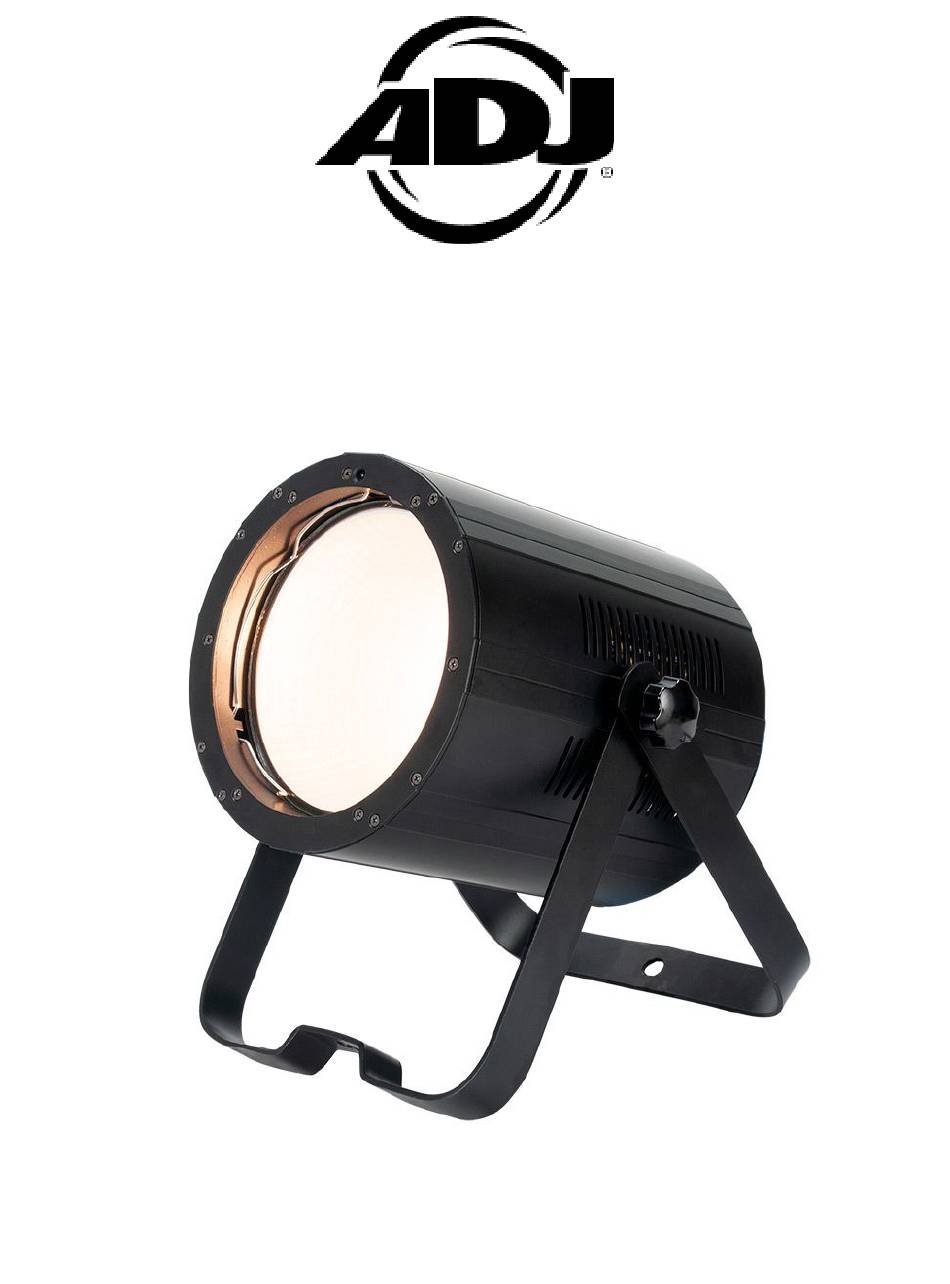

  • Page 1 COB CANNON WASH ST DW User Manual...
  • Page 2 Products, LLC brands and product names are trademarks or registered trademarks of their respective companies. ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS FCC Statement General Information Limited Warranty (USA Only) Safety Guidelines Maintenance Guidelines Overview DMX Setup Installation Instructions System Menu UC IR/Airstream Control DMX Traits Dimmer Curve Chart Multi Unit Power Linking | Primary-Secondary Setup Cleaning and Maintenance | Trouble Shooting Tips Frequently Asked Questions | Optional Accessories Specifications Dimensional Drawings...

  • Page 4: Fcc Statement

    FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two condi- tions: (1) this device may not cause harmful interference, and (2) this device must accept any inter- ference received, including interference that may cause undesired operation. FCC RADIO FREQUENCY INTERFERENCE WARNINGS &...

  • Page 5: General Information

    AV Santa Ana 30 Parque Industrial Lerma, Lerma, Mexico 52000 +52 (728) 282-7070 | ventas@adj.com CUSTOMER SUPPORT Contact ADJ Service for any product related service and support needs. Please visit forums.adj.com with questions, comments, or suggestions. ADJ SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 800-322-6337 | Fax 323-832-2941 | support@adj.com...

  • Page 6: Limited Warranty (Usa Only)

    LIMITED WARRANTY (USA ONLY) A. ADJ Products, LLC hereby warrants, to the original purchaser, ADJ Products, LLC products to be free of manufacturing defects in material and workmanship for a prescribed period from the date of purchase (see specific warranty period on reverse). This warranty shall be valid only if the product is purchased within the United States of America, including possessions and territories.

  • Page 7: Safety Guidelines

    To guarantee smooth operation, it is important to follow all instructions and guidelines in this manual. ADJ PRODUCTS LLC is not responsible for injury and/or damages resulting from the misuse of these devices due to the disregard of the information printed in this manual. Only qualified and/or certified personnel should perform installation of these devices, and only the original rigging parts included with these devices should be used for installation.
  • Page 8 SAFETY GUIDELINES • DO NOT position devices close to any FLAMMABLE MATERIALS during operation. • DO NOT attempt installation and/or operation of devices without knowledge of how to do so. • DO NOT permit operation by persons who are not qualified to operate these types of devices. •...

  • Page 9: Maintenance Guidelines

    Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside these devices. Please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from your local ADJ dealer.

  • Page 10: Overview

    OVERVIEW 1. Display: Show the various menus and the selected functions. 2. Button: MENU Scroll through available functions SET UP Select and configure function Go backward in selected function DOWN Go forward in selected function 3. Fuse: 3 Amps 4. DMX Input/Output: 3-pin In/Out Connection 5.

  • Page 11: Dmx Setup

    DATA CABLE (DMX CABLE) REQUIREMENTS: The COB Cannon Wash ST DW can be controlled via DMX-512 protocol, and has seven DMX chan- nel modes. The DMX address is set electronically using the controls on the rear panel of the unit.
  • Page 12 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the female XLR connec- tor of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part num-...

  • Page 13: Installation Instructions

    INSTALLATION INSTRUCTIONS INSTALLATION This unit should be mounted using a mounting clamp (not provided), affixing it to the mounting bracket that is provided with the unit. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. Always ensure that the structure to which you are attaching the unit is secure and is able to support at least ten (10) times the weight of the unit plus any mounting acces- sories.
  • Page 14 INSTALLATION INSTRUCTIONS OPTIONAL LENS CHANGE The COB Cannon Wash ST DW comes with an 80-degree lens already attached. Included in the box are optional 40 & 50-degree lenses. To switch lenses, follow the steps below: 1. Remove the retainer ring located in front of the current lens.

  • Page 15: System Menu

    SYSTEM MENU MODES The COB Cannon Wash ST DW has 7 modes: 1-channel, 2-channel, 4-channel, 4A-channel, 5-chan- nel, 6-channel, and 7-channel. During operation, the display will lock after 30 seconds. To unlock the display, press and hold the MODE button for 3 seconds.
  • Page 16 SYSTEM MENU MODE SETUP UP/DOWN DESCRIPTION CLxx CL00 ~ CL08 Select from 8 static colors STATIC COLOR Adjust flash speed; FS.00 is off, FS.01 is slowest, FS.xx FS.00 ~ FS.15 SELECT FS.15 is fastest LED display always on dxxx doff LED display off Iron IR remote function on...
  • Page 17 SYSTEM MENU DMX Mode: Operating through a DMX controller gives the user the freedom to create their own pro- grams tailored to their own individual needs. See the DMX Traits section of this manual for detailed information. Press the MODE button to select the DMX mode. DMX Addressing and Channel Mode: This function will allow you to control each individual fixture’s traits with a standard DMX 512 controller.
  • Page 18 SYSTEM MENU Sound Mode: In this mode, the COB Cannon Wash ST DW will react to sound, and chase through the different colors. Press MODE button to select the Sound Active mode. Sound Active mode will be displayed as “SoXX” with “XX” representing Sound Active mode (1-8).

  • Page 19: Uc Ir/Airstream Control

    UC IR/AIRSTREAM CONTROL WIRELESS SETUP There are many factors that can affect and/or interrupt a wireless signal, including walls, glass, metal, objects, and people. Therefore, the following guidelines are recommended in order to maxi- mize the chances of having a clear path for the wireless signal to reach the device: •...
  • Page 20 UC IR/AIRSTREAM CONTROL WIRELESS FUNCTIONS The UC IR (sold separately) infrared remote gives you control of various functions (See below). To control the fixture you must aim the remote at the front of the fixture and be no more than 30 feet away.

  • Page 21: Dmx Traits

    DMX TRAITS CHANNEL FUNCTION VALUES 1-CH 2-CH 4-CH 4A-CH 5-CH 6-CH 7-CH 000 - 255 Cool White, 0% to 100% 000 - 255 Cool White Fine, 0% to 100% 000 - 255 Warm White, 0% to 100% 000 - 255 Warm White Fine, 0% to 100% Variable White 001 - 255 3200K to 6400K Linear Strobe...

  • Page 22: Dimmer Curve Chart

    DIMMER CURVE CHART...

  • Page 23: Multi Unit Power Linking | Primary-Secondary Setup

    MULTIPLE UNIT POWER LINKING With this feature you can connect the fixtures to one another using the power cable input and output sockets. The maximum number of devices that can be linked in this manner is 3 units. NOTE: USE CAUTION WHEN POWER LINKING FIXTURES OF OTHER MODEL TYPES, AS THE POWER CONSUMPTION OF OTHER MODEL FIXTURES MAY EXCEED THE MAX POWER OUTPUT ON THIS FIXTURE! CHECK SILK SCREEN FOR MAX AMPS.

  • Page 24: Cleaning And Maintenance | Trouble Shooting Tips

    Check the fuse and see if it needs to be replaced. • If none of these solutions work, please contact ADJ Customer Service. Unit does not respond to DMX: Check that the DMX cables are connected and wired correctly (pin 3 is “hot”; on some other DMX devices pin 2 may be “hot”).

  • Page 25: Frequently Asked Questions | Optional Accessories

    How many fixtures can be daisy chained together? Up to 3 COB Cannon Wash ST DW units can be daisy chained together. Use caution when linking units of different model types, as the power draw may differ from model to model. Check Silk Screen for Max Amps to ensure the max load capacity is not exceeded.

  • Page 26: Specifications

    SPECIFICATIONS Model COB Cannon Wash ST DW Wattage 155 W Light Source 1 x 150-watt COB Warm White/Cool White LED Voltage AC100V-240V/50Hz-60Hz 80 Degrees (Optional 40-degree and 50-degree Beam Angle lenses included) Working Position Any safe working position Power Cord Daisy Chain 3 fixtures max.

  • Page 27: Dimensional Drawings

    DIMENSIONAL DRAWINGS...
