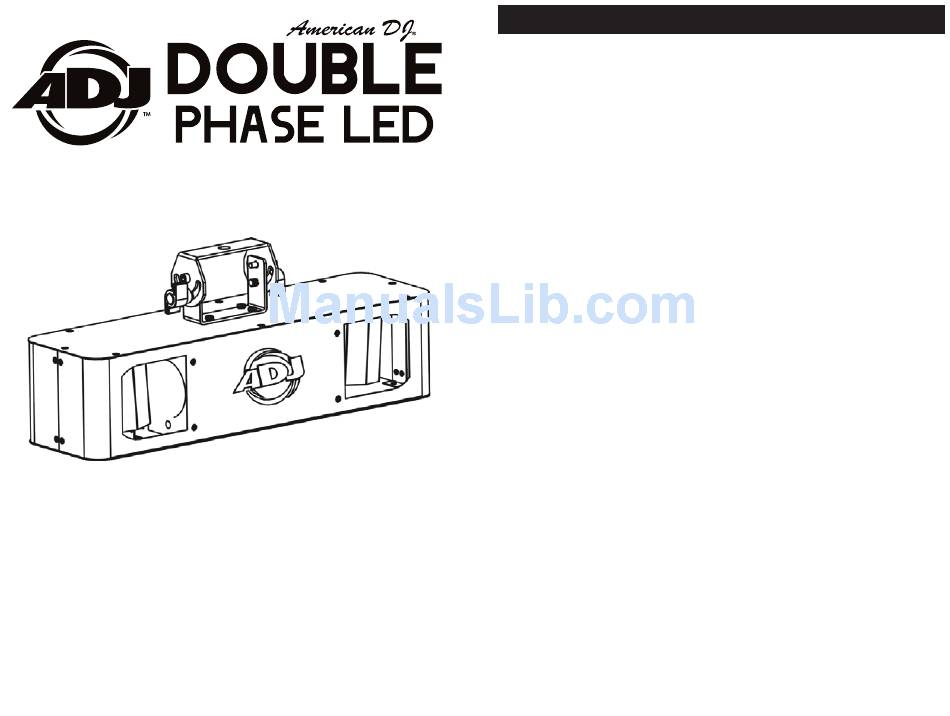

ADJ Double Phase LED User Instructions

User Instructions
Rev. 3/14
Double Phase LED
Unpacking:
Thank you for purchasing the Double Phase LED by
American DJ . Every Double Phase LED has been thoroughly tested
®
and has been shipped in perfect operating condition. Carefully check
the shipping carton for damage that may have occurred during ship-
ping. If the carton appears to be damaged, carefully inspect your fix-
ture for any damage and be sure all equipment necessary to operate
the unit has arrived intact. In the event damage has been found or parts
are missing, please contact our toll free customer support number for
further instructions. Please do not return this unit to your dealer with-
out contacting customer support first.
Introduction:

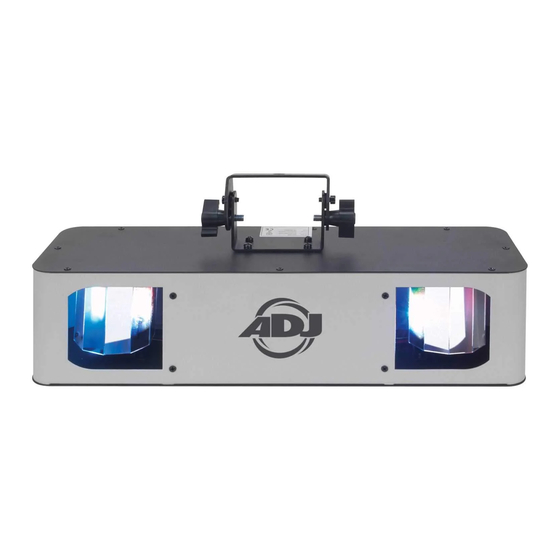

The Double Phase LED is a dual barrel mirrored, DMX
intelligent, 4-in-1 RGBW LED fixture. The Double Phase LED is 6
Channel DMX unit. The fixture can operate in three different operating
modes; show mode, sound-active, or controlled via DMX. The unit can
be used as a stand alone unit or linked in a master/slave configuration.
For best results use fog or special effects smoke to enhance the beams
projections.
Customer Support:
American DJ
support line, to provide help and to answer any question should you
encounter problems during your set up or initial operation. You may
also visit us on the web at www.americandj.com for any comments or
suggestions. Service Hours are Monday through Friday 8:00 a.m. to
4:30 p.m. Pacific Standard Time.
Voice: (800) 322-6337
Fax: (323) 582-2941
E-mail: support@americandj.com
To purchase parts online visit http://parts.americandj.com
Warning!
To prevent or reduce the risk of electrical shock or fire, do
not expose this unit to rain or moisture.
Warning!
This may cause severe eye damage. Avoid looking directly
into the light source at all times!
American DJ - www.americandj.com - Double Phase LED Instruction Manual Page 2
®
General Information
provides a toll free customer
®
