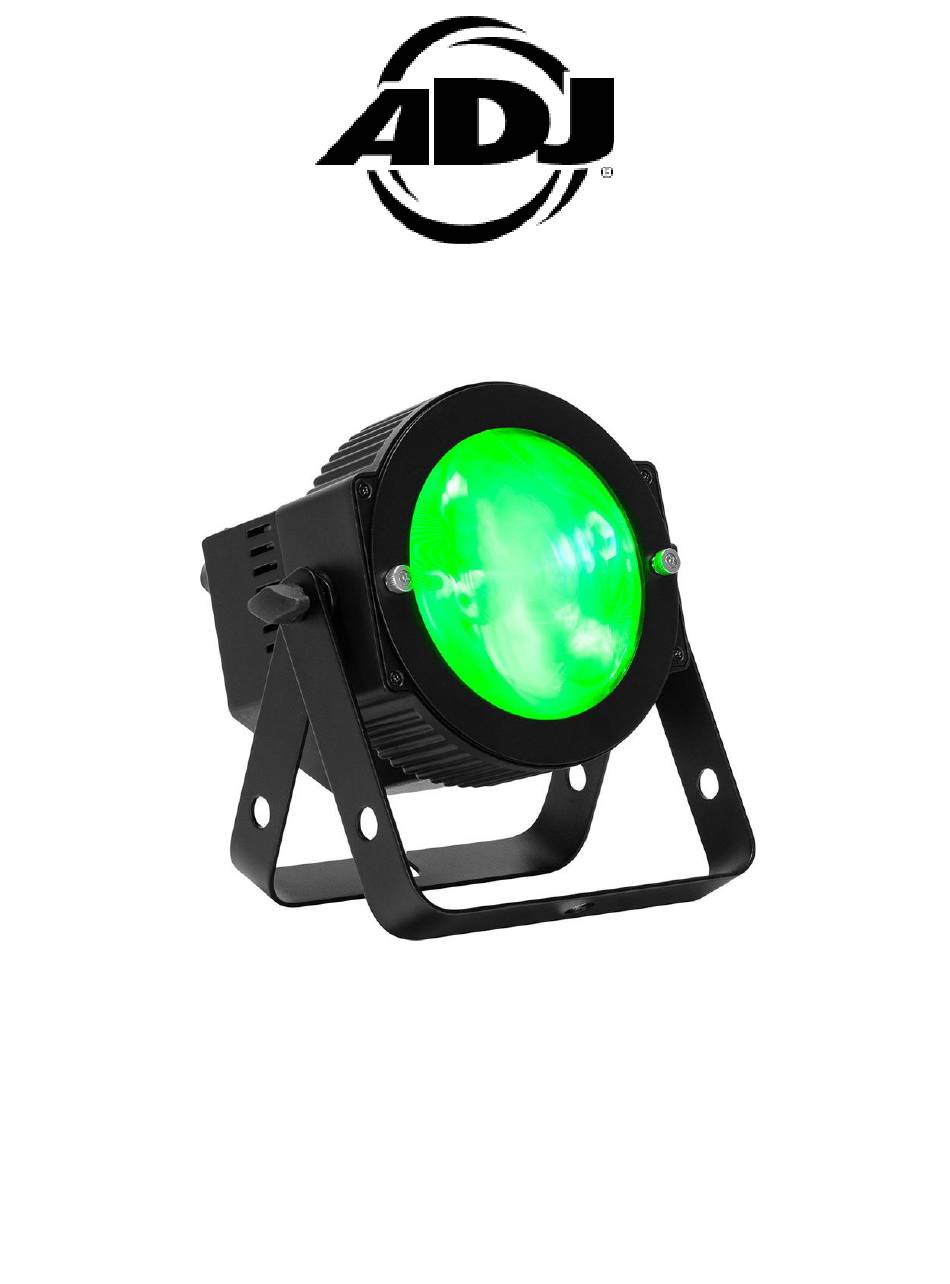

  • Page 1 DOTZ PAR RGBL User Manual...
  • Page 2 ©2024 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying prod- uct names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.

  • Page 3: Table Of Contents

    C O N T E N T S Introduction Limited Warranty (USA Only) Warranty Registration | Features Safety Precautions Overview Installation Accessory Installation Remote Device Management (RDM) Control Panel System Menu DMX Set Up DMX Traits Color Macros Chart Dim Speeds Dim Modes Primary-Secondary Set Up Multi Unit Power Linking | Fuse Replacement...

  • Page 4: Introduction

    I N T R O D U C T I O N Unpacking: Thank you for purchasing the Dotz Par RGBL by ADJ Products, LLC. Every device has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the ship- ping carton for damage that may have occurred during shipping.

  • Page 5: Limited Warranty (Usa Only)

    The sole responsibility of ADJ Products, LLC under this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of ADJ Products, LLC. All products covered by this warranty were manufactured after August 15, 2012, and bear identifying marks to that effect.

  • Page 6: Warranty Registration | Features

    W A R R A N T Y R E G I S T R A T I O N Please fill out the enclosed warranty card to validate your purchase. All returned service items, whether under warranty or not, must be freight pre-paid and accompanied by a return authorization (R.A.) number.

  • Page 7: Safety Precautions

    S A F E T Y P R E C A U T I O N S PROTECTION CLASS 1 - FIXTURE MUST BE PROPERLY GROUNDED. THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT. DO NOT ATTEMPT ANY REPAIRS YOURSELF, AS DOING SO WILL VOID YOUR MANUFACTURER’S WARRANTY.

  • Page 8: Overview

    O V E R V I E W Mounting Bracket POWER IN POWER OUT DMX OUT DMX IN MAX:100-240V 9A AC100-240V 50/60Hz FUSE:T1A/250V DOTZ PAR RGBL Mode Button Button Enter Down Button Button Display Screen Bracket Bracket Adjustment Adjustment Knob...

  • Page 9: Installation

    I N S T A L L A T I O N DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO SO! Fixture MUST be installed following all local, national, and country commercial electrical and construc- tion codes and regulations. When installing the unit, the trussing or area of installation must be able to hold 10 times the weight of the unit and any attached accessories without any deformation.
  • Page 10 I N S T A L L A T I O N CLAMP MOUNTING When mounting the fixture to a truss or any other suspended structure, be sure to secure an appro- priately rated clamp to the hole on the top of the mounting bracket. Insert a bolt of appropriate size through the bottom of the mounting clamp and the hole on the mounting bracket, and secure them together with a matching nut.
  • Page 11 I N S T A L L A T I O N STAND MOUNTING This unit can also be installed atop a tripod stand. Simply secure the Omega bracket to the bottom face of the device, then insert the threaded bolt on the top of the tripod stand through the hole in the Omega bracket.
  • Page 12 LEDs. This issue is not specific only to ADJ lighting fixtures, it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to fully prevent this issue from happening, the guidelines below can prevent any potential damage from occurring if followed.
  • Page 13 I N S T A L L A T I O N The unit is fully operational in three different mounting positions: hanging upside-down from the ceil- ing or trussing, sideways on trussing, or set on a flat level surface. Be sure this fixture is kept at least 12m (40ft) away from any flammable materials (decorations, etc).

  • Page 14: Accessory Installation

    A C C E S S O R Y I N S T A L L A T I O N FROST LENS A removeable frost lens is included with the fixture. To install, insert the two thumb screws on the frost lens into the installation holes on the fixture lens frame, then tighten the thumb screws to secure the frost lens in place.

  • Page 15: Remote Device Management (Rdm)

    R E M O T E D E V I C E M A N A G E M E N T ( R D M ) R E M O T E D E V I C E M A N A G E M E N T ( R D M ) NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems.

  • Page 16: Control Panel

    C O N T R O L P A N E L This unit features a display screen with a 4-button control pad, which can be used to easily adjust any device settings. Pressing the MODE button will cycle through the various Main Menu options. When the desired Main Menu option is displayed on the screen, press the ENTER button to enter the sub-menu, then use the UP and DOWN buttons to scroll through sub-menu options.

  • Page 17: System Menu

    S Y S T E M M E N U Set DMX starting 001 - 512 Address address Select DMX chan- Ch. Mode nel mode 10ch 13ch 16ch Fixture holds last configuration DMX SET Hold received before DMX signal was lost or interrupted Fixture takes all No DMX...
  • Page 18 S Y S T E M M E N U Screen turns off 1 - 10 Save Dlay after selected pe- riod of inactivity Display Screen locks after Off, 1min - 10min Lock selected period of inactivity Calibrate white Red 000 - 255 balance PERSONALITY Green 000 -...
  • Page 19 S Y S T E M M E N U Total lifetime hours that fixture Pwr On Hr 1 xxxxxx Hours has been pow- ered on Hours Hours fixture has Pwr On Hr 2 xxxxxx Hours been powered on since last reset Reset Pwr On Pwr On Rst Passcode = 050...

  • Page 20: Dmx Set Up

    D M X S E T U P DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of commu- nication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions from the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN”...
  • Page 21 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will reduce the risk of erratic behavior. DMX ADDRESSING.

  • Page 22: Dmx Traits

    D M X T R A I T S CHANNEL FUNCTION VALUES 10CH 13CH 16CH Red, 0 - 100% 000 - 255 Red Fine 16-bit 000 - 255 Green, 0 - 100% 000 - 255 Green Fine 16-bit 000 - 255 Blue, 0 - 100% 000 - 255 Blue Fine 16-bit...
  • Page 23 D M X T R A I T S CHANNEL FUNCTION VALUES 10CH 13CH 16CH Dim Mode 000 - 020 Default to Unit Setting 021 - 040 Standard 041 - 060 Stage 061 - 080 081 - 100 Architectural 101 - 120 Theatre 121 - 140 Stage 2...

  • Page 24: Color Macros Chart

    C O L O R M A C R O S C H A R T MACRO NO. DMX VALUES GREEN BLUE LIME 001 - 004 005 - 008 009 - 012 013 - 016 017 - 020 021 - 024 025 - 028 029 - 032 033 - 036...
  • Page 25 C O L O R M A C R O S C H A R T MACRO NO. DMX VALUE GREEN BLUE LIME 153 - 156 157 - 160 161 - 164 165 - 168 169 - 172 173 - 176 177 - 180 181 - 184 185 - 188...

  • Page 26: Dim Speeds

    D I M S P E E D S DMX VALUES DELAY TIME 0.1 sec 0.2 sec 0.3 sec 0.4 sec 0.5 sec 0.6 sec 0.7 sec 0.8 sec 0.9 sec 1.0 sec 1.5 sec 2.0 sec 3.0 sec 4.0 sec 5.0 sec 6.0 sec 7.0 sec...

  • Page 27: Dim Modes

    D I M M O D E S DIMMER DIMMER 100% 100% Time (ms) Time (ms) Rise Time Down Time 0 Sec 0 Sec Rise Time Down Time 0 sec Fade Time 1 sec Fade Time 0 sec Fade Time 1 sec Fade Time Dimming Curve Dimming Curve...

  • Page 28: Primary-Secondary Set Up

    P R I M A R Y - S E C O N D A R Y S E T U P This function allows you to link units together to run in a Primary-Secondary set-up, in which one unit will act as the controlling unit and the others will react to the controlling unit’s built-in programs.

  • Page 29: Multi Unit Power Linking | Fuse Replacement

    M U L T I U N I T P O W E R L I N K I N G This features allows you to connect the fixtures to one another using the power cable input and output sockets. The maximum number of units that can be linked in this manner is as follows: •...

  • Page 30: Maintenance Guidelines

    Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this fixture. Please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from your local ADJ dealer.

  • Page 31: Dimensional Drawings

    D I M E N S I O N A L D R A W I N G S 8.23in (209mm) 7.41in (188.3mm) ø 4.72in (ø 120mm) 5.19in (131.8mm)

  • Page 32: Specifications

    S P E C I F I C A T I O N S SOURCE: CONSTRUCTION / CONNECTIONS: • Light Source: 16 x 3.5-Watt RGBL C.O.B. • Plastic construction LED (4-IN-1: Red, Green, Blue & Lime) • IEC Locking, In/Out Power connectors •...
  • Page 33 This page intentionally left blank.
