Altronix TROVE T2SSK7F8 Installation Manual page 4

T2SSK75F14(D): Access Controller Position Chart for the S2-INST Installation Kit:
1. Align S2-INST mounting holes with pems on TSS2 (Fig. 3, pg. 4).
2. Attach S2-INST to backplane with lock nuts (provided) (Fig. 3a, pg. 4).
3. Mount backplane to enclosure with hardware.
4. Fasten TSS2 backplane to Trove2 enclosure utilizing hardware (provided).

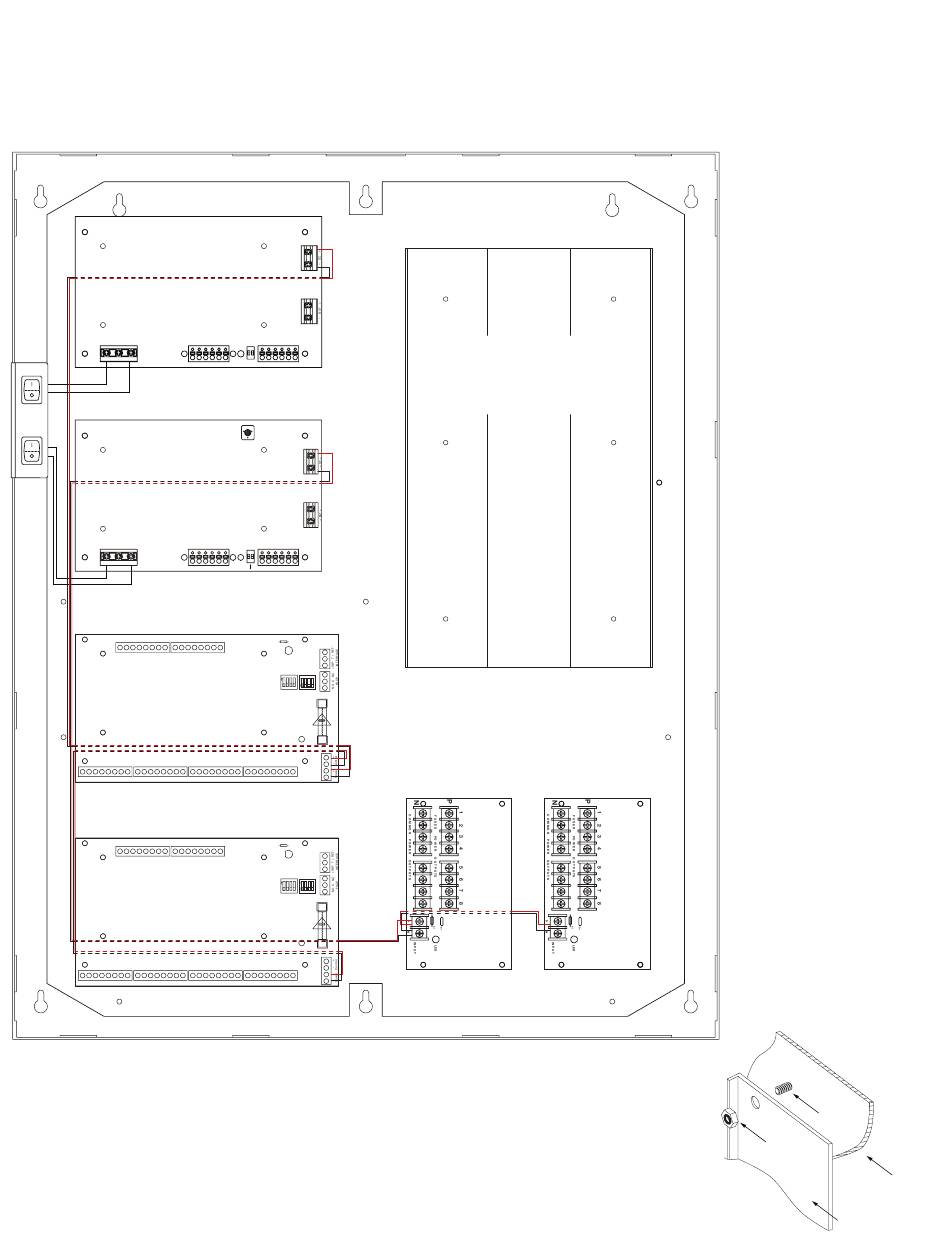

Fig. 3
Altronix
eFlow104NB
L G N
RSB2
Altronix
eFlow102NB
AC1
L G N
IN GND IN GND IN GND IN GND IN GND IN GND IN GND IN GND
5
1 2 3 4
F1 F2 F3 F4
Altronix ACM8(CB)
NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM
OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4
IN GND IN GND IN GND IN GND IN GND IN GND IN GND IN GND
5
1 2 3 4
F1 F2 F3 F4
Altronix ACM8(CB)
NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM
OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4
- 4 -
AC DC
1 min enable
NC C NO NC C NO TRIGGER EOL NO GND
2 hr disable + AUX -
AC FAIL BAT FAIL SUPERVISED RESET
FACP
TRIGGER
TRG
INPUT
6 7 8
F5 F6 F7 F8
O N O N O N O N
1 1 2 2 3 3 4 4 1 1 2 2 3 3 4 4
MAIN
10A 250V
OUTPUT 5 OUTPUT 6 OUTPUT 7 OUTPUT 8
FACP
TRIGGER
TRG
INPUT
6 7 8
F5 F6 F7 F8
O N O N O N O N
1 1 2 2 3 3 4 4 1 1 2 2 3 3 4 4
MAIN
10A 250V
OUTPUT 5 OUTPUT 6 OUTPUT 7 OUTPUT 8
S2-INST
Installation Kit for
S2 Network Node
Altronix Altronix
PD8UL(CB) PD8UL(CB)
Fig. 3a
Pem
Lock nut
Backplane
S2-INST Bracket
Trove S2 Kits Installation Guide
