Altronix TROVE T2SSK7F8 Installation Manual page 3

T2SSK7F8(D): Access Controller Position Chart for the S2-INST Installation Kit:
1. Align S2-INST mounting holes with pems on TSS2 (Fig. 2, pg. 3).
2. Attach S2-INST to backplane with lock nuts (provided) (Fig. 2a, pg. 3).
3. Mount backplane to enclosure with hardware.
4. Fasten TSS2 backplane to Trove2 enclosure utilizing hardware (provided).

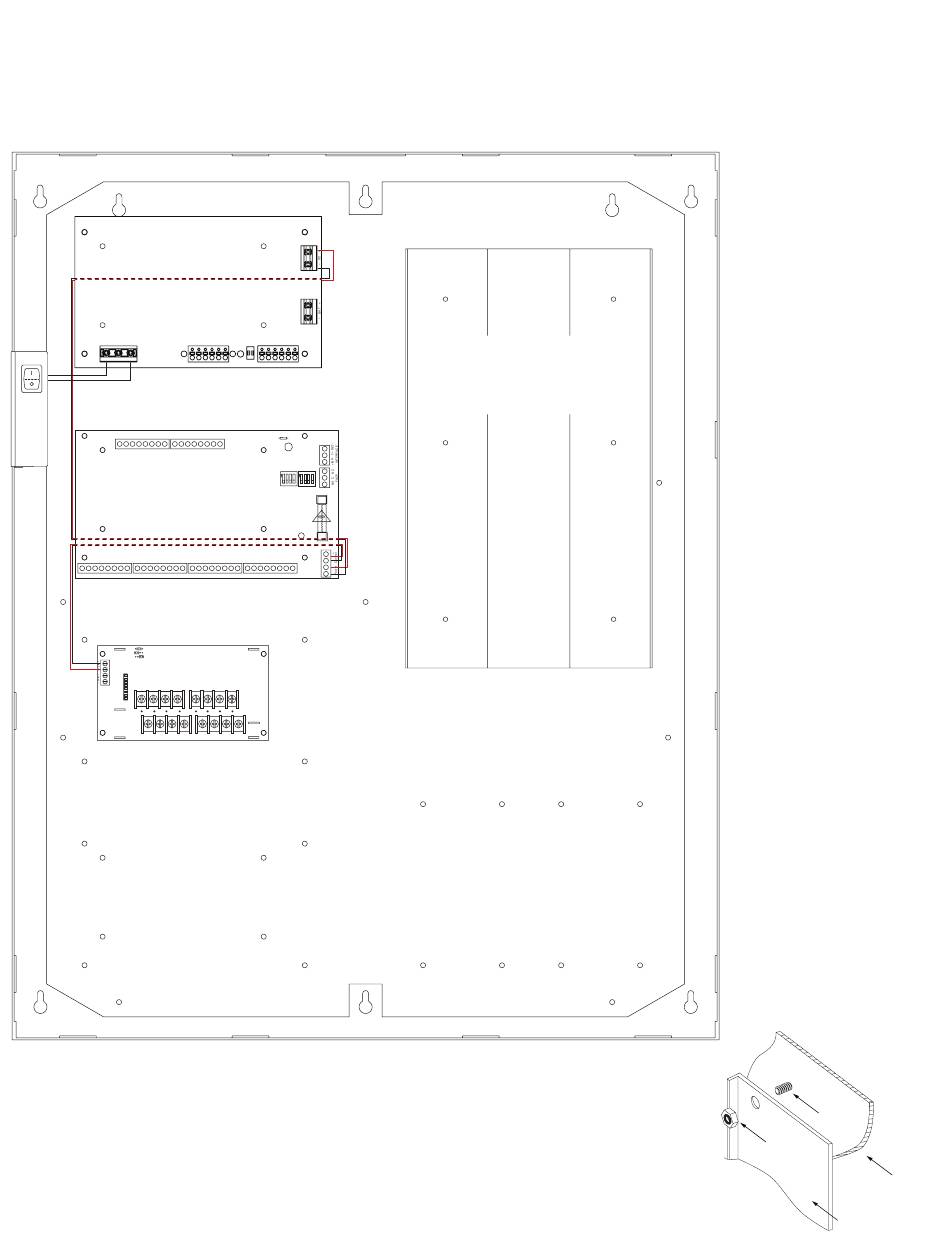

Fig. 2
Altronix
eFlow104NB
L G N
RSB1
IN GND IN GND IN GND IN GND IN GND IN GND IN GND IN GND
1 2 3 4 5
F1 F2 F3 F4
Altronix ACM8(CB)
NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM
OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4
DM1 +
OFF
IN1
IN2
Altronix PDS8(CB)
P
OUT1 OUT2 OUT3 OUT4
Common (--- )
N
DM2 +
1 2 3 4
Common Power Outputs (NEG)
Altronix VR6 is mounted under PDS8(CB)
Trove S2 Kits Installation Guide
FACP
TRIGGER
TRG
INPUT
6 7 8
F5 F6 F7 F8
O N O N O N O N
1 1 2 2 3 3 4 4 1 1 2 2 3 3 4 4
MAIN
10A 250V
OUTPUT 5 OUTPUT 6 OUTPUT 7 OUTPUT 8
DM1 +
OUT5 OUT6 OUT7 OUT8
Common (--- )
DM2 +
5 6 7 8
S2-INST
Installation Kit for
S2 Network Node
Fig. 2a
Pem
Lock nut
Backplane
S2-INST Bracket
- 3 -
