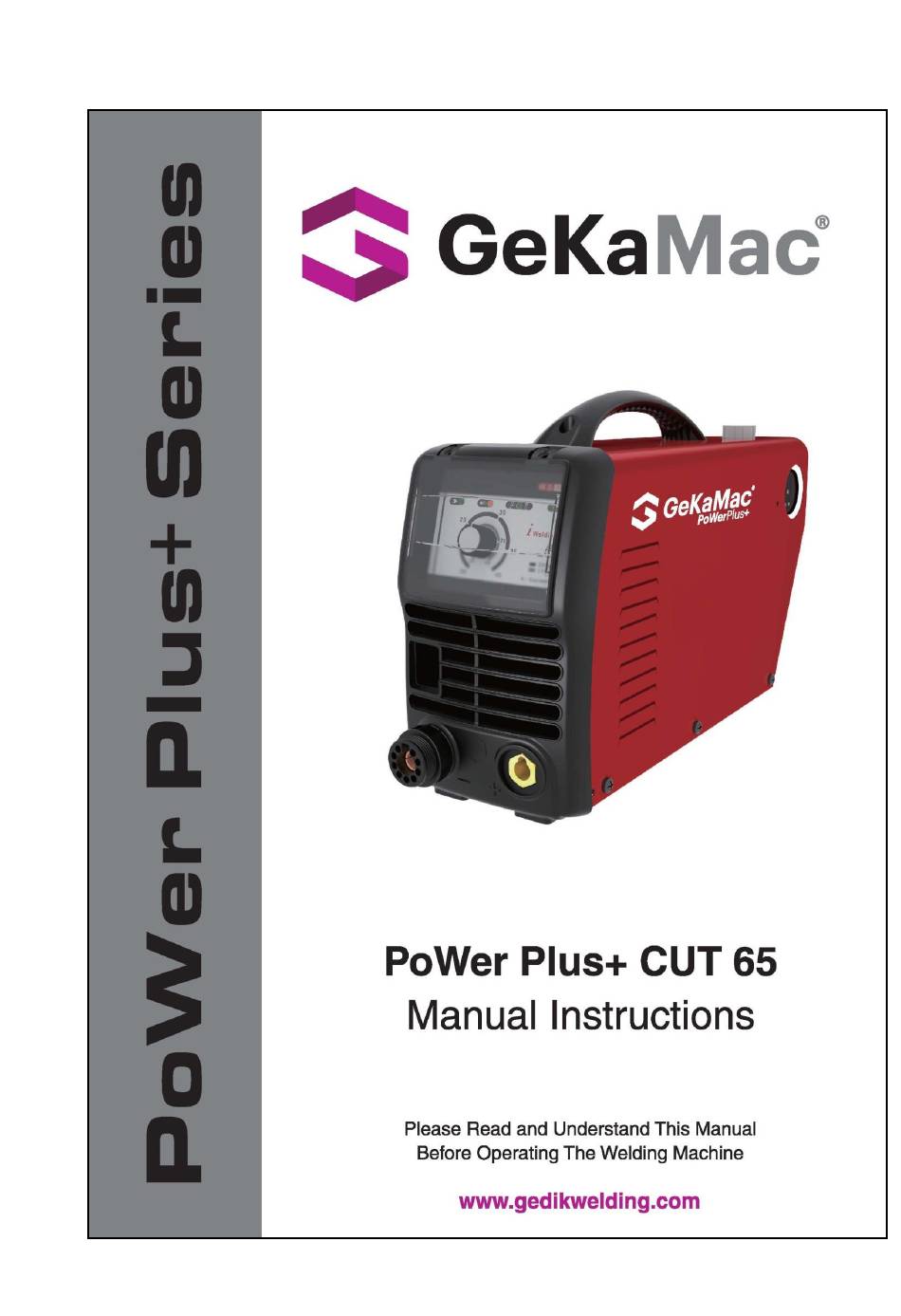

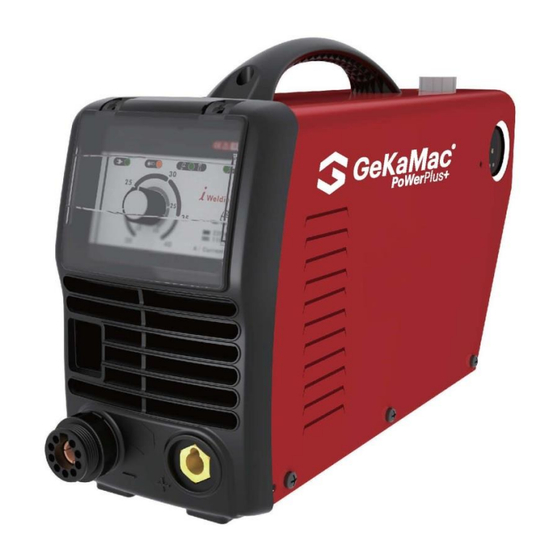

  • Page 2 • Refer to the nearest GEDIK WELDING authorized service or the service center of GEDIK WELDING when a problem comes up. ® Thank you for prefering one of GeKaMac products. ® GeKaMac PoWer Plus+CUT 65 USER’S MANUEL, 2016...

  • Page 3: Table Of Contents

    5. Installation ..................................7 6. Layout of the Front and Rear Panel..........................8 7. Cutting Operation................................9 8. Basic Troubleshooting Guide ............................9 9. Electrical Principle Drawing............................11 10. Warranty Conditions..............................12 11. Warranty Document ..............................13 ® GeKaMac PoWer Plus+CUT 65 USER’S MANUEL, 2016...

  • Page 4: Safety Rules

    This electric energy can cause severe or fatal shock to the operator or others in the workplace. ⚫ Never touch any parts that are electrically “live” or “hot.” ⚫ Wear dry gloves and clothing. Insulate yourself from the work piece or other parts of circuit. ® GeKaMac PoWer Plus+CUT 65 USER’S MANUEL, 2016...
  • Page 5 Keep helmet and safety glasses in good condition. Replace lenses when cracked, chipped or dirty. ⚫ Protect others in the work area from the arc rays. Use protective booths, screens or shields. ® GeKaMac PoWer Plus+CUT 65 USER’S MANUEL, 2016...

  • Page 6: Working Prenciple Of Main Circuit

    Aluminium ≤20 Cuprum ≤14 Dimensions（mm） 640*240*445 Protection class IP23 Insulation class Net weight (kg)） Cooling method Table2.1 Technical parameters Note: The above parameters are subject to change with the improvement of machines. ® GeKaMac PoWer Plus+CUT 65 USER’S MANUEL, 2016...

  • Page 7: Features Of Power Plus+Cut 65

    Various protective and alarm functions for pressure, tip, over-temperature and over-current allow faster troubleshooting, eliminating unnecessary downtime. Back striking tip and electrode ensure the velocity of striking and the quality of arc, and extend the life of them. ® GeKaMac PoWer Plus+CUT 65 USER’S MANUEL, 2016...

  • Page 8: Installation

    Figure 3.1 Check Air Quality To test the quality of air, put the RUN / SET switch in the SET (down) position, check if there are any oil or moisture in the air. ® GeKaMac PoWer Plus+CUT 65 USER’S MANUEL, 2016...

  • Page 9: Layout Of The Front And Rear Panel

    10. Barometer : ensure there are no impurity and moisture in the compressed air 11. Mains cable: Connected to the appreciate power supply 12. Power switch: turn on or off the power source ® GeKaMac PoWer Plus+CUT 65 USER’S MANUEL, 2016...

  • Page 10: Cutting Operation

    3. Unit is overheated, let unit cool down for at least 5 minutes. Make sure the unit has not been operated beyond Duty Cycle limit, refer to technology parameters in Section 2. 4. Faulty components in unit, return for repair or have qualified technician repair per Service Manual. ® GeKaMac PoWer Plus+CUT 65 USER’S MANUEL, 2016...
  • Page 11 3. Excessive oil or moisture in torch, hold torch 1/8 inch (3 mm) from clean surface while purging and observe oil or moisture buildup (do not activate torch). If there are contaminants in the gas, additional filtering may be needed. ® GeKaMac PoWer Plus+CUT 65 USER’S MANUEL, 2016...

  • Page 12: Electrical Principle Drawing

    9. ELECTRICAL PRINCIPLE DRAWING ® GeKaMac PoWer Plus+CUT 65 USER’S MANUEL, 2016...

  • Page 13: Warranty Conditions

    10. WARRANTY CONDITIONS 1. The length of the warranty starts on the date of delivery and it is for 1 year. 2. The whole merchandise including all its parts are covered by the warranty of our company. 3. If the merchandise breaks down within the length of the warranty, the time spent in the repair shop will be added to the length of the warranty.

  • Page 14: Warranty Document
