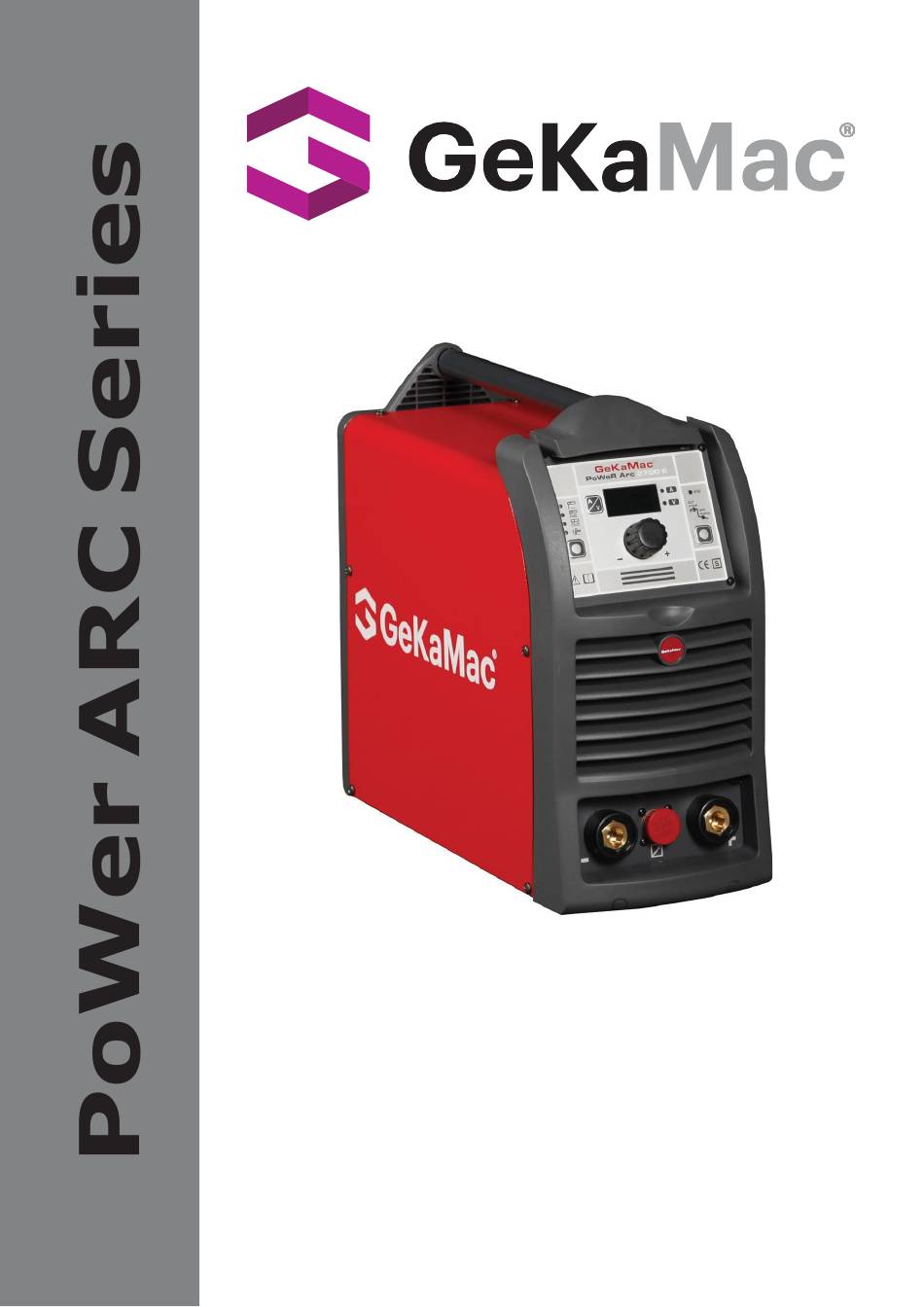

- Page 1 PoWer ARC 2800 Users Manual Please Read and Understand This Manual Before Operating The Welding Machine www.gedikwelding.com...
-
Page 2: Table Of Contents
ENGLISH Introduction Introduction Description Thank you f or buying our product. In ord er to get the best performanc e o ut of the plant and ens ure Technical data the maximum lifespan of its parts, the use and maintenance instructions contained in this manual must be read and strictly Usage limits (IEC 60974-1) complied with, as well as the safety instructions contained... -
Page 3: Technical Data
eral minutes the overheat cut-off rearms automatically and the • The vrd (Voltage Reduction Device) can be activated, which welder is ready for use again. reduces voltages to below 12 V, which means that the weld- ing mac hine c an be us ed in ambient conditions i n which there is a high electrical risk, thereby providing maximum opera- How to lift up the machine tor saf ety. -
Page 4: Instructions For Use
Connect a suitable load of normalised plug (3p+t) to the power cable and provide for an electrical socket complete with fuses or an automatic switch. The ground terminal must be connected to the ground conducting wire (YEL- LOW-GREEN) of the supply. Table 2 shows the capacity values that are recommended for f uses in the line with delays. -
Page 5: Welding Parame Te Rs
• Low for v ertical downwards welding and for joining small pre - PART TO BE WELDED heated pieces. The part to be welded must always be connected to ground A f airly approximate indication of the average current to use in in order to reduce electromagnetic emission. -
Page 6: Maintenance
Maintenance ATTENTION: Before carrying out any inspection of the inside of the generator, disconnect the system from the supply. SPARE PARTS Original spare parts have been specially designed for our equipment. The use of non-original spare parts may cause variations in performanc e o r reduce the fores een lev el of safety. We decline all responsibility for the use of non-original spare parts. -
Page 7: Wiring Diagram (Power Arc 2800)
EN Wiring diagram (POWER ARC 2800) 2101EB76 - 7 -... -
Page 8: Power Arc 2800
EN Wiring diagram (POWER ARC 2800) 2101EB76 - 8 -... -
Page 9: Key To The Electrical Diagram
•1 •2 •3 •4 •5 •6 •7 •8 •9 • • • • • • • • • • • S-C4 LINK S-INT DIG S-INV EN Key to the electrical diagram 1 Remote control socket •2 “Dinse” + and - pole capacitors •3 Fan motor •... -
Page 10: Meaning Of Graphic Symbols On Machine
EN Meaning of graphic symbols on machine 1 Power supply switch 2 System for use in environments with increasedrisk of electroshock 3 Product suitable for free circulation in the EuropeanCommunity 4 Dangerous voltage 5 Grounding 6 Positive pole snap-inconnector 7 Negative pole snap-in connector 8 Remote control socket 9 Warning! 10 Before using the equipment you should carefully read theinstructions included in this manual... -
Page 11: Spare Parts List
Description 352453 Visiera rack frontale Front rack transparent visor 439388 Pannello rack con adesivo "GEKAMAC" Rack panel with " GEKAMAC " sticker Manopola senza indice Ø29mm Ø29mm Knob without index 438888 Adesivo logo GEKA Ø20mm CEA logo sticker Ø20mm 468191 Front panel without GEKA logo sticker Ø20mm... - Page 12 EN Spare parts list Pos. Cod. Descrizione Description 413481 Cablaggio ausiliario Auxiliary wiring Complessivo inverter primario (composto da Scheda Inverter primary assembly (composed by Inverter 240471 inverter, Raddrizzatore primario e IGBT primario) PCB, Primary rectifier and Primary IGBT) 286037 IGBT primario Primary IGBT 481404 Trasformatore...
-
Page 13: Ordering Spare Parts
EN Spare parts list Pos. Cod. Descrizione Description 377140 Scheda circuito secondario Secondary circuit PCB 423236 Diodo secondario Secondary diode 240233 Induttore secondario Secondary Inductor 449493 Telaio metallico interno Internal metallic frame 481946 Trasduttore di corrente Current transducer 478786 Termostato circuito secondario Secondary circuit thermostat 486383 Motore ventilatore... - Page 14 - 14 -...
- Page 15 - 15 -...
- Page 16 Gedik Welding Inc. Ankara Caddesi No: 306 Şeyhli 34906 Pendik - İstanbul / Turkey +90 216 378 50 00 • +90 216 378 20 44 www.gedikwelding.com...
