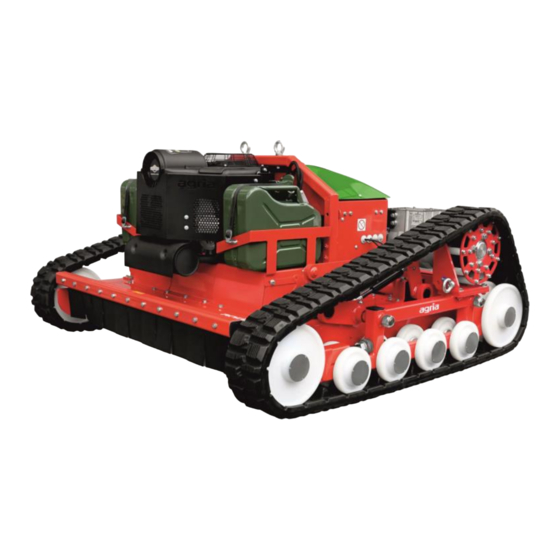

- Page 1 Quick Start Guide Remote-controlled track mower agria 9600 9600 231, -234, -237, -241, -247 Operating Instructions No. B998 003GB 02.22 Please carry it always with you! Before commissioning please read the operating instructions and note the safety and warning information!
-
Page 2: Designation Of Parts Fig. A
Designation of parts Fig. A Remote-controlled track mower agria 9600... - Page 3 Linear drive for cutting height adjustment Mowing deck Mower coupling Exhaust Engine Aerial Removable fuel can 11.1 Tension lever for removable fuel can EMERGENCY STOP switch Signal light Electric motors Transmission Alternator Nameplate (ID/machine no.) Starter battery Remote-controlled track mower agria 9600...
-
Page 4: Table Of Contents
1 Commissioning and Operation ............ 5 Starting the petrol engine ................5 Stopping the machine ................... 6 2 Remote control and remote control display....... 8 Remote control / Fig. B ................. 8 Display on remote control ................10 Remote-controlled track mower agria 9600... -
Page 5: Commissioning And Operation
If the machine trav- els a straight shift line on a slope at constant speed with the joystick in a straight position, the drift is correctly adjusted. Remote-controlled track mower agria 9600... -
Page 6: Stopping The Machine
(B/11) or switching off the remote control with the key switch (B/5). Wait until the engine has stopped. Switching off the engine on the machine: Press the EMERGENCY OFF switch (A/12). Wait until the engine has stopped. Remote-controlled track mower agria 9600... - Page 7 Pressing an EMERGENCY STOP switch (A/12 or B/11) in case of emergency causes the engine and the mulching drive to switch off immediately. Remote-controlled track mower agria 9600...
-
Page 8: Remote Control And Remote Control Display
(7) Mowing deck up/down The 'mowing deck' switch is used to adjust the cutting height. (8) Mowing drive on/off The mowing drive switch switches the mowing drive on and off via an electro- magnetic clutch. (9) Engine on Remote-controlled track mower agria 9600... - Page 9 The warning lamps light up in case of errors. (16) Escape Switch on the backlight. (17) Menu Page change. (18) "up" Moves the cursor upwards. (19) "down" Moves the cursor downwards. (20) Enter Change settings. (21) Not occupied. Remote-controlled track mower agria 9600...
-
Page 10: Display On Remote Control
(5) Drive train power (6) Generator voltage (7) Battery voltage (8) State of charge of the battery in the remote control (9) Mowing drive on/off (10) Auxiliary headlights on/off (option) (11) Signal strength of the radio remote control Remote-controlled track mower agria 9600... - Page 11 Allow the machine to continue running without load. Check the temperatures on menu page 3 of the remote control. (6) An error message is pending Check the error codes on page 4 of the remote control, or -agria-Service- Remote-controlled track mower agria 9600...
- Page 12 - Move the drift potentiometer (B/14) to mechanical cen- tre position - Press Enter (B/20) (5) WiFi mode - Setting see video -agria-Service- (6) Not assigned Using the arrow keys (B/18, B/19), navigate to the Speedmode +/- field. Press Enter (B/20) to confirm.
- Page 13 The display shows the temperature on several components: (1) Power control module (2) Generator (3) Ambient temperature (4) Resistance of the power control module (5) Central control unit (6) Wheel motor right (7) Wheel motor left Remote-controlled track mower agria 9600...
- Page 14 The machine can be steered again and continue to be operated as usual. • If the machine does not continue to run, contact the -agria Customer Service- or read out the errors and report them to your dealer (see Operation Manual).
- Page 15 (1) Version of the software in the remote control (2) Current at the wheel motor right (3) Current at the wheel motor left (4) Blade rotational speed (5) Optional: Engine speed if your machine is equipped with a Kawasaki engine. Remote-controlled track mower agria 9600...
- Page 16 Agria-Werke GmbH Bittelbronner Straße 42 D-74219 Möckmühl Tel.: +49 6298 39-0 Fax: +49 6298 39-111 E-Mail: info@agria.de Internet: www.agria.de Your local agria specialist dealer:...
