Agria 2500 Hydro Operating Instructions Manual
  1. Manuals
  2. Brands
  3. Agria Manuals
  4. Lawn Mower
  5. 2500 Hydro
  6. Operating instructions manual

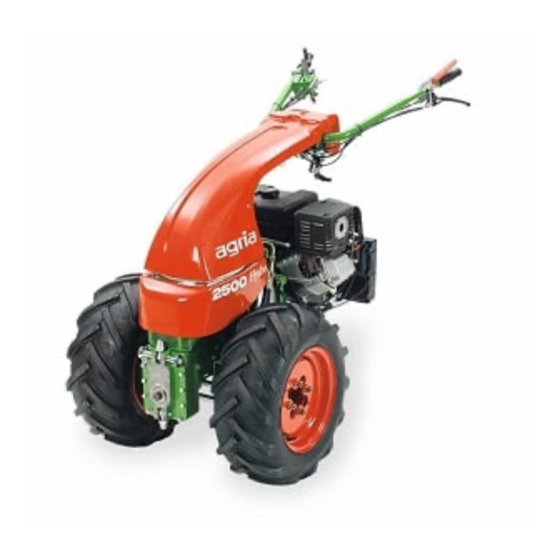

Agria 2500 Hydro Operating Instructions Manual

Two-wheel tractor
Hide thumbs
Table of Contents

Advertisement

Quick Links

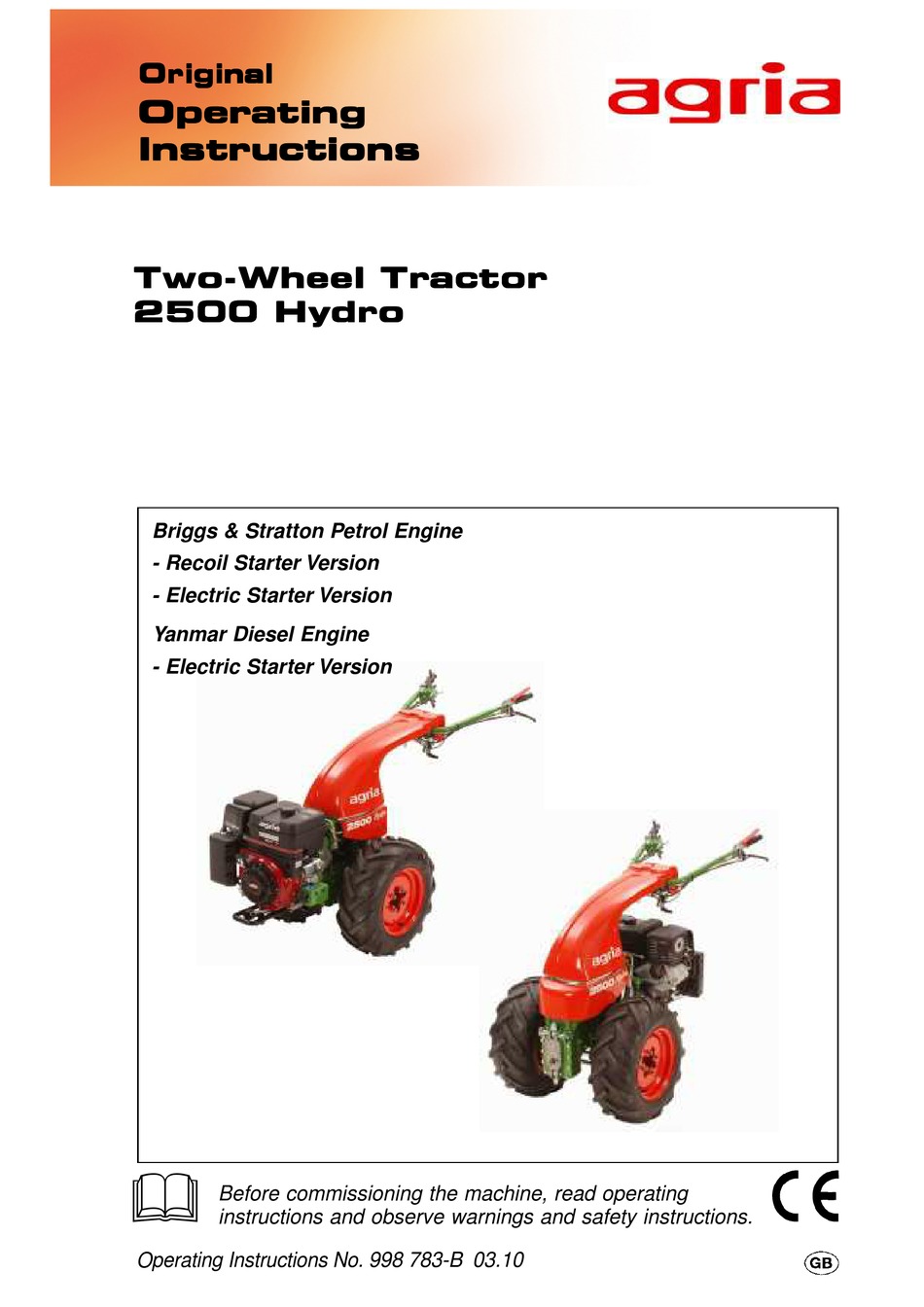

Original
Original
Original
Original
Original
Operating
Operating
Operating
Operating
Operating
Instructions
Instructions
Instructions
Instructions
Instructions
Two-Wheel Tractor
Two-Wheel Tractor
Two-Wheel Tractor
Two-Wheel Tractor
Two-Wheel Tractor
2500 Hydro
2500 Hydro
2500 Hydro
2500 Hydro
2500 Hydro
Briggs & Stratton Petrol Engine
- Recoil Starter Version
- Electric Starter Version
Yanmar Diesel Engine
- Electric Starter Version
Before commissioning the machine, read operating
instructions and observe warnings and safety instructions.
Operating Instructions No. 998 783-B 03.10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2500 Hydro and is the answer not in the manual?

Questions and answers

Related Manuals for Agria 2500 Hydro

Summary of Contents for Agria 2500 Hydro

  • Page 1 Instructions Instructions Instructions Instructions Two-Wheel Tractor Two-Wheel Tractor Two-Wheel Tractor Two-Wheel Tractor Two-Wheel Tractor 2500 Hydro 2500 Hydro 2500 Hydro 2500 Hydro 2500 Hydro Briggs & Stratton Petrol Engine - Recoil Starter Version - Electric Starter Version Yanmar Diesel Engine...

  • Page 2: Amount Of Delivery

    Please state these data when order- Fast ing spare parts to avoid wrong deliv- eries. Slow Only use original agria spare Hydraulic system parts! Specifications, figures and dimen- sions stated in these instructions are not binding. No claims can be de- Brake rived from them.
  • Page 3 Designation of Parts Fig. A 31 30 27 26 Fig. B agria-Two-Wheel Tractor 2500 Hydro...
  • Page 4 6 Speed adjusting lever 7 Eccentric lever for central brake 8 Operating mechanism for PTO clutch 9 Signal light for PTO 10 Ignition lock 11 Ratchet bolt for height adjustment of steering 12 Operating hour counter/speed counter agria-Two-Wheel Tractor 2500 Hydro...

  • Page 5: Table Of Contents

    Conformity Declaration ... 69 Mounting/Dismounting Implements ........30 Note fold-out pages! Implements ........31 Battery ..........32 Fig. A + B ......3 Fuse ..........32 Fig. C (Petrol Engine) ..64 Fig. D (Diesel Engine) ..68 agria-Two-Wheel Tractor 2500 Hydro...

  • Page 6: Recommendations Lubricants

    Lubricants and Maintenance and Anti-Corrosive Agents Repair Use the specified lubricants for engine The trained mechanics of your agria and transmission (see “Specifications”). workshop carry out expert maintenance and repair. We recommend using bio-lubricating oil or bio-lubricating grease for “open”...

  • Page 7: Fuel

    -26°C app. -15°C app. -20°C app. - 9°C As a last resort, you can add up to 30% of regular petrol to avoid paraffine de- posits. However, this has negative ef- fects on consumption rate and performance. agria-Two-Wheel Tractor 2500 Hydro...

  • Page 8: Safety Instructions

    Due use includes compliance with manufacturer’s instructions operation, maintenance and repair. Any unauthorized changes to the two- wheel tractor render manufacturer liability null and void. agria-Two-Wheel Tractor 2500 Hydro...
  • Page 9 Never adjust the operating handles dur- For operation in enclosed areas, ensure ing work – danger! that a safety distance is kept to enclo- sures to prevent damage to tools. agria-Two-Wheel Tractor 2500 Hydro...
  • Page 10 Secure two-wheel tractor against unau- Do not transport the dismounted cutter thorized use. If two-wheel tractor is bar without knife guards. equipped with ignition key, remove the key. For all other versions, remove spark plug connector. agria-Two-Wheel Tractor 2500 Hydro...
  • Page 11 For grinding the mowing knives, always Only use original agria spare parts. All wear safety goggles and gloves. other commercial spare parts must cor- Weights respond to quality and technical require- ments specified by agria.

  • Page 12: Hydraulic System

    Before you dispose of opened and if necessary. seemingly empty pressurised tins (e.g. Only use original agria hydraulic hoses. of assist-starting liquids) make sure they are completely empty. Empty them in ventilated places safe from spark for- Tyres and mation or flames.

  • Page 13: Safety Instructions

    Signs Persons having a pacemaker may not touch live parts of the ignition system When working with the when the engine is running. machine, wear individual protective ear plugs. Wear protective gloves. Wear solid shoes. agria-Two-Wheel Tractor 2500 Hydro...

  • Page 14: Specifications

    (e max) (e min) 5.00-10 AS 930 1100 17° 21° 20x8.00-10 21x11.00-8 780 125 610 360 190 2010 5.00-12 AS 1000 950 1120 23° 18,5° 23x8.50-12 23x10.50-12 BR and S see track widths table page 16 agria-Two-Wheel Tractor 2500 Hydro...
  • Page 15 HH + / - (e max) (e min) 5.00-10 AS 1165 17° 21° 20x8.00-10 21x11.00-8 780 125 610 1655 5.00-12 AS 1000 890 240 1015 1185 23° 18,5° 23x8.50-12 23x10.50-12 BR and S see track widths table page 16 agria-Two-Wheel Tractor 2500 Hydro...
  • Page 16 2500 Hydro (mm) 23x8.50-12 AS 660 445 230 880 665 450 720 505 290 940 725 510 780 565 350 1000 785 570 840 625 410 1060 845 630 2 23x10.50-12 AS 790 515 240 870 595 320 850 575 300 930 655 380 910 635 360 990 715 440 970 695 420 1050 775 500 5.00-12 AS...
  • Page 17 23x8.5-12 wide-track field tyre general maintenance 5990 611 23x10.5-12 wide-track field tyre general maintenance 5990 711 10" traction cage wheels working on slopes 5917 011 12" traction cage wheels working on slopes 5917 021 agria-Two-Wheel Tractor 2500 Hydro...

  • Page 18: Machine

    FUCHS: ....Plantohyd S 46 Drive-wheel attachment .. see page 28 PANOLIN: ..... HLP Synth 46 Filling volume at First filling: ......abt. 4.5 l Oil change: ......abt.4.0 l Oil filter: . Screw-type cartridge AW 14 agria-Two-Wheel Tractor 2500 Hydro...

  • Page 19: Vibration Acceleration Value

    Engine is suited for use on slopes (with Air filter: ..Dry filter element with oil level at “max” = upper level mark) foamed preliminary filter Continuous operation ......45° inclination (100%) Carburetor: ......Horizontal float carburetor agria-Two-Wheel Tractor 2500 Hydro...

  • Page 20: Diesel Engine

    Engine is suited for use on slopes (oil level at “max” = upper mark) Air filter: ..Dry filter element with foamed preliminary filter Continuous operation possible and cyclone pre-separator up to ....20° inclination (37 %) agria-Two-Wheel Tractor 2500 Hydro...

  • Page 21: Devices And Operating Elements

    3. Devices and Operating Elements The two-wheel tractor agria type 2500 High engine speed is harm- Hydro is a basic motorised unit and is ful to any engine and consid- always used with an implement. erably affects its durability. This ap- Therefore it is most suitable for normal plies especially for no load operation.

  • Page 22: Speed Control Lever

    It also goes out when the ignition key is in position or is removed. If the warning signal sounds while the engine is running, the generator does not charge the battery correctly - Service agria-Two-Wheel Tractor 2500 Hydro...

  • Page 23: Safety Circuit

    PTO-drive similarly switches off automatically when travelling in reverse or cannot be switched on (safety circuit). The PTO-drive can only be switched on when the safety switch (B/1) is pressed in the "operating position". agria-Two-Wheel Tractor 2500 Hydro...

  • Page 24: Setting The Driving Speed And Direction

    3. Devices and Operating Elements Transmission The agria two-wheel tractor is equipped with a hydrostatic drive. Setting the Driving Speed and Direction Lever shift model The driving speed forward or reverse is steplessly set or changed with the forefinger or the thumb at the driving lever (B/5).

  • Page 25: Hydraulic Steering

    – both drive-wheels are absolutely disengage bra- blocked. ke as otherwise risk of da- mage due to overpressure To release parking brake, swivel eccentric lever (failure of wheel motors). back to original position – brake is released. agria-Two-Wheel Tractor 2500 Hydro...

  • Page 26: Steering Handle

    From position tool carrier to position two- wheel tractor: Pull lever (B/2) and keep it in position, then turn steering handle clockwise by 180° Release lever and slightly move steering handle to the left and right until the fixing bolt is engaged. agria-Two-Wheel Tractor 2500 Hydro...

  • Page 27: Steering Handle Swinging Buffer

    Strap on the hooks (A/29) and strap on the implement. In order to avoid damage to the electrics on the lower bar and on the swinging bar bearing, do not attach loading and clamping straps on the lower bar and steering. agria-Two-Wheel Tractor 2500 Hydro...

  • Page 28: Drive Wheels

    When working with snow chains fitted on wheels, observe manufacturer’s instruc- tions, make sure there is sufficient clearance between chains and machine parts. Drive-Wheels for Slopes It is recommended to use twin wheels or strake wheels for mowing areas on extremely steep slopes. agria-Two-Wheel Tractor 2500 Hydro...

  • Page 29: Axle Adjustment

    - until it unlocks - while turning. Check before every use whether the handle screws for the axle adjustment have been tightened. A/25 agria-Two-Wheel Tractor 2500 Hydro...

  • Page 30: Mounting/Dismounting Implements

    Make sure flanges (5) are properly centred and flat fitted. Tighten cap nuts evenly. For PTO-driven implements: Set shift lever (4) at the implement to “I” – shifting takes place at the base ma- chine. For dismounting, proceed in reverse order. agria-Two-Wheel Tractor 2500 Hydro...

  • Page 31: Implements

    The attachment device is mounted on the two-wheel tractor as described un- der "Mounting and dismounting of Im- plements". The implements (plough, harrow etc.) are then mounted onto the attachment device as described in each of the attached operating instructions. agria-Two-Wheel Tractor 2500 Hydro...

  • Page 32: Battery

    Replace the fuse if it is defective. To do this, remove the panel (23) and open the protective bracket (D/25). Inside this bracket you will find a spare fuse. Ensure to provide another spare fuse in time. agria-Two-Wheel Tractor 2500 Hydro...

  • Page 33: Commissioning And

    Check transmission oil level Note: For reasons of transport, the engine is not filled completey with engine oil! Before you operate the engine the first time, fill in engine oil agria-Two-Wheel Tractor 2500 Hydro...
  • Page 34 Do not touch the hot engine - danger of burns! Petrol engine: Do not touch or remove the ignition line and spark plug connector while the engine is running. agria-Two-Wheel Tractor 2500 Hydro...
  • Page 35 Do not let snap. Trailing is not permitted! Once the engine has started, set speed control lever to min. and let engine warm up for some time. Slowly push choke back into operating position, if necessary. agria-Two-Wheel Tractor 2500 Hydro...
  • Page 36 This ensures carburetor to be empty and no resin residue to deposit. Turn ignition key back to position and disconnect. agria-Two-Wheel Tractor 2500 Hydro...

  • Page 37: Starting The Petrol Engine

    – it automatically moves back into position “I” and the warning signal goes out. Once the engine has started, set speed control lever to min. and let engine warm up for some time. Slowly push choke back into operating position, if necessary. agria-Two-Wheel Tractor 2500 Hydro...

  • Page 38: Shutting Off The Petrol Engine

    This ensures carburetor to be empty and no resin residue to deposit. Turn ignition key back to position and disconnect. agria-Two-Wheel Tractor 2500 Hydro...

  • Page 39: Starting The Diesel Engine

    – it automatically moves back into position “I” and the warning signal goes out. Trailing is not permitted! Slowly move speed control lever to centre position (half throttle) and let engine warm up for some time. agria-Two-Wheel Tractor 2500 Hydro...
  • Page 40 This ensures carburetor to be empty and no resin residue to deposit. Turn ignition key back to position and disconnect. agria-Two-Wheel Tractor 2500 Hydro...

  • Page 41: Danger Zone

    Danger Zone down without delay and must not be operated again before the area is free again. The user is liable to third parties working within the ride-on brushcutter’s working range. agria-Two-Wheel Tractor 2500 Hydro...

  • Page 42: Working On Slopes

    If the engine comes to a halt while work- ing and re-start becomes necessary, proceed as follows: Engage parking brake Re-start engine. If cleaning becomes necessary du- ring operation, the engine must be shut off and the ignition key removed for safety reasons. agria-Two-Wheel Tractor 2500 Hydro...

  • Page 43: Maintenance

    Ensure the waste oil is disposed of properly! Check sealing washer for good condition and exchange, if necessary. Tighten oil drain plug! Fill in fresh engine oil. - For engine oil quality refer to “Specifications”. agria-Two-Wheel Tractor 2500 Hydro...
  • Page 44 Check exhaust system (C/18) on a regular basis for plant trash and clean, if necessary. Otherwise danger of fire results. Check each time before you put the two-wheel tractor into operation. All other maintenance on the engine Briggs & Stratton Engine agria-Two-Wheel Tractor 2500 Hydro...

  • Page 45: Diesel Engine

    Fill fresh engine oil into the oil filling opening. Check sealing washer for good condition and exchange, if necessary! Refer to Specifications for oil quantity and quality. Use a funnel or a similar device to fill the oil reservoir. agria-Two-Wheel Tractor 2500 Hydro...
  • Page 46 Re-insert the filter element and attach the foamed pre-filter. Reposition air filter cap and fasten with wing nut. Replace paper filter element af- ter every 400 operating hours or at least once a year. Replace immediately damaged filter elements. agria-Two-Wheel Tractor 2500 Hydro...
  • Page 47 Fill diesel fuel into fuel tank. Crank engine several times with re- Exchange after every 2 years; exchange coil starter or electric starter and start leaking fuel hoses immediately. engine. Let engine run for approx.1 minute. agria-Two-Wheel Tractor 2500 Hydro...
  • Page 48 After every 400 operating hours, clean and check injection jet. - Service Idling Speed Always ensure that idling engine speed is adjusted correctly. At low speeds, the engine is supposed to run smoothly, with speed control lever at stop in neutral. - Service agria-Two-Wheel Tractor 2500 Hydro...

  • Page 49: Battery

    Note manufacturer’s instructions. Avoid sparking and open flames near batteries. Careful when handling battery acid – etching! Only use specified fuses. If fuses are too strong, the electric system will be destroyed – danger of fire! agria-Two-Wheel Tractor 2500 Hydro...

  • Page 50: Machine

    Screw in drain plug with o-ring and tighten. Fill in fresh hydraulic oil, up to the fillling opening . For proper oil quantity and quality, refer to chapter “Specifications”. A/28 Close filling opening with plug/dip-stick. agria-Two-Wheel Tractor 2500 Hydro...

  • Page 51: Drive Wheels

    - Service Wheel Motors Always after 200 operating hours, check for straight driving. - Service Hydraulic Hoses Check hydraulic hoses always after 200 operating hours or at least once per year for closeness. agria-Two-Wheel Tractor 2500 Hydro...

  • Page 52: Safety Circuit

    Adjust the set pin (4) to a play of X in position "0". Screw set pin in to reduce play, screw out to increase play. Place cable end and set pin back into bracket and fit retaining spring (2). agria-Two-Wheel Tractor 2500 Hydro...

  • Page 53: Steering Tower

    Clean engine only with a cloth. Avoid spraying with air- compressed water jets, as water might leak into ignition and fuel system causing malfunctions. Graphic Symbols Worn and missing stickers with operating and safety instruc- tions must be replaced. agria-Two-Wheel Tractor 2500 Hydro...

  • Page 54: Storage

    Engine preservation Petrol Engine: Drain fuel completely or fill fuel tank and add fuel stabi- lizer (agria No. 799 09). - Observe enclosed instructions. Let engine run for approx. 1 minute. Change the engine oil. Fill a tea-spoon (approx. 0.03l) of engine oil into the spark plug opening.

  • Page 55: Varnishes, Wear Parts

    Tyre repair gel Terra-S bottle 1l Lists of Spare Parts 997159 Two-wheel tractor 2500 997 083 Implements for 2500, 3400, 5500, 5900 997 062 Cutter Bars 997 137 Briggs & Stratton Petrol Engine 997 147 Yanmar Diesel Engine agria-Two-Wheel Tractor 2500 Hydro...

  • Page 56: Electrical Wirings

    Electrical Wirings Version Petrol Engine Recoil Version Petrol Engine E-Starter Starter = blue = brown = yellow = green = lilac = orange = red ro-ge = red-yellow agria-Two-Wheel Tractor 2500 Hydro...
  • Page 57 21 Modulate progressive starting 22 Stop valve, injection pump (diesel engine) K0.1 - K3 = Relais = blue = brown = yellow = green = lilac = orange = red ro-ge = red-yellow = black = white agria-Two-Wheel Tractor 2500 Hydro...

  • Page 58: Troubleshooting

    Earth missing Check ground contact stop Petrol engine Air filter clogged Clean air filter or exchange output too low Loose cylinder head or damaged Tighten cylinder head, exchange gasket gasket Poor compression Have engine checked agria-Two-Wheel Tractor 2500 Hydro...
  • Page 59 Electromagnetic Check clutch clutch defektive Excessive Loosened Tighten attachment bolts vibration attachment bolts = For this purpose contact your agria workshop! BM = see separate engie operating instructions agria-Two-Wheel Tractor 2500 Hydro...
  • Page 60 “STOP” Engine - Air filter clogged Clean air-filter output - Loose cylinder head or Tighten cylinder head, too low damaged gasket exchange gasket - Poor compression Have engine checked agria-Two-Wheel Tractor 2500 Hydro...
  • Page 61 Warning signal - Glass fuse is defective Replace glass fuse sounds - Harness is damaged Check harness during - Regulator is defective Check regulator operation - Generator is defective Check generator = For this purpose contact your agria workshop! agria-Two-Wheel Tractor 2500 Hydro...

  • Page 62: Inspection And Maintenance Chart

    A = Each time before you take up operation F = Maintenance should be carried out by your B = After each cleaning, especially with a high- agria workshop pressure cleaner * = after 2 years agria-Two-Wheel Tractor 2500 Hydro...

  • Page 63: Maintenance Schedule

    50 h 200 h A; 5 h (50 h) 50 h; 100 h Each time before you take up operation 200 h yearly and after each cleaning with a high-pressure cleaner A; 2 h 50 h agria-Two-Wheel Tractor 2500 Hydro...

  • Page 64: Designation Of Parts

    13 Fuel tap right 18 Muffler 19 Air filter 20 Choke lever 34 Socket 12 V - DIN 9680-A 35 Flat plug fuse only for E-starter version: 31 Battery Socket for recoil starter version: Socket recoil starter version agria-Two-Wheel Tractor 2500 Hydro...
  • Page 65 Tractor 2500 Hydro...

  • Page 66: Maintenance Schedule

    (50 h) Mon. 100 h 200h; J 200 h A; 5 h (50 h) Each time before you take up operation 200 h yearly and after each cleaning with a high-pressure cleaner A; 2 h 50 h agria-Two-Wheel Tractor 2500 Hydro...
  • Page 67 17 Engine type plate; engine I.D. 18 Ball-head, engine cover 21 Hex head bolt (E-Start Version) 22 Serrated washer (E-Start Version) 23 Panel (E-Start Version) 24 Distancer (E-Start Version) 25 Fuse holder (E-Start Version) 26 Fuse 15 amps (E-Start Version) agria-Two-Wheel Tractor 2500 Hydro...
  • Page 68 Designation of Parts Diesel Engine Figure D Engine L100 agria-Two-Wheel Tractor 2500 Hydro...

  • Page 69: Conformity Declaration

    Conformity Declaration agria-Two-Wheel Tractor 2500 Hydro...
  • Page 70 GmbH Bittelbronner Straße 42 D-74219 Möckmühl Tel. +49/ (0)6298 /39-0 Fax +49/ (0)6298/39-111 e-mail: info@agria.de Internet: www.agria.de Your local agria specialist dealer:...
