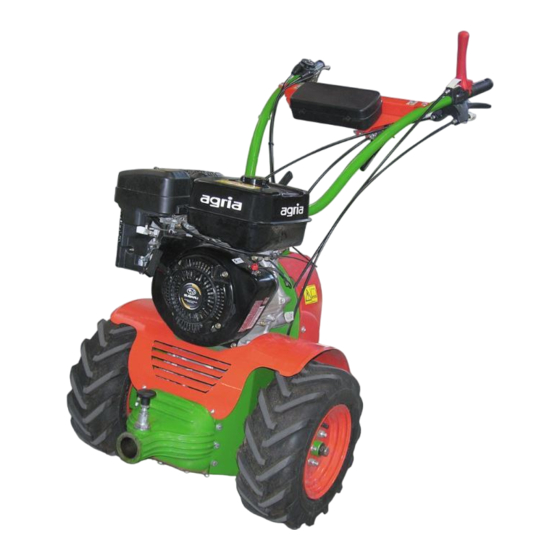

Two-wheeled tractor
Two-wheeled tractor
Two-wheeled tractor
Two-wheeled tractor
Two-wheeled tractor
2200 Hydro
2200 Hydro
2200 Hydro
2200 Hydro
2200 Hydro
Hydrostatic tool carrier
6083a
Before commissioning the machine, read operating
instructions and observe warnings and safety instructions.
Operating Instructions No. 998 417G B
12.11
Advertisement
Table of Contents
Related Manuals for Agria 2200 HYDRO
Summary of Contents for Agria 2200 HYDRO

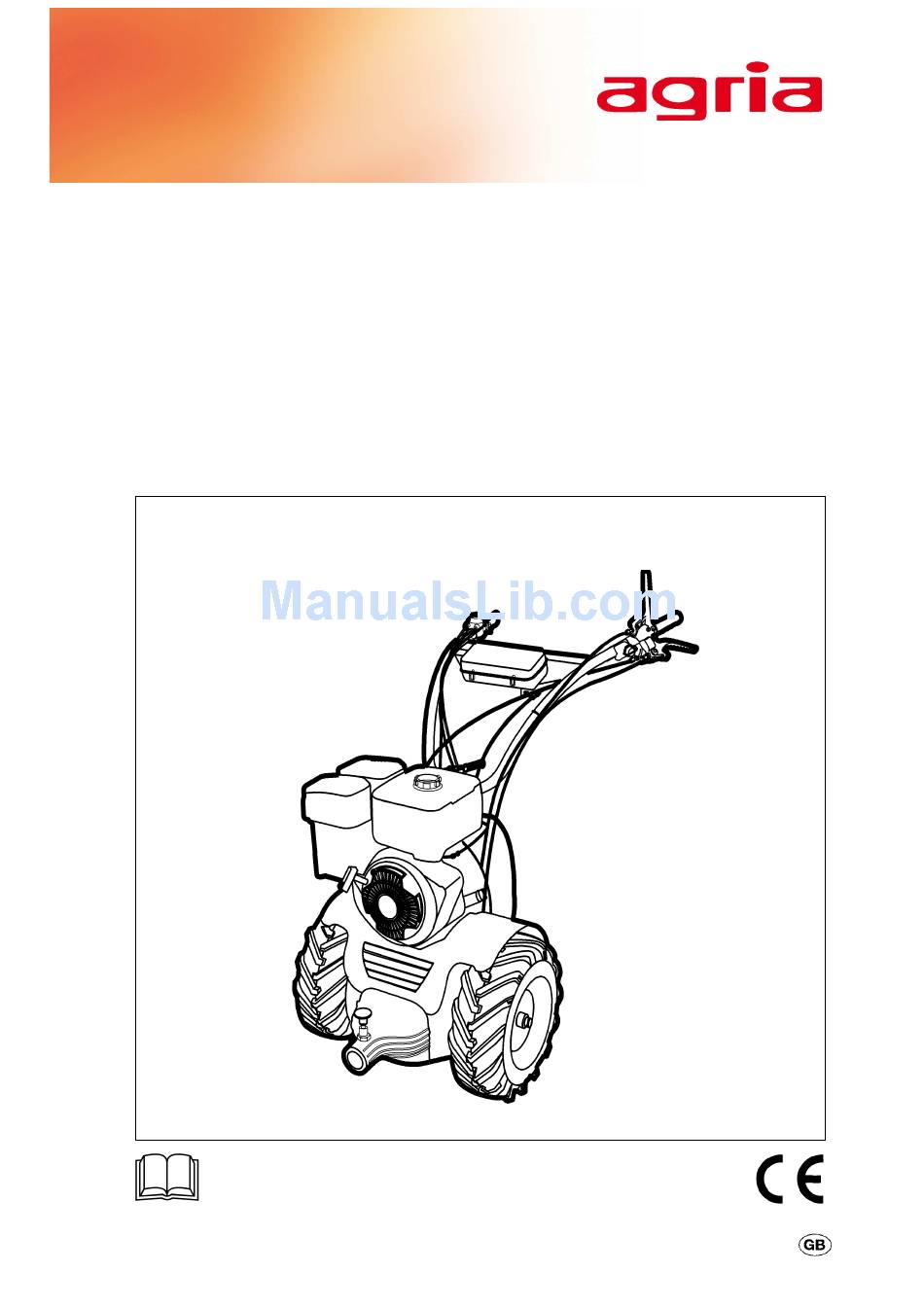

- Page 1 Translation of the original operating instructions Translation of the original operating instructions Two-wheeled tractor Two-wheeled tractor Two-wheeled tractor Two-wheeled tractor Two-wheeled tractor 2200 Hydro 2200 Hydro 2200 Hydro 2200 Hydro 2200 Hydro Hydrostatic tool carrier 6083a Before commissioning the machine, read operating instructions and observe warnings and safety instructions.
-
Page 2: Amount Of Delivery
B/17 and B/18. Clutch Please state these data when order- ing spare parts to avoid wrong deliv- Wheel drive eries. Only use original agria spare parts! Forward Reverse Specifications, figures and dimen- sions stated in these instructions are Fast Slow not binding. -
Page 3: Designation Of Parts
Designation of Parts agria Two-wheeled tractor 2200 Hydro... - Page 4 15 Speed control lever 16 Rotary handle for driving speed and travelling direction 18 Locking screw for steering handle height adjustment 19 Locking screw for steering handle lateral adjustment 20 Tool box 21 Engine shut-off switch agria Two-wheeled tractor 2200 Hydro...
-
Page 5: Table Of Contents
4. Commissioning and Operation Fig. B ........42 Commissioning the Machine ..21 Starting the Engine ......23 Shutting off the Engine ....24 Working .......... 25 Danger Zone ........26 References, Handling ....27 agria Two-wheeled tractor 2200 Hydro... -
Page 6: Recommendations Lubricants, Anti-Corrosive Agents
Using ecologically saf e Bio-lubricants and Bio- anti-corrosives, you con- tribute to en vironmental protection and to the w ell- being of humans, animals and plants. agria Two-wheeled tractor 2200 Hydro... -
Page 7: Unpacking And Assembly
Carry out all steps for starting- up (see instructions on page 21). 1 Base machine A/7 Steering handle A/18 Locking screw for steering handle height adjustment A/19 Locking screw for steering handle lateral adjustment A/18 A/19 agria Two-wheeled tractor 2200 Hydro... -
Page 8: Safety Instructions
Careful with rotating tools – k eep at a chine render manufacturer liability null safe distance! and void. Foreign powered parts shear and crush! Riding on the attachment during opera- tion is not per mitted. agria Two-wheeled tractor 2200 Hydro... - Page 9 Have the malfunction remo ved without Ensure that all guards in place . delay. With no attachment mounted, mak e sure PTO-shaft is covered with the pro- tective cap. agria Two-wheeled tractor 2200 Hydro...
- Page 10 Before you work on the engine, always Secure the machine and attachment remove spark plug connector (petrol against unauthorized use and rolling off engine only). when you leave the machine. If neces- sary, install transport or safety devices to provide protection. agria Two-wheeled tractor 2200 Hydro...
- Page 11 Store anti-corrosive agents and stabi- maintenance and cleaning. lizing liquids out of reach of children. If Only use original agria spare parts. All sickness and vomiting occur, see a doc- other conventional spare parts must cor- tor. If fuel has contacted e yes, rinse...
-
Page 12: Safety Instructions
- no open fire. Before any cleaning, mainte- nance, and repair work switch off the engine and pull spar k plug connector. agria Two-wheeled tractor 2200 Hydro... -
Page 13: Specifications
Tyre pressure: ......1.0 bar in accordance with EN ISO 3744 Vibration acceleration value: on handlebar: ....a < 2.7 m/s in accordance with ISO 5349 at 85% of r ated engine speed with tool at work. agria Two-wheeled tractor 2200 Hydro... -
Page 14: Engine
(with oil level at “max” = upper level Valve lash (engine cold): mark) Intake: ....0.15 mm ± 0.02 mm Outlet: ....0.20 mm ± 0.02 mm Starter: ......Soft-pull recoil starter ... with automatic decompression agria Two-wheeled tractor 2200 Hydro... -
Page 15: Devices And Operating Elements
3. Devices and Operating Elements The agria two-wheeled tractor type 2200 Cooling System Hydro is a base po wer machine and is The engine is f an-cooled. Therefore always operated with an attachment keep screen at recoil star ter and cool- mounted. -
Page 16: Speed Control Lever
To do this, move the lever to the right. Fuel tap The fuel tap (B/11) is on the carb uretor. Fuel tap lever turned downwards - O (OPEN) Fuel tap lever turned to the right - I (CLOSED) agria Two-wheeled tractor 2200 Hydro... -
Page 17: Clutch / Safety Circuit
(danger of crushing). Switching off: Push the PTO actuating lever down and forwards. Only switch the PTO actuating lever on and off when the clutch lever is not being operated! agria Two-wheeled tractor 2200 Hydro... -
Page 18: Travelling Drive
The machine can be pushed when the engine is not in operation if both dr iving wheels are disen- gaged using the steeering clutch lever pull both levers and latch the pawls (3) into place. STOPP agria Two-wheeled tractor 2200 Hydro... -
Page 19: Steering Handle
Re-tighten locking screw (A/18). Steering handle side adjustment Loosen locking screw (A/19) until all notches are free. Swivel the steering handle to the desired posi- tion and fit into proper notch. Re-tighten locking screw (A/19). A/19 agria Two-wheeled tractor 2200 Hydro... -
Page 20: Attachments
Disconnecting attachments: Pull the locking bolt (A/4) upwards and turn by 90° Lock open Pull the attachment out of the mounting Place the protective cap onto the connect- ing port of the attachment. agria Two-wheeled tractor 2200 Hydro... -
Page 21: Commissioning And Operation
Do not cause fuel tank to o verflow, but leave a 5 mm margin for the fuel to expand. Note: For reasons of transport, the machine is not filled with engine oil! Before you operate the engine the first time, fill in engine oil! agria Two-wheeled tractor 2200 Hydro... - Page 22 ? ok Only take two-wheeled tractor into opera- tion with all protective devices mounted and positioned to provide protection! Do not touch or remove the ignition line and spark plug connector while the engine is running. agria Two-wheeled tractor 2200 Hydro...
-
Page 23: Starting The Engine
The exhaust and other engine parts become very hot, if the engine runs and immediately after turn- ing off. Hold f or sufficient distance from hot sur- faces and k eep children a way from the r unning engine. agria Two-wheeled tractor 2200 Hydro... -
Page 24: Shutting Off The Engine
This is to ensure the carb uretor is empty and to avoid resin deposits. Secure the machine against unauthorised use. Remove the spark plug connector. agria Two-wheeled tractor 2200 Hydro... -
Page 25: Working
Set the travelling drive on the rotary handle to Neutral "Neutral" (catch) Release the clutch hand lever (A/11) Speed control lever to position "min" For pto-driven attachments: Move the pto-le- ver (A/14) to position "O" Turn off the engine. agria Two-wheeled tractor 2200 Hydro... -
Page 26: Danger Zone
If protective coverings are intended for the attachment (e.g. knife guard on the mowing bar), these must be put in place im- mediately after finishing work. agria Two-wheeled tractor 2200 Hydro... -
Page 27: References, Handling
If the tank is to be emptied, this is to be accomplished outdoor . Let the engine cool down, before you store the machine in closed areas . Replace for safety reasons worn out or damaged par ts. agria Two-wheeled tractor 2200 Hydro... -
Page 28: Maintenance
. Use a funnel or a similar device to fill the oil reser voir. Replace the oil filler plug (2) and tighten it. Only change oil while the engine is still w arm, but not hot – danger of burns! agria Two-wheeled tractor 2200 Hydro... -
Page 29: Cooling Screen
Please note that only the information on the engine is explained here which is necessary for the operation of the two-wheeled tractor. All other information about the engine may be obtained from the attached engine operating instructions. agria Two-wheeled tractor 2200 Hydro... -
Page 30: Machine
For full tractive power, mount wheels with pointed parts of lugs showing in travel direction (wheels seen from above). agria Two-wheeled tractor 2200 Hydro... -
Page 31: Clutch Hand Lever
The engine shut-off s witch in position „O“, the engine must come to a stop. Check electric lines, connections and switch. - Service A/21 agria Two-wheeled tractor 2200 Hydro... -
Page 32: Steering Clutch Lever
Loosen counter-nut (2) Set bowden cable adjusting screw (1) as required Re-tighten the counter-n ut (2) against the le ver bearing (locking). Only operate attachments with all guards in place. agria Two-wheeled tractor 2200 Hydro... -
Page 33: General
Engine Clean the engine only with a cloth. Avoid spraying with strong water jets, as wa- ter might leak into the ignition and fuel system, causing malfunctions. agria Two-wheeled tractor 2200 Hydro... -
Page 34: Storage
- to preserve the machine from atmospher ic influences Do not park the machine in: - humid rooms - in rooms where fertilizer is stored - in stables or adjacent rooms. e) Protect machine with cloth or a similar co ver. agria Two-wheeled tractor 2200 Hydro... -
Page 35: Varnishes, Wear Parts
Tyre sealing gel Terra-S bottle Wear Parts 400 318 Air filter element Dual 455 007 V-belt Note: Only use original agria V-belts! Spare Parts 997 166 Two-wheeled tractor 2200 Hydro and attachments 997 077 Robin engine agria Two-wheeled tractor 2200 Hydro... -
Page 36: Troubleshooting
6. Troubleshooting Observe safety instructions! Have all serious malfunctions on the machine or engine repaired by your agria workshop. They have the proper tools. Improper repairs can only add to the damage. Problem Possible cause Remedy Page Engine - Spark plug connector not connected... - Page 37 Replace Bowden cables stop function - Claws worn Replace claws not OK/ knocking noise Excessive - Attachment bolts loosened Tighten attachment bolts vibration = For this purpose contact your agria workshop. BM = See engine operating instructions! agria Two-wheeled tractor 2200 Hydro...
-
Page 38: Electrical Wiring
Electrical Wiring Elektrical Wiring 1 Engine flywheel 2 Ignition coil unit 3 Spark plug 4 Engine shut-off switch agria Two-wheeled tractor 2200 Hydro... -
Page 39: Lubrication Chart
Lubrication Chart Lubrication Chart 1 Engine oil (page 28) 2 Transmission oil (page 30) 3 Wheel gear shift system (page 30) agria Two-wheeled tractor 2200 Hydro... -
Page 40: Inspection And Maintenance Chart
If the machine is used in a very dusty conditions or is placed under heavy loads, the maintenance intervals must be shortened, depending on the dir tiness of the oil, the amount of clogging of the filter elements , the wear on parts etc. agria Two-wheeled tractor 2200 Hydro... - Page 41 Two-wheeled tractor 2200 Hydro...
-
Page 42: Of Parts
8 Cooling screen 9 Starter lever 10 Choke lever 11 Fuel tap 12 Coarse fuel filter 13 Carburetor 15 Dip stick / oil filling opening 16 Oil drain plug 17 Engine no. 18 Engine type sign agria Two-wheeled tractor 2200 Hydro... -
Page 43: Conformity Declaration
Declaration Conformity agria Two-wheeled tractor 2200 Hydro... - Page 44 GmbH Bittelbronner Straße 42 D-74219 Möckmühl Tel. +49/ (0)6298 /39-0 Fax +49/ (0)6298/39-111 e-mail: info@agria.de Internet: www.agria.de Your local agria specialist dealer:...
