Page 1: Operating Instructions

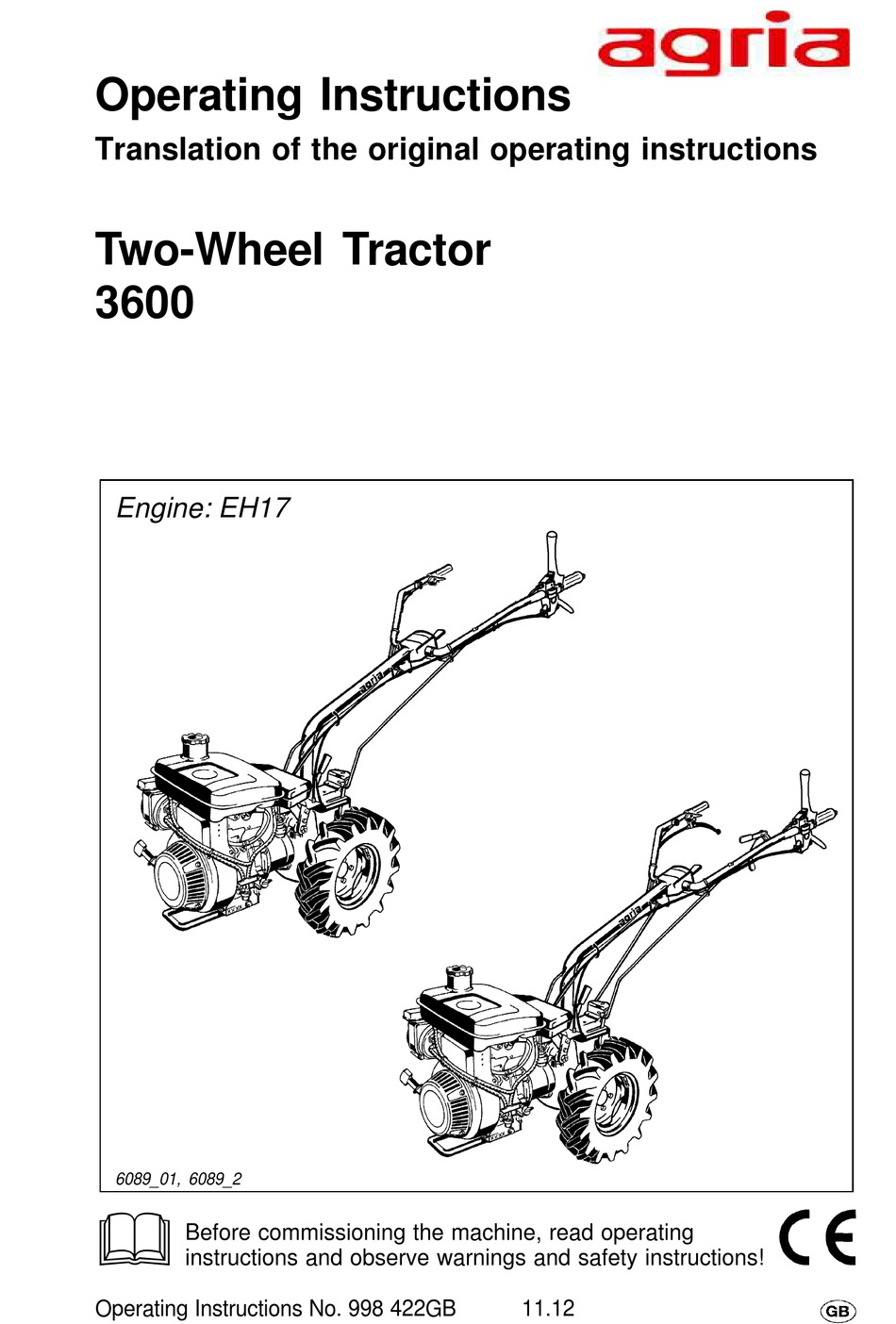

Operating Instructions Translation of the original operating instructions Two-Wheel Tractor 3600 Engine: EH17 6089_01, 6089_2 & Before commissioning the machine, read operating instructions and observe warnings and safety instructions! Operating Instructions No. 998 422GB 11.12... -
Page 2: Amount Of Delivery
Air cooling pages 58/fig. E/8. Please state these data when order- Clutch ing spare parts to avoid wrong deliv- Wheel drive eries. Only use original Agria spare Forward Reverse parts! Fast Slow Specifications, figures and dimen- sions stated in these instructions are Differential lock not binding. -
Page 3: Designation Of Parts
Designation of Parts Version 2F2R: rigid hexagonal wheel shaft Version 3F2R, differential, steering brake Two-wheel tractor agria 3600... - Page 4 (Hand lever for single-wheel brake right) = for front attachment 12 Hand lever for single-wheel brake right = for rear attachment (Hand lever for single-wheel brake left) = for front attachment 13 Locking lever for steering handle side adjustment and swivel Two-wheel tractor agria 3600...
-
Page 5: Table Of Contents
Wheel Weights ........ 30 Conformity Declaration ... Coupling and Decoupling Implements ....31 4. Commissioning and Operation Fig. A; B; C ........Commissioning the Machine ..35 Fig. D + E ........Starting the Engine ......37 Two-wheel tractor agria 3600... -
Page 6: Assembly Instructions
Steering handle must swivel easily. ‘ Assemble shifters. For this pur- pose, insert shifters for PTO and gear shifters into joints of shift le- vers on gearbox and secure with • W-clips ‘ Assembly of shifters Two-wheel tractor agria 3600... - Page 7 Arrangement of Bowden cables way that the arrow tread profile points in travel direction. Insert linch pin in holes of wheel hub and shaft. Then turn spring band around the axle. Two-wheel tractor agria 3600...
- Page 8 Assembly of fast speed shifter: Push shifter upwards through shifter guide ring (I), screw on ball handle (II), stick shifter onto gearbox shift lever (III) and secure with spring band (IV). Two-wheel tractor agria 3600...
-
Page 9: Safety Instructions
Due use includes compliance with Careful with rotating tools – keep at a manufacturer’s instructions on opera- safe distance! tion, maintenance and repair. Any unauthorized changes to the two- wheel tractor render manufacturer liabil- ity null and void. Two-wheel tractor agria 3600... - Page 10 Never leave the operator’s position at that a safety distance is kept to enclo- the steering handle while tractor is at sures to prevent damage to tools. work. Never adjust the operating handles dur- ing work – danger! Two-wheel tractor agria 3600...
- Page 11 If tractor is equipped with which penetrate the soil are not covered. ignition key, remove the key. For all other versions, remove spark plug connector. When hoeing, make sure hoeing skid is adjusted properly. Two-wheel tractor agria 3600...
- Page 12 When coupling the drawbar, make sure manoeuvrability at coupling point is suf- ficient. Do not exceed gross axle weight rating, towing capacity and gross weights. Before driving, check brake function and rear lighting for proper operation. Two-wheel tractor agria 3600...
- Page 13 Do not smoke when refilling! erly after maintenance and cleaning. Refill only with the engine switched off Only use original agria spare parts. All and cooled down. other commercial spare parts must cor- respond to quality and technical require- Do not spill any fuel, use a proper filling device (e.g.
-
Page 14: Electrical System
Tyre Air Pressure When working on tyres, make sure two- wheel tractor is parked properly and se- cured against rolling off. Any repairs are to be carried out by trained mechanics only and with the appropriate tools. Two-wheel tractor agria 3600... - Page 15 Do not work without protective covers mounted. Before starting the engine, bring covers in proper position. Wear protective gloves. Wear safety shoes. With engine running, keep at a safe dis- tance from cutting knife. Two-wheel tractor agria 3600...
-
Page 16: Specifications
Track width version 3F2R: [mm] Tyre: 4.00-8 Tyre: 4.00-10 495 392 290 395 292 190 550 440 330 520 410 300 490 380 270 440 330 220 Two-wheel tractor agria 3600... -
Page 17: Machine
2. Specifications Clutch: ......Disc dry clutch PTO: ........1028 rpm at engine speed of 3600 rpm gear independent Gearbox: (integrated in coupling flange) Version 2F2R ..Mechanical gearbox, direction of rotation: right-hand 2 forward and 2 reverse speeds (clockwise), looking on PTO,... -
Page 18: Engine
Main jet: ........105 Idle jet: ..........50 Torque: ......max 11 Nm at 2600 rpm Rated speed: ...... 3600 rpm Spark plug: ....Bosch WR7AC Top no-load speed: .... 3800 rpm NGK BR 6 HS Idling speed: ....... 1200 rpm Electrode gap: .... -
Page 19: Devices And Operating Elements Engine
3. Devices and Operating Elements The two-wheel tractor agria 3600 Engine is a basic motorised unit and is l The four-stroke petrol engine runs on com- always used with an implement. mercial petrol (refer to fuel recommendations Therefore it is most suitable for p51). -
Page 20: Safety Circuit
Do not tie down safety circuit lever. The safety lever also serves as an emergency shut-off. In an emergency release it. The lever automatically goes to STOP position. Two-wheel tractor agria 3600... -
Page 21: Clutch
When the hand clutch lever is released up to the B/6; C/6 setting "I", the clutch is engaged, i.e. the engine drives the two-wheel tractor. l Watch for the correct clutch play to avoid clutch slip- ping away during operation, see page 48. Two-wheel tractor agria 3600... -
Page 22: Gearbox
The position of the shift lever on the shift gate indicates the gear engaged. Only change gears when engine is halted (decoupled)! With the steering handle swivelled 180° (for front attachments), the shifters for gears and PTO change sides. Two-wheel tractor agria 3600... - Page 23 Move fast speed shifter (C/8) to position “ (fast)” (pull gear shifter backwards). Move gear shifter to position “3”. l To change down, proceed in reverse order. l To change direction, first move gear shifter to neu- tral and then disengage “fast speed”. Two-wheel tractor agria 3600...
-
Page 24: Single-Wheel Brake
When driving with trailer mounted, do not activate the single-brakes. The hand levers for single- wheel brakes therefore are equipped with pawls. The hand levers then must be secured with pawls prevent them from being activated. Two-wheel tractor agria 3600... -
Page 25: Differential Gear
Also, it prevents reverse gear from being engaged while PTO is at work. For mounting the hoeing attachment, pull safety bolt out entirely For mounting the front attachments (e.g. mowing attachment), push safety bolt in entirely Two-wheel tractor agria 3600... -
Page 26: Loading Belt, Fixing Points
Push swivel control lever (B/13 and C/13) backwards and swivel steering handle to the left or right into desired position (fig. F). l Push swivel control lever forwards and lock B/13; C/13 into appropriate notch on steering handle. Two-wheel tractor agria 3600... - Page 27 180°. Arrangement of Bowden Swivel Steering Handle Back to Original cables with steering Position handle swivelled Proceed in same order, but swivel anti-clockwise. For version 3F2R mount fast speed shifter. Two-wheel tractor agria 3600...
-
Page 28: Drive-Wheels
7 Hexagonal screw lugs showing in driving direction (wheels seen from above). This 8 Drive-wheel applies also when the steering 9 Washer 10 Wheel nut handle is swivelled 180° for front 11 Wheel screw attachments. Two-wheel tractor agria 3600... -
Page 29: Snow Chains
4.00-8 Field tyre Tilling, ridging 3690 011 to wheels, observe manufacturer’s in- mowing, sweeping structions, make sure there is sufficient clearance between chains and machine winter service operation parts. 4.00-10 Field tyre Ploughing, tilling 3690 021 Two-wheel tractor agria 3600... -
Page 30: Front Weights And Wheel Weights
Diagonally mount wheel weights onto double end studs (2) using 2 long headed screws (7) and washers (6). Tighten wheel screws and weight fas- tening nuts at a torque of 50 Nm. 50 Nm Two-wheel tractor agria 3600... -
Page 31: Coupling And Decoupling Implements
The bolt now locks into place automati- cally. If not, twist attachment slightly to the left or right. • Decoupling attachments Œ Œ Press locking lever down and hold. • Decouple attachment. l Fit protective cap on attachment cou- • pling pin. Two-wheel tractor agria 3600... - Page 32 For this purpose, remove wheels and mount • right wheel on left side and left wheel on right side. Swivel steering handle back to original position l Proceed in same order, but anti-clockwise. l For version 3F2R, re-attach fast speed shifter. Two-wheel tractor agria 3600...
- Page 33 3. Devices and Operating Elements Version 2V2R Version 3V2R Two-wheel tractor agria 3600...
- Page 34 Now the bolt locks into place automati- cally. If not, twist attachment slightly to the left or right. • Decoupling attachments Œ Œ Press locking lever (1) down and hold. • Decouple attachment. l Fit protective cap onto attachment coupling pin. • Two-wheel tractor agria 3600...
-
Page 35: Commissioning And
Check transmission oil level Note: For reasons of transport, the engine is not filled with engin oil! Before you operate the engine the first time, fill in engine oil Two-wheel tractor agria 3600... - Page 36 Do not touch the hot engine – dan- ger of burns! Do not touch or remove the ignition line and spark plug connector while the engine is running. Two-wheel tractor agria 3600...
- Page 37 After the start, let the rope glide back. Do not let it snap back. “ As soon as the engine has warmed up, “ move the CHOKE back to the operating position (if it was operated). Two-wheel tractor agria 3600...
-
Page 38: Switching Off The Engine
This en- sures the carburetor to be empty and no resin residue to deposit. Two-wheel tractor agria 3600... -
Page 39: Operations
Œ Set speed control lever to idle position. Œ • Pull hand clutch lever and hold. • Ž Set shifter to “R1 oder R2”. Ž • Slowly release the clutch while pressing the throttle. • Two-wheel tractor agria 3600... -
Page 40: Danger Zone
For operation on banks, always turn ma- chine towards the slope! Starting the engine on slopes l Keep the PTO shaft and the travelling drive in engaged mode; braking effect. Safety circuit to Stop position. l Start the engine. Two-wheel tractor agria 3600... -
Page 41: Driving With Mounted Trailer
It is not allowed to operate the two-wheel trac- tor with trailer on public roads. When driving with trailer mounted, do not activate the single-brakes. Hand levers for single-wheel brakes must be secured with pawls (fig. F) to prevent them from being acti- vated. Two-wheel tractor agria 3600... -
Page 42: Safety References, Handling
If the tank is to be emptied, this is to be accomplished outdoor. l l l l l Let the engine cool down, before you store the machine in closed areas. l l l l l Replace for safety reasons worn out or damaged parts. Two-wheel tractor agria 3600... -
Page 43: Maintenance
Clean filling- and drain plug and sur- rounding parts. l Change the oil and dispose of properly. Check sealing washer for good condition and ex- change, if necessary! - For engine oil quality refer to “Specifi- cations”. Two-wheel tractor agria 3600... -
Page 44: Air Filter
” soak it in oil! ” Reinstall the filter element and the foamed preliminary filter. • Reposition the filter cap. • Replace immediately damaged filter elements, at least once a year. Two-wheel tractor agria 3600... - Page 45 Governor spring Keep governor spring, lever and linkages free from in hole 2 dirt and plant trash at all times. All further maintenance at the engine see engine operating instructions. Two-wheel tractor agria 3600...
-
Page 46: Machine
2 operating hours with 50 Nm and after 25 operating hours. 50 Nm l Check the tyre air pressure regularly. For smooth driving, make sure that there is the same pressure in both tyres. Two-wheel tractor agria 3600... -
Page 47: Instant Adapter Device
Always after 200 operating hours or at least once per year, check brake jaws and brake operating system for unhindered movement and efficiency. Resetting is made using the bowden cable adjust- ing screws. è - Serviceç Two-wheel tractor agria 3600... -
Page 48: Clutch Play
With shut-off switch (B/5; C/5) in position "O" the engi- ne must come to stop., if necessary, check electric lines and connections. è - Serviceç Two-wheel tractor agria 3600... -
Page 49: General Maintenance
Apply grease generously to leave a grease ring around bearings to prevent water, plant sap, and dirt from penetrating. è Graphic Symbols Worn and missing stickers with operating and safety instructions must be replaced. Two-wheel tractor agria 3600... -
Page 50: Storage
Engine preservation l Drain the fuel completely from the system or fill the fuel tank, add fuel stabilizer (agria No. 799 09) to the fuel tank - Observe instructions. Operate the engine for approx. 1 minute. l Change the engine oil. -
Page 51: Recommendations Lubricants
Anti-corrosive agents are tion”. the flywheel. environmentally friendly and degrade fast. Using ecologically safe bio-lubricants and bio- anti-corrosives, you con- tribute to environmental protection and to the well- being of humans, animals and plants. Two-wheel tractor agria 3600... -
Page 52: Varnishes, Wear Parts
Sealing washer 16 x 22 x 1.5 (drain plug of gearbox housing) 692 56 Plastic cap for attachment pin Ø 47 mm Lists of Spare Parts 997 075 Two-wheel tractor 3600 997 077 Robin engines = Depending on version Two-wheel tractor agria 3600... - Page 53 Two-wheel tractor agria 3600...
-
Page 54: Troubleshooting
6. Troubleshooting Observe safety instructions! Have all serious malfunctions on the machine or engine repaired by your Agria workshop. They have the proper tools. Improper repairs can only add to the damage. Problem Possible cause Remedy Page Petrol engine - Spark plug connector not connected... -
Page 55: Troubleshooting
- Safety circuit misadjusted Adjust safety circuit ¬ - Worn out clutch Exchange clutch disc Excessive - Loosened screws Tighten fastening screws vibration ¬ = For this purpose contact your Agria workshop. BM = See operating instructions engine. Two-wheel tractor agria 3600... -
Page 56: Diagram: Electric Diagram
6 6 6 6 6 50 h 6 6 6 6 6 (25 h) 50 h 6 6 6 6 6 A; 8 h 6 6 6 6 6 A; 50 h 6 6 6 6 6 (50 h) 300 h Two-wheel tractor agria 3600... -
Page 57: Inspection And Maintenance Chart
B = After each cleaning K = Checks and maintenance to be executed by operator W = Maintenance to be executed by professional workshop F = Maintenance should be carried out by your Agria workshop * = after 2 years... -
Page 58: Of Parts
5 Recoil starter 6 Cooling-air screen 7 Engine protection base 8 Engine type designation and no. 9 Engine oil drain plug 10 Engine oil filler plug with dipstick 11 Fuel tap 13 Spark plug/spark plug connector Two-wheel tractor agria 3600... -
Page 59: Conformity Declaration
Conformity Declaration Two-wheel tractor agria 3600... - Page 60 Agria-Werke GmbH Bittelbronner Straße 42 D-74219 Möckmühl Tel. +49/ (0 )62 98 /39-0 Fax +49/ (0 )62 98/39-111 e-mail: info@agria.de Internet: www.agria.de Your local agria specialist dealer:...
