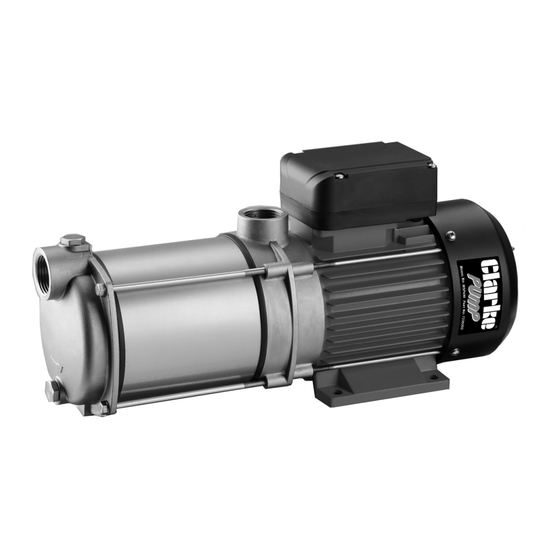

MULTI-STAGE BOOSTER PUMPS
MODEL NO: MSP490, 590 & 690
PART NO: 7239202, 7239203 & 7239204
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS
GC06/24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSP490 and is the answer not in the manual?

Questions and answers

Summary of Contents for Clarke MSP490

  • Page 1 MULTI-STAGE BOOSTER PUMPS MODEL NO: MSP490, 590 & 690 PART NO: 7239202, 7239203 & 7239204 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC06/24...
  • Page 2: Environmental Recycling Policy

    INTRODUCTION Thank you for purchasing this CLARKE Booster Pump which is suitable for a variety of applications involving the transfer of clean, cold water for domestic and gardening applications. Please read this manual thoroughly and ensure you are familiar with all aspects relating to your particular pump before its connection and use.
  • Page 3: Specification

    SPECIFICATION Model MSP490 MSP590 MSP690 Maximum Delivery 90 L/min 90 L/min 90 L/min Maximum Head 43 metres 53 metres 64 metres Maximum water temperature 65 degC 65 degC 65 degC Operating Pressure 4.3 Bar 5.3 Bar 6.4 Bar Ingress Protection Rating...
  • Page 4: General Safety Precautions

    The use of non standard parts could be hazardous. 10. NEVER use this product if any part is damaged. Have it inspected and repaired by your local CLARKE dealer. ALWAYS turn the pump off before carrying out any maintenance. 11. NEVER allow the pump to run dry.
  • Page 5: Electrical Installation

    ELECTRICAL INSTALLATION WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved 13 amp BS 1363 plug or a suitably fused isolator switch. This product may be fitted with a non-rewireable plug.
  • Page 6: Installation Of The Pump

    (not supplied). A 1” BSP hose adapter will be required for connection to the inlet and outlet port. These are available from your CLARKE dealer. A gate valve may be installed in-line on the outlet side of the pump which can be set as required to regulate the flow of water.
  • Page 7: Preparation For Use

    PREPARATION FOR USE PRIMING THE PUMP When suction lift is used to draw water into the pump it is essential that all connections and hoses are completely air tight or the system will not work. Although the pump is a ‘self priming’ type, it is still necessary to completely fill the inlet side of the pump with water before being started for the...
  • Page 8: Troubleshooting

    Tighten as required. Air leaks through Renew seal. damaged seal. Impeller damaged and Return to your CLARKE making poor seal. dealer for repair. Impeller / mechanical Return to your CLARKE seal is badly worn. dealer for repair.
  • Page 9: Care And Maintenance

    The pump should not be taken apart by the user if overhaul is required, but should be taken to your nearest CLARKE dealer for repair. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
  • Page 10: Component Parts

    COMPONENT PARTS Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
  • Page 11 COMPONENT PARTS ID DESCRIPTION ID DESCRIPTION Tie bolt (1) Tie bolt (2) Screw (1) Seal (1) Suction mounting Self priming cover Fan cover Locking nut Screw (2) First bushing Power cable Impeller Terminal box screw Diffuser Terminal box Pump housing Terminal block Washer Screw (3)
  • Page 12 DECLARATION OF CONFORMITY - MSP490 Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
  • Page 13 DECLARATION OF CONFORMITY - MSP590 Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
  • Page 14 DECLARATION OF CONFORMITY - MSP690 Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
  • Page 15 PUMP ACCESSORIES FROM THE CLARKE RANGE Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
