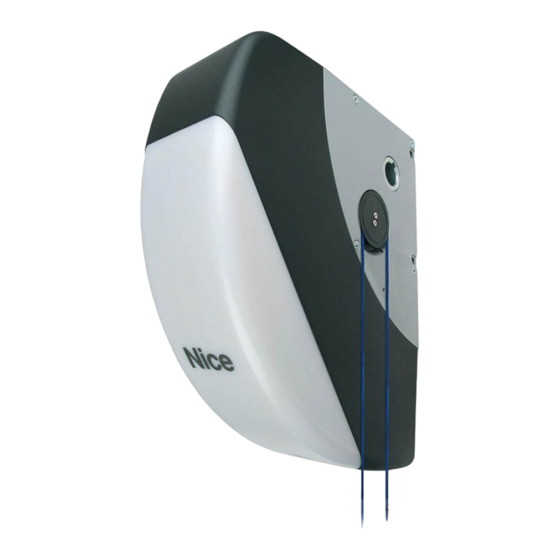

- Page 1 Soon Programmable functions using the Oview programmer STF SOON – Rev00 Firmware: NS03...
-
Page 2: Common Functions
Two types of password can be programmed on the devices (including Oview). - the user password, comprising maximum 6 alphanumeric characters. Caution! – Do not use uppercase letters. - the installer password, comprising maximum 6 alphanumeric characters. Caution! – Do not use uppercase letters. 2 – Soon... -
Page 3: Control Unit Functions
J mapping – enables deletion of the values of motor force absorption memorised during execution of a manoeuvre. After deleting the data stored in the memory, the new values related to force absorption of the motor will be acquired during exe- cution of the subsequent manoeuvres; Soon – 3... -
Page 4: Basic Parameters
Note – For reasons of safety, when the function is active, the Closure manoeuvre is preceded by a wait time as programmed in the function “pre-flash time”. • mode This parameter is factory set on the mode “always close” The function has 2 operating modes: 4 – Soon... - Page 5 Opening and Closing manoeuvres following installation. This function controls the force with which the control unit intervenes on detection of an obstacle during the deceleration phase of a Closing manoeuvre. The function is only effective if the “obstacle detection” function is enabled (ON). Soon – 5...
- Page 6 This parameter is expressed in seconds and can be set with a value from 0 to 10 seconds; the factory setting is 3 seconds. The function enables programming of the flashing time which indicates the imminent start of a Closing manoeuvre and is associat- ed with the “preflash” function. 6 – Soon...
- Page 7 This parameter type is ON/OFF; the factory setting is “OFF”. The function enables programming of the operating mode of a Bluebus traffic light device. N If the function is active (ON), the traffic light manages traffic in the two directions of travel, alternating the transit permits. In Soon – 7...
-
Page 8: Advanced Parameters
> “opening” > operating mo de...) Opening manoeuvre until the position is reached as set in the function “ope ning”(Con- trol unit functions > installation > po sitions > opening). Input configured as normally open. 8 – Soon... - Page 9 When this command is sent, the control unit is released restoring normal operating status (all commands sent can be performed). Input configured as normally open. Timed Courtesy light This command enables activation of the cour- tesy light on the control unit and that program- Soon – 9...
- Page 10 - ration” > “photo” > operating mo de...) lected manoeuvre type. Input configured as normally closed. Photo 1 Photo 1 Safety function program the required operating mode, se - When this command is sent, the control unit 10 – Soon...
- Page 11 Apartment block 2 step step This executes the sequence “close - stop - open - open” until the maximum opening position is reached. Note – If ano - ther command is sent after this one, the application executes Soon – 11...
- Page 12 2 seconds, the control unit activates a “partial open 1” command (input configuration > Table 1). Hold-to-run Open The Opening manoeuvre is executed exclusively if the trans- mitter key is held down (hold-to-run). 12 – Soon...
- Page 13 Closing manoeuvre for the entire time that the command remains active. Otherwise, when the command is no longer active, the control unit activates the application to perform an Opening manoeuvre. Caution! – During execution of the Opening manoeuvre, this command is ignored. Soon – 13...
- Page 14 Otherwise, when the command is no longer active, the control unit activates the application to perform an Opening manoeuvre. stop When the control unit receives the command, it stops the manoeuvre in progress. 14 – Soon...
- Page 15 (Closing). alt and inversion When the control unit receives the command, it stops the Opening manoeuvre in progress immediately and activates the application to perform a total inversion in the opposite direc- tion (Closing). Soon – 15...
- Page 16 = number of manoeuvres over 100%. flashing light This function enables the flashing light to indicate execution of a manoeuvre in progress with flashes at regular intervals (0.5 sec ON, 0.5 sec OFF). Output active 12 Vdc / max 21 W 16 – Soon...
- Page 17 Output active 24Vdc / max 10 W Soon – 17...
- Page 18 Indicates when the control unit receives a serial command via BusT4 from a radio receiver; these commands range from minimum 1 to maximum 15. BOARD KEYS: no. 1 Indicates when key 1 is pressed (= OPEN) on the control unit. 18 – Soon...
- Page 19 (0%), below which the motor does not function. M1 high overtravel Indicates that the absolute encoder of motor 1 is in a position close to the maximum limit (100%), over which the motor does not function. Soon – 19...
- Page 20 Indicates whether the sensitive edge is present, the relative operating status and the correct memorisation in the control unit. OPEN PHOTO Indicates whether the control photocell is present, the relative oper- ating status and the correct memorisation in the control unit. 20 – Soon...
- Page 21 This function enables the user to check the number of manoeuvres performed by an automation since the last maintenance pro- cedure on the latter. delete maintenance This parameter type is ON / OFF; the factory setting is “OFF”. This function enables deletion of the “partial count” value; this is required after performing maintenance on the automation. Soon – 21...
-
Page 22: Advanced Functions
This function enables the firmware of a control unit to be updated with another compatible version, without the obligation to change the board. To update, proceed as follows: 01. Download the firmware update file (the software update is available at the site internet www.nice-service.com); 02. In “Advanced Functions” select “Update firmware”;...
