Summary of Contents for Nice BiDi-Switch
- Page 1 BiDi-Switch Power switch bidirectional interface EN - Instructions and warnings for installation and use v1.5...
-
Page 2: Warnings And General Precautions

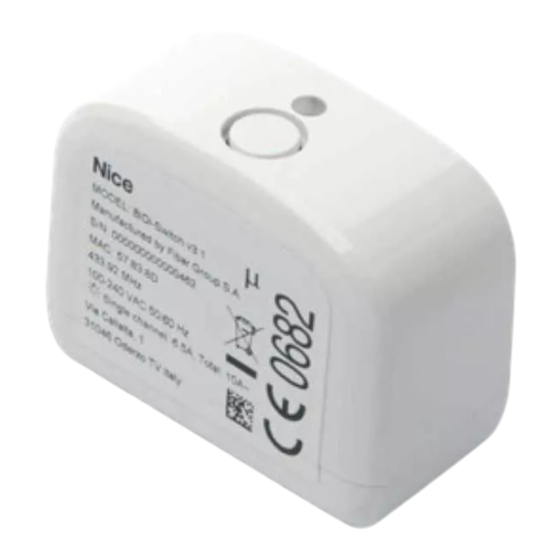

INSTALLATION AND CONFIGURATION The BiDi-Switch control unit enables switching on/off up to 2 mains-powered electric devices. The BiDi-Switch control unit incorporates a radio transceiver operating at the frequency of 433.92 MHz with rolling code technology to guarantee optimal safety levels. -
Page 3: Technical Specifications
Warning All technical specifications stated in this section refer to an ambient temperature of 20 °C (± 5 °C) - Nice S.p.A. reserves the right to modify the product when deemed necessary, while maintaining the same functionalities and intended use. - Page 4 • The BiDi-Switch control unit was designed for insertion in a junction box or wall box; its housing doesn't have any protection against water and only has basic protection against contact with solid parts. Never place the BiDi-Switch in inadequately protected environments.
- Page 5 4.4 - Power supply The electric power supply of the control unit must be connected through terminals L and N (Live, Neutral). The BiDi-Switch control unit can operate with supply voltage of 100 to 240 V and frequency of 50 or 60 Hz.
- Page 6 5.2 - Memorising transmitters in Mode I When there is no transmitter memorised, the first one can be memorised during a startup phase according to the following procedure. Table A4 - BiDi-Switch - Memorising first transmitter during startup in Mode I Nº...
- Page 7 5.4 - Memorising transmitters in Mode II Table A7 - BiDi-Switch - Memorising first and other transmitters in Mode II Nº Description Example Press and hold the programming pushbutton (Figure 1). Release the programming pushbutton (Figure 1) when the LED glows with orange (2 position).
- Page 8 This function allows to automatically turn OFF the connected device when saved time passes from turning it ON. By default, the auto OFF function for both outputs is disabled. To set auto OFF time or disable the function, follow the steps from the table below: Table A9 - BiDi-Switch - Setting auto OFF for output 1 Nº Description Example Press and hold the programming pushbutton (Figure 1).
- Page 9 6.3 - Deleting transmitters If memorised transmitters and settings need to be deleted, follow the steps from the table below: Table A12 - BiDi-Switch - Delete single transmitter from memory Nº Description Example Press and hold the programming pushbutton (Figure 1).
- Page 10 LED SIGNALS 7.1 - Programming menu When pressing and holding the programming pushbutton on the control unit, the LED signals consecutive positions of the programming menu. Table A14 - BiDi-Switch - Menu positions when holding the programming pushbutton Nº Color Description...
-
Page 11: Product Disposal
CAUTION! – local legislation may envisage serious fines in the event of abusive disposal of this product. DECLARATION OF CONFORMITY Nice S.p.A. declares that the radio equipment type BiDi-Switch complies with Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at: http://www.niceforyou.com/en/support... - Page 12 Nice SpA Oderzo TV Italia www.niceforyou.com info@niceforyou.com...
