UniGuard Technology Limited

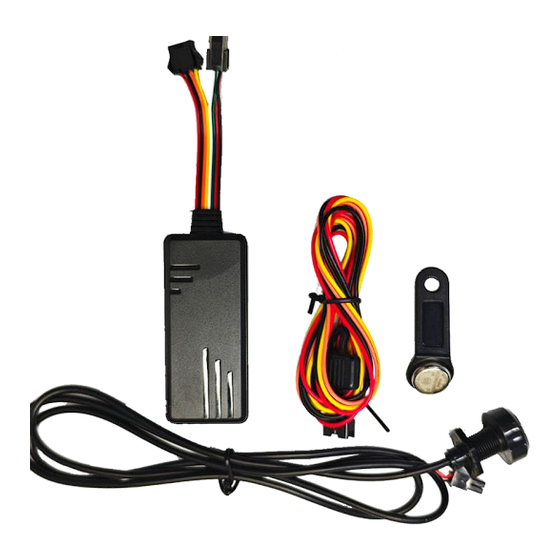

J16/GT06L GPS Tracker
RFID I-button User Manual
(Version V3.3)
Thank you very much for using GPS TRACKER, the user manual will guide how to operate this
product, please read it carefully before using it in order to get the correct method of operation. If
the appearance, color and accessories of this product are modified, please refer to the actual
product. The manufacturer is not liable for faults and omissions which in the user manual.
www.uniguardgps.com
Advertisement
Table of Contents
Related Manuals for UniGuard J16/GT06L
Summary of Contents for UniGuard J16/GT06L
- Page 1 UniGuard Technology Limited J16/GT06L GPS Tracker RFID I-button User Manual (Version V3.3) Thank you very much for using GPS TRACKER, the user manual will guide how to operate this product, please read it carefully before using it in order to get the correct method of operation. If the appearance, color and accessories of this product are modified, please refer to the actual product.
- Page 2 UniGuard Technology Limited ◆ Specifications Item Value Type Placement Windshield Positioning Mode GPS, LBS, AGPS, Real-Time Positioning Track View PC, IOS APP, Android APP,SMS Battery Life(Hour) <12H Warranty 1 year Model Number Chip SIMCOM A7670SA 4G LTE Bands 4G LTE B1/B2/B3/B4/B5/B7/B8/B28/B66...
-
Page 3: Signal Light
UniGuard Technology Limited ◆ Signal Light LED Type LED Status OFF: GSM module abnormal or Sleep GSM Light (Yellow) ON: Device GPRS Online Flashing: Searching Signal OFF: GPS module abnormal or Sleep GPS Light (Blue) ON: Device GPS Located Flashing: Searching GPS signal ◆... - Page 4 UniGuard Technology Limited Shock alarm ON SENALM,ON,M# Send: SENALM,ON,2# M=0, GPRS alarm Reply: SENALM:ON,2 M=1, SMS+GPRS alarm M=2, GPRS+SMS+Call alarm Shock alarm OFF SENALM,OFF# SENALM:OFF Check shock alarm SENALM# SENALM:OFF Tamper alarm ON POWERALM,ON,M,T1,T2# Send: POWERALM,ON,2,10,10,# M=0, GPRS alarm Reply: POWERALM:ON,2,10,10...
-
Page 5: Installation Attentions
UniGuard Technology Limited ◆ I-button Control Function Command Reply Add RFID button RFID,SU,23006B0094EB3A01# RFID,SU,OK Delete RFID button RFID,SD, 23006B0094EB3A01# RFID,SD,OK Clear all RFID data RFID,DL# RFID,DL,OK! Query RFID validity RFID,AL,012EA7750043001D# RFID,AL,012EA7750043001D,VALID RFID,AL,012EA7750043001D,INVALID# Relay Control Relay NO setup RFID,RELAYNO# RFID,RELAYNO,OK Relay NC setup... -
Page 6: Wiring Diagram
UniGuard Technology Limited ◆ Wiring Diagram www.uniguardgps.com... -
Page 7: Web Platform Gps Tracking Software
UniGuard Technology Limited ◆ Web Platform GPS Tracking Software website: www.gpspos.net APP: GPSPOS Search and Download from Google Play and Appstore ◆ Guarantee Card Name Phone Purchase Date IMEI www.uniguardgps.com...
