UniGuard Technology Limited
Mi n i G PS Ve hic le Tr ac ker
Us er Man u al
UM2 06
www.uniguardgps.com
-
1
-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UM206 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for UniGuard UM206

Summary of Contents for UniGuard UM206

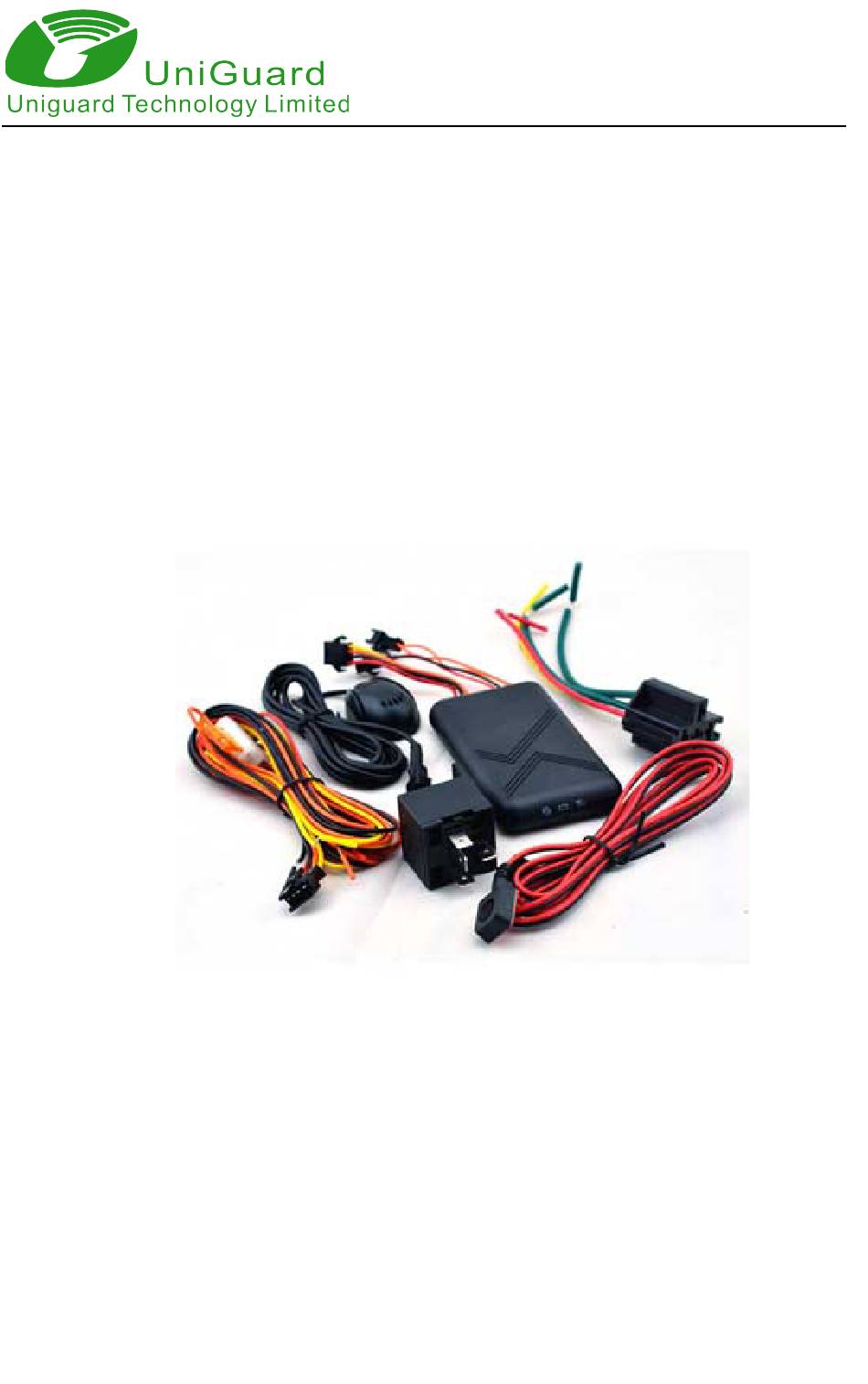

  • Page 1 UniGuard Technology Limited Mi n i G PS Ve hic le Tr ac ker Us er Man u al UM2 06 www.uniguardgps.com...

  • Page 2: Product Instructions

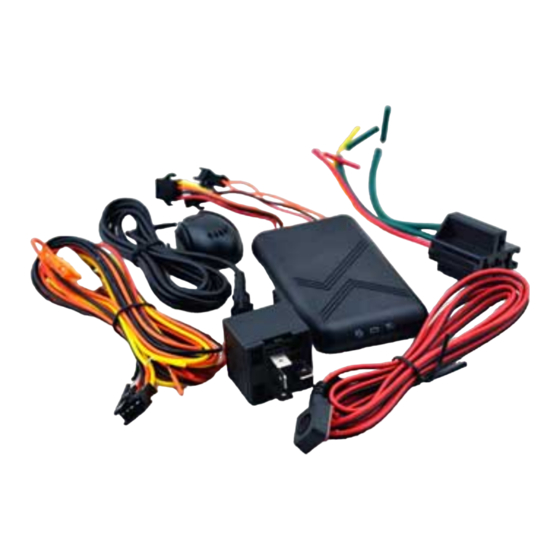

    UniGuard Technology Limited 1 Product Instructions It is a mini GPS Tracker, built-in GPS Antenna and GSM Antenna, Size: 94*45*10mm, Weight: 85g, it can send vehicle location and status to mobile and Internet. It can track the vehicles remotely. Tracker the vehicle on the Internet and Mobile.
  • Page 3 UniGuard Technology Limited 1.1 Interface Item Descriptions Dimension 94*45*10 mm Weight GSM Frequency 850/900/1800/1900Mhz GPS Module Ulbox GPS Sensitivity -159dBm GPS Accuracy Cold start 35-80s Time to first fix Warm start 35s Hot start 1s Working voltage 9-75V Battery Built-in 3.7V 450Ma Li-ion battery Storage Temperature -40°C to +85°C...

  • Page 4: Installation Figure

    UniGuard Technology Limited Status Explanation RED-Power Blink No Turn on Or Low Power GREEN-GSM Initialize GSM Signal Blink GPRS OK GSM Standby Blue-GPS Search GPS Signal Blink GPS OK GPS Not Working 1.2 Installation Figure 1.2.1 Check products to see if there is any accessory missing. Please contact us immediately.
  • Page 5 UniGuard Technology Limited Tips: Don't insert the SIM card up-side-down. Make sure the SIM card with GPRS service. If the SIM card has been inserted, but it requires you to input SIM PIN, please close the SIM PIN function under the instruction of your mobile phone user ’s manual.
  • Page 6 UniGuard Technology Limited 1.2.4 Wiring Diagram www.uniguardgps.com...

  • Page 7: Change Password

    UniGuard Technology Limited 2 SMS Operation Instruction ****** is default password 123456 2.1 Set Admin Number Message format: admin+123456+space+TEL e.g. admin123456 13800000000 Reply: admin ok Delete admin Number Message format: noadmin+123456+space+TEL, e.g. noadmin123456 13800000000, Reply: noadmin ok 2.2 Change Password Message format: password+old+space+new e.g.

  • Page 8: Location Query

    UniGuard Technology Limited e.g. sos123456 13800000000 Reply: sos number ok Delete SOS number Message format: nosos+123456 e.g. nosos123456 Reply: nosos number ok (Press SOS button for 3 secs, SOS alarm will be triggered. SOS alarm has 2 modes: SOSSMS GPS Tracker only sends SMS alarm message SOSCALL GPS Tracker only make calls.

  • Page 9: Movement Alarm

    UniGuard Technology Limited DISARM Message format: 000 Reply: GSM: A/B/C/D. POWER:X. DISARMED! Notes: The GSM signal A is strong, B is good, C is general. D is poor. 2.6 Shock Alarm under ARM state When shock time continues for 3 seconds, GPS Tracker will send Shock Alarm message at every 5 minutes till shock action stops.

  • Page 10: Over Speed Alarm

    UniGuard Technology Limited 2.8 Over Speed Alarm Message format: speed+123456+space+X X =[050-300 (Unit:KM/H) . X=0 Closes over speed alarm. e.g. speed123456 080 Reply: OK! Over Speed Alarm! 80KM/H. When vehicle speed exceeds 80 KM/H, GPS tracker sends out over speed alarm.

  • Page 11: Gprs Settings

    UniGuard Technology Limited 2.11 Sleep Mode Turn On: sleep****** shock e.g sleep123456 shock Reply: Sleep shock OK! When vehicle engine turns off and no shock in 5 minutes, GPS Tracker goes to sleep mode. GPS OFF, LED OFF. Shock or any operation can awake it.

  • Page 12: Set The Ip And Port

    UniGuard Technology Limited REPLY : OK ! APN,CMNET 3.2 Set the IP and Port SMS Command : adminip123456 104.243.132.242 8000 3.3 Set GPRS Interval When there is vibration, GPRS interval command : run,XX When there is no vibration, GPRS interval is fixed 300 secs.
