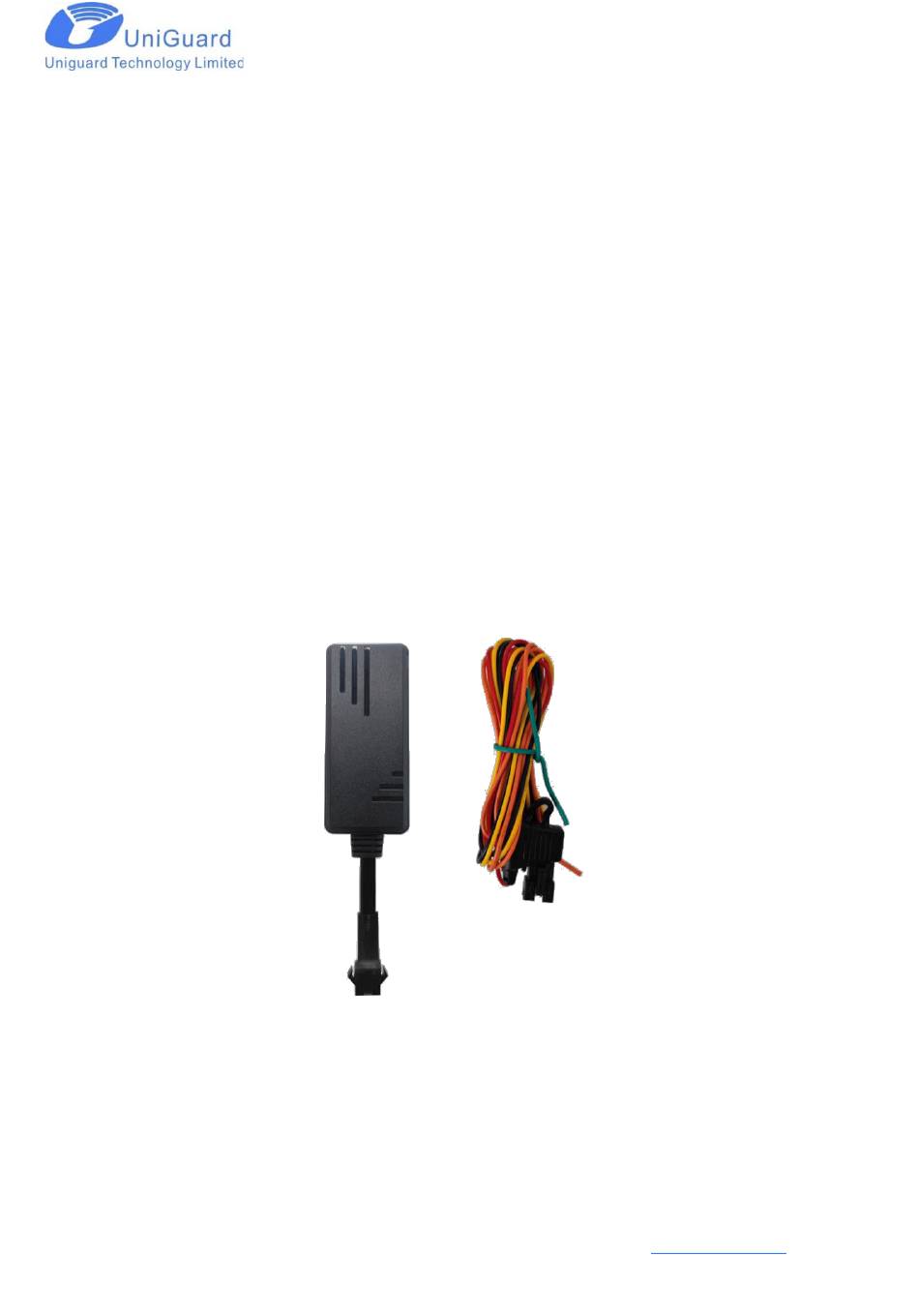

UniGuard Technology Limited
J16/GT06L GPS Tracker
User Manual
(Version V3.1)
Thank you very much for using GPS TRACKER, the user manual will guide how to operate this
product, please read it carefully before using it in order to get the correct method of operation. If
the appearance, color and accessories of this product are modified, please refer to the actual
product. The manufacturer is not liable for faults and omissions which in the user manual.
www.uniguardgps.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for UniGuard J16/GT06L
Summary of Contents for UniGuard J16/GT06L
- Page 1 UniGuard Technology Limited J16/GT06L GPS Tracker User Manual (Version V3.1) Thank you very much for using GPS TRACKER, the user manual will guide how to operate this product, please read it carefully before using it in order to get the correct method of operation. If the appearance, color and accessories of this product are modified, please refer to the actual product.
- Page 2 UniGuard Technology Limited ◆ Specifications Item Value Type Placement Windshield Positioning Mode GPS, LBS, AGPS, Real-Time Positioning Track View PC, IOS APP, Android APP,SMS Battery Life(Hour) <12H Warranty 1 year Model Number Chip SIMCOM A7670SA 4G LTE Bands 4G LTE B1/B2/B3/B4/B5/B7/B8/B28/B66...
-
Page 3: Signal Light
UniGuard Technology Limited ◆ Signal Light LED Type LED Status OFF: GSM module abnormal or Sleep GSM Light (Yellow) ON: Device GPRS Online Flashing: Searching Signal OFF: GPS module abnormal or Sleep GPS Light (Blue) ON: Device GPS Located Flashing: Searching GPS signal ◆... - Page 4 UniGuard Technology Limited Shock alarm ON SENALM,ON,M# Send: SENALM,ON,2# M=0, GPRS alarm Reply: SENALM:ON,2 M=1, SMS+GPRS alarm M=2, GPRS+SMS+Call alarm Shock alarm OFF SENALM,OFF# SENALM:OFF Check shock alarm SENALM# SENALM:OFF Tamper alarm ON POWERALM,ON,M,T1,T2# Send: POWERALM,ON,2,10,10,# M=0, GPRS alarm Reply: POWERALM:ON,2,10,10...
- Page 5 UniGuard Technology Limited ◆ Anti-Jammer SMS Commands (Device with USB port) Function Command Reply Remarks Query Anti-jammer status JAMMER# ACK:JAMMER:ON,1 Turn Off anti-jammer JAMMER,OFF# ACK:JAMMER:OFF OK Turn ON anti-jammer JAMMER,A,M# ACK:JAMMER,ON,1 OK A= ON/OFF M=0-2 JAMMER,ON,1# 0 GPRS 1 GPRS+SMS...
- Page 6 UniGuard Technology Limited Pair BLE relay BTRLY,BTMAC,MAC1# E.G.: BTRLY,BTMAC,32:32:02:00:79:5A# BTRLY,BTMAC,MAC1,MAC2# MAC is composed of AA:BB:CC:DD:EE:FF BTRLY,RELAY,ON# 1st BLE Relay (default) BLE relay control BTRLY,RELAY,OFF# (max BTRLY,RELAY,ON,2# BLE relay relays) BRTLY,RELAY,OFF,2# BTRLY,RELAY,ON,3# BLE relay BRTLY,RELAY,OFF,3# Query BLE relay BTRLY,STATUS# MCUVER:0.06 BTFlow:12,Route:3...
-
Page 7: Installation Attentions
UniGuard Technology Limited ◆ Installation Attentions Metal shall shield or weaken GPS signal. Avoid metal area while doing installation. ◆ Wiring Diagram www.uniguardgps.com... -
Page 8: Web Platform Gps Tracking Software
UniGuard Technology Limited ◆ Web Platform GPS Tracking Software website: www.gpspos.net APP: GPSPOS Search and Download from Google Play and Appstore ◆ Guarantee Card Name Phone Purchase Date IMEI www.uniguardgps.com...
